Torque Specifications

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Valve Cover Bolt Or Nut

Camry & Celica

33 (45)

Corolla

⁽¹⁾*

RAV4

33 (45)

Tacoma, T100 & 4Runner

⁽²⁾*

Tercel

⁽³⁾*

Throttle Body Bolt/Nut: T100

15 (20)

INCH Lbs. (N.m)

Ignition Coil Bolt: Tercel

75 (8.5)

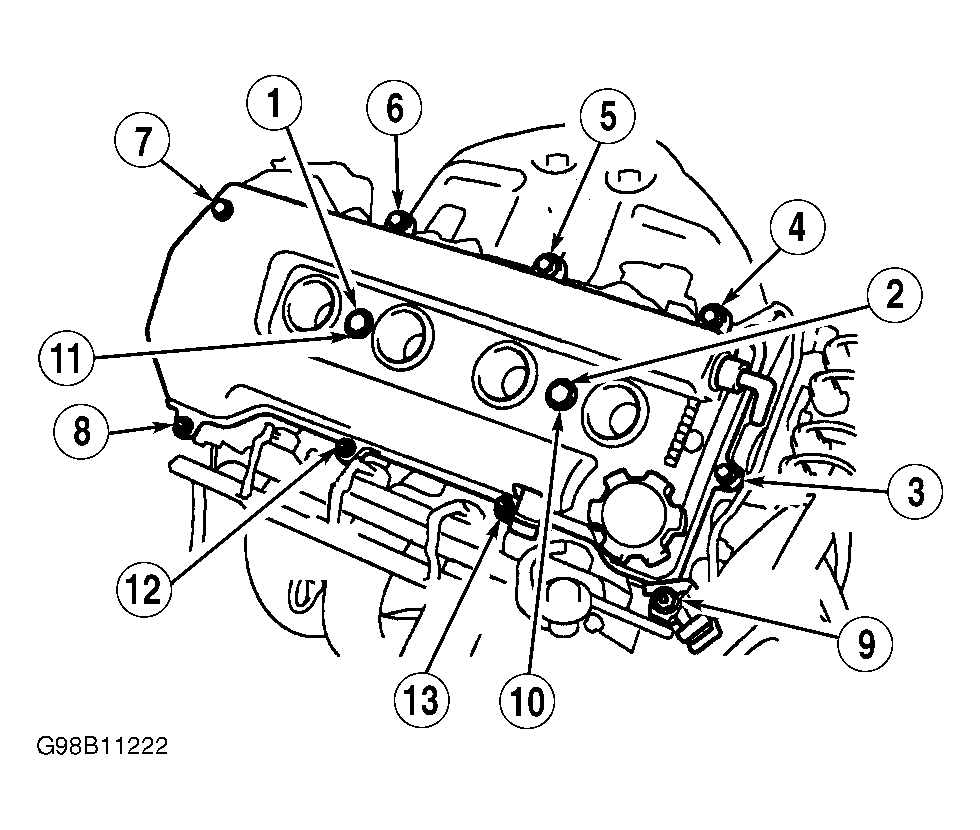

⁽¹⁾	Tighten bolts/nuts with washer to 80 INCH lbs. (9.0 N.m). Tighten bolts/nuts without washer to 97 INCH lbs. (11.0 N.m). Tighten bolts/nuts to specification in sequence. See Figure.

⁽²⁾	Information is not available from manufacturer.

⁽³⁾	Tighten nuts to 62 INCH lbs. (7.0 N.m).
