1999 Camry

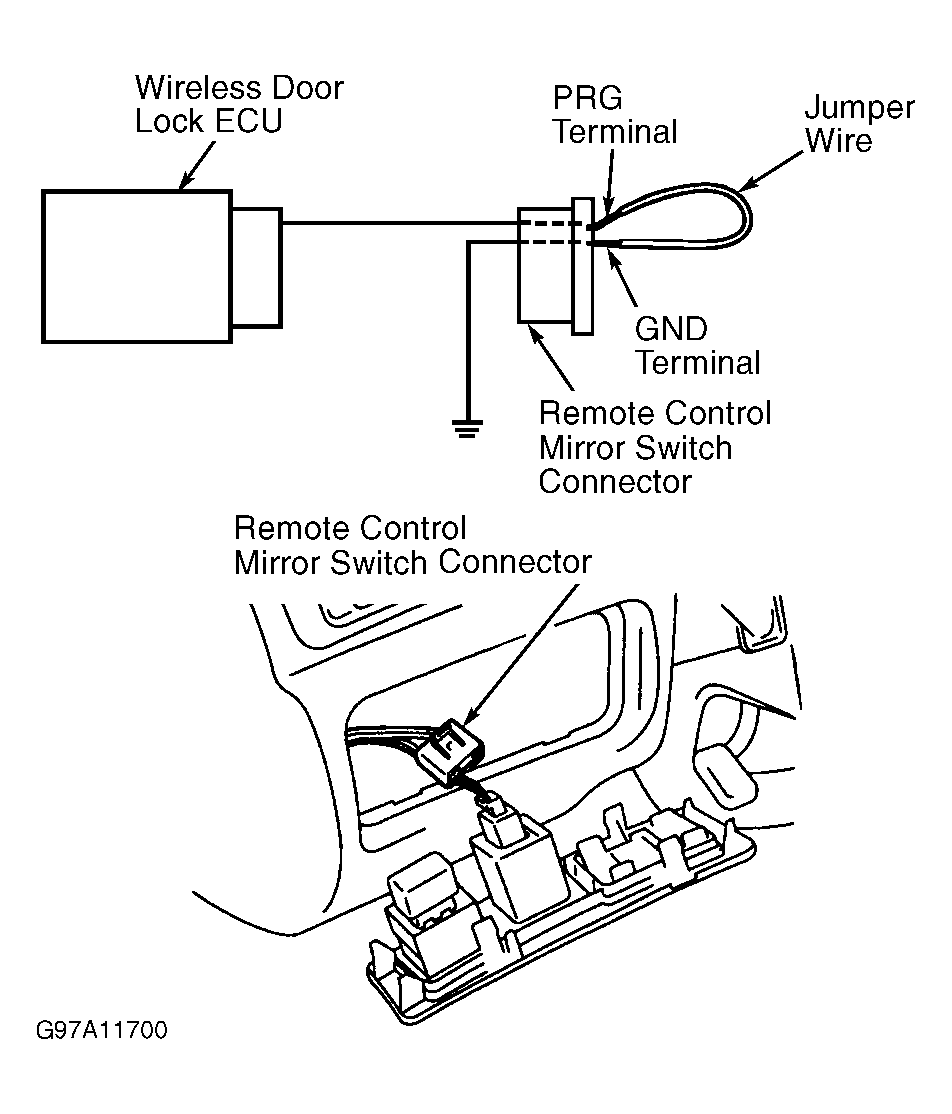

- Locate wireless door lock ECU below radio. See Figure. Remove remote control mirror switch connector (attached to bottom of wireless door lock ECU). Using a jumper wire, connect remote control mirror switch PRG and GND terminals. See Figure. All doors should lock and unlock. Depress any single button on No. 1 transmitter and all doors should lock and unlock.
- Program No. 2 transmitter by repeating step 1. When programming is complete, remove jumper wire from remote control mirror switch PRG and GND terminals. Operate transmitters to ensure proper programming.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
