Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

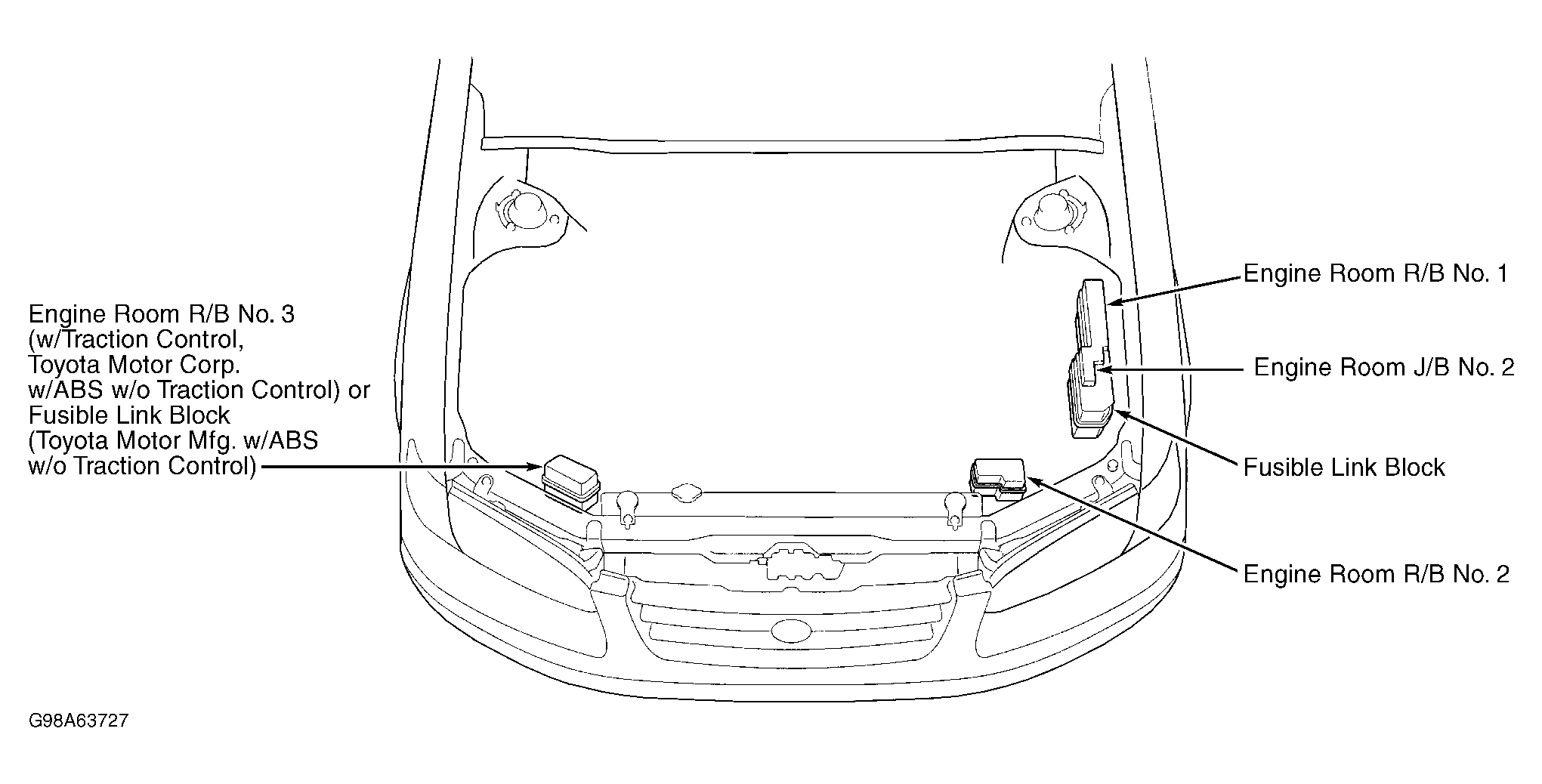

| Engine Room J/B No. 2 | On left side of engine compartment. See Figure. |
| Engine Room R/B No. 1 | On left side of engine compartment. See Figure. |
| Engine Room R/B No. 2 | On left side of engine compartment. See Figure. |
| Engine Room R/B No. 3 (W/ Traction Control, Toyota Motor Corp. W/ ABS W/O Traction Control) | On right front of engine compartment. See Figure. |
| Fusible Link Block | On left side of engine compartment. See Figure. |
| Fusible Link Block (Toyota Motor Mfg. W/ ABS W/O Traction Control) | On right front of engine compartment. See Figure. |
| Instrument Panel J/B | Behind dash, left of steering column. See Figure. |
