Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

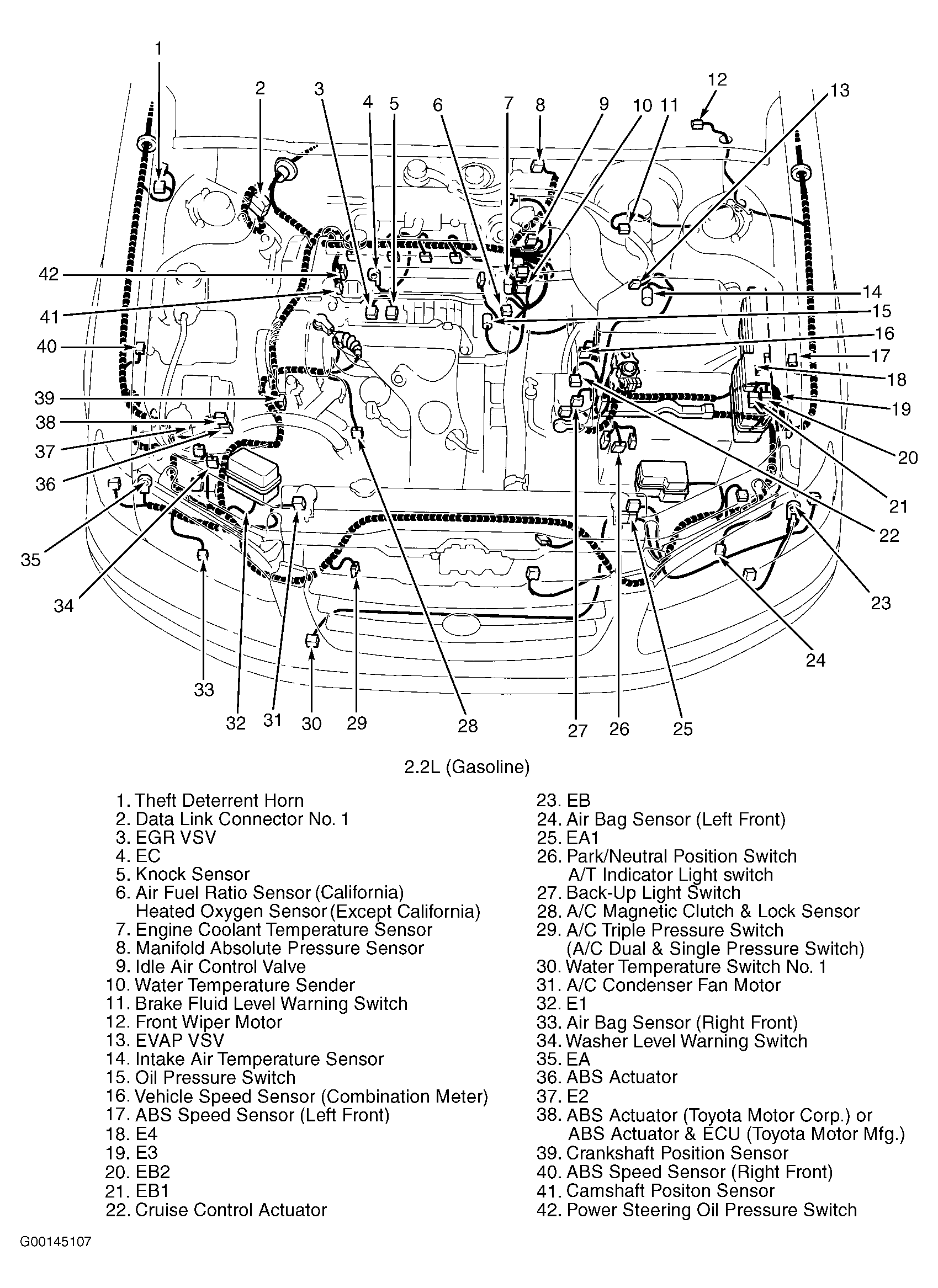

Fig 1: Engine Compartment (2.2L Gasoline)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

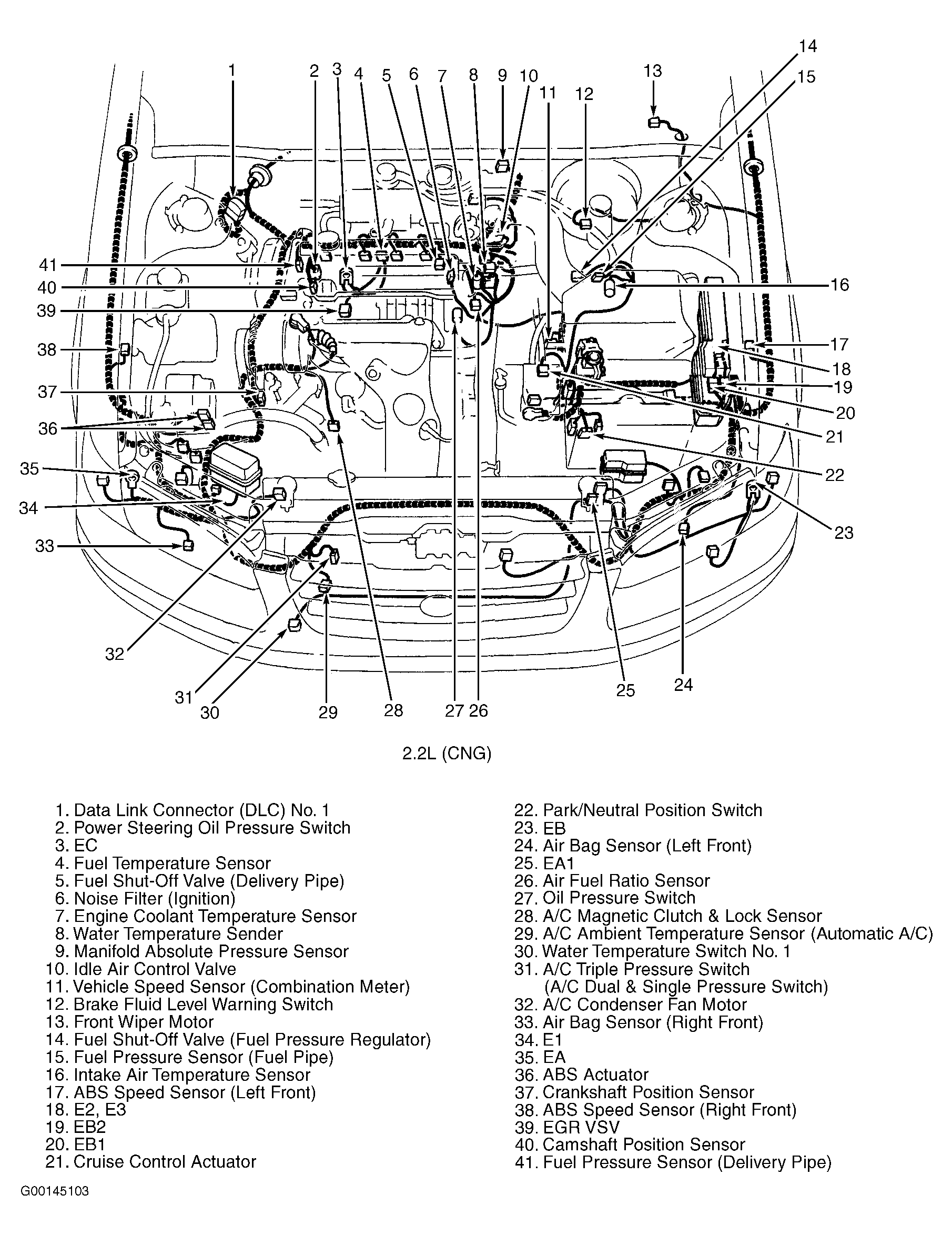

Fig 2: Engine Compartment (2.2L CNG)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

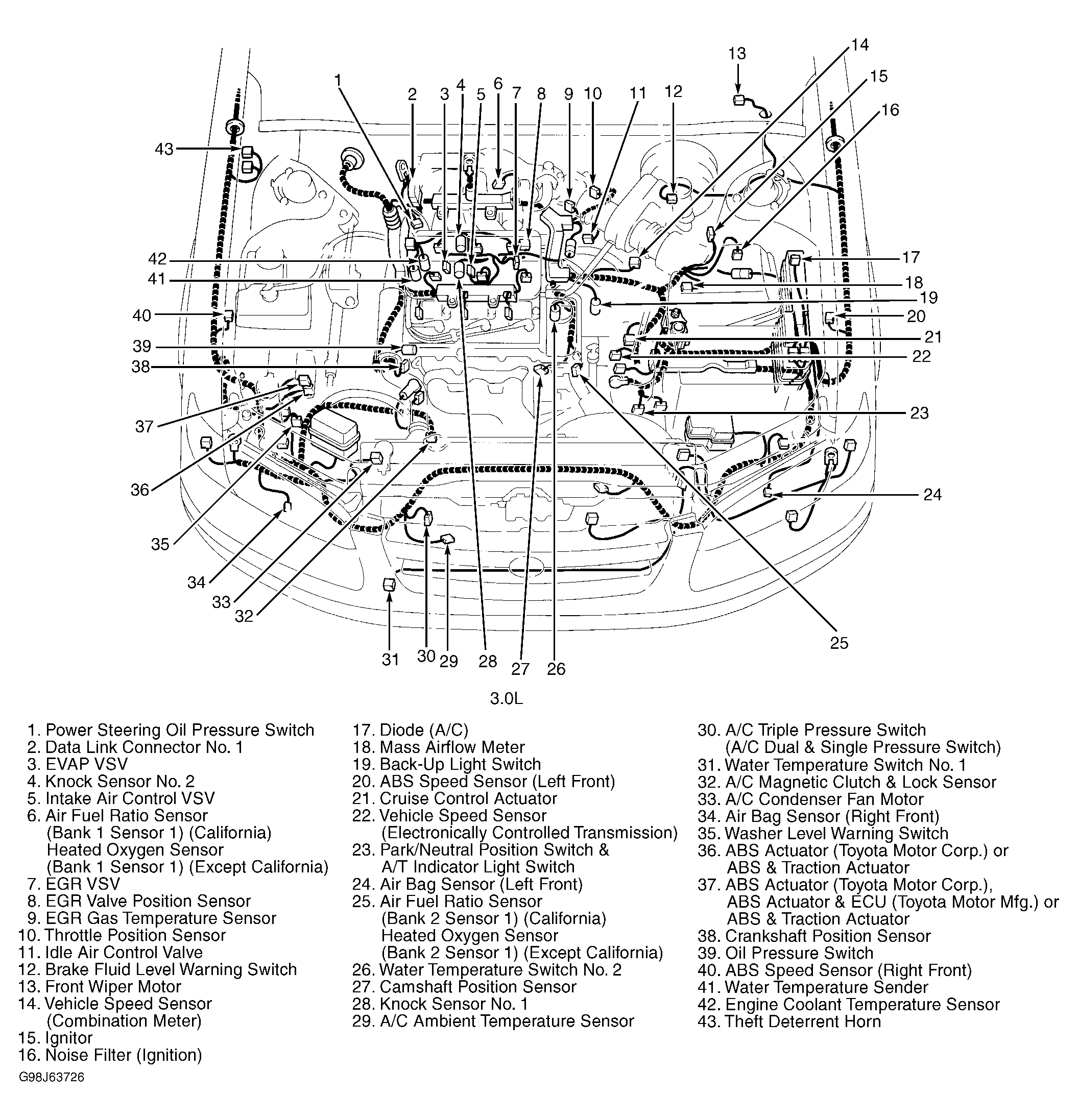

Fig 3: Engine Compartment (3.0L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

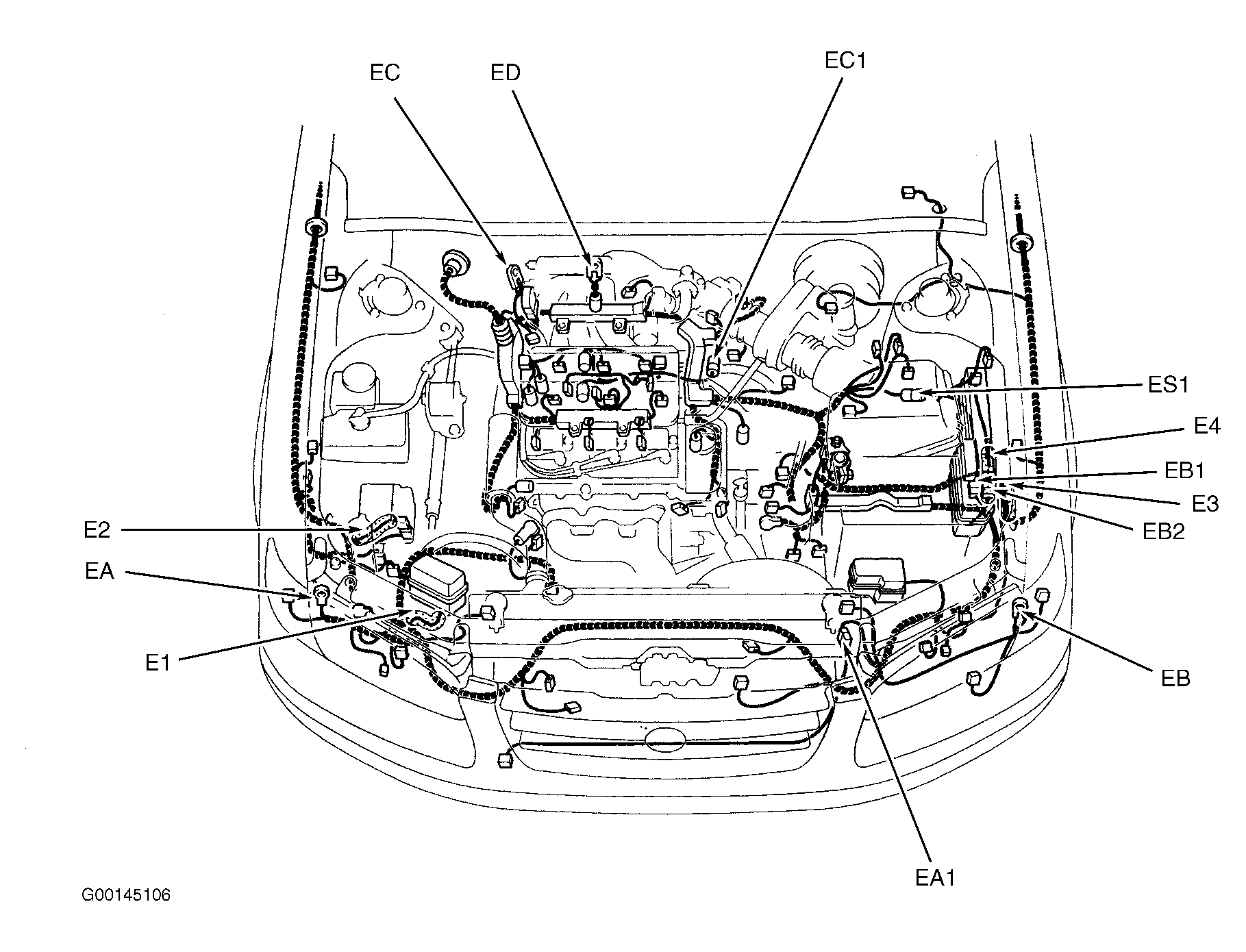

Fig 4: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Dash

Fig 6: Vehicle Overview

Fig 7: Engine Compartment (3.0L)
