Power Mirror Switch

NOTE: Mirror motor connectors may vary in configuration from vehicle to vehicle of the same model.

Remove power mirror switch. Using ohmmeter, check continuity between appropriate mirror switch terminals. Continuity should exist between specified terminals. See appropriate POWER MIRROR SWITCH CONTINUITY TEST table. See Fig 1-Fig 27 . If switch fails any test, replace switch.

POWER MIRROR SWITCH CONTINUITY TEST (AVALON WITHOUT MEMORY)

Application

⁽¹⁾ Terminals No.

Switch In Left Position

3 & 4; 7 & 8

Down

3 & 8; 4 & 7

Left

4 & 9; 7 & 8

Right

4 & 7; 8 & 9

Switch In Right Position

2 & 4; 7 & 8

Down

2 & 8; 4 & 7

Left

4 & 10; 7 & 8

Right

4 & 7; 8 & 10

⁽¹⁾	Continuity should exist between specified terminals. See Fig 1-Fig 3 .

POWER MIRROR SWITCH CONTINUITY TEST (AVALON WITH MEMORY)

Application

Terminals No. ⁽¹⁾

Resistance

Left

8 & 9

100

Right

8 & 9

Illumination

5 & 6

Continuity

⁽¹⁾	Check resistance between appropriate terminals. See Fig 1 and Fig 4 .

MIRROR SWITCH RESISTANCE (AVALON WITH MEMORY)

Switch Position

⁽¹⁾ Resistance (Ohms)

100

RIGHT

250

DOWN

470

LEFT

800

⁽¹⁾	Measure resistance between terminals No. 7 and 9 at mirror switch. See Fig 1 and Fig 4 .

MIRROR SWITCH CIRCUITS (AVALON)

Check Between Ground & Terminal No. ⁽¹⁾

Condition

Specified Condition

At All Times

Continuity

Ignition Switch At Lock Position

No Voltage

Ignition Switch In ACC or RUN Position

Battery Voltage

⁽¹⁾	For harness connector identification, refer to illustration. See Fig 1.

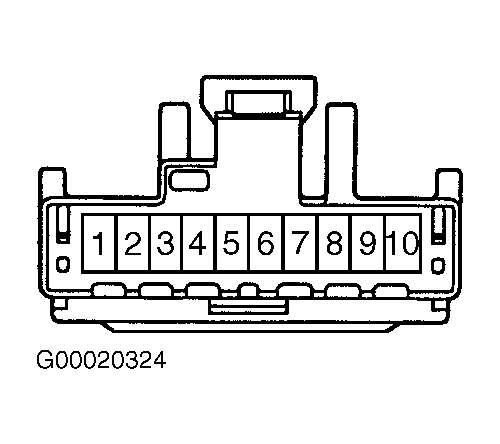

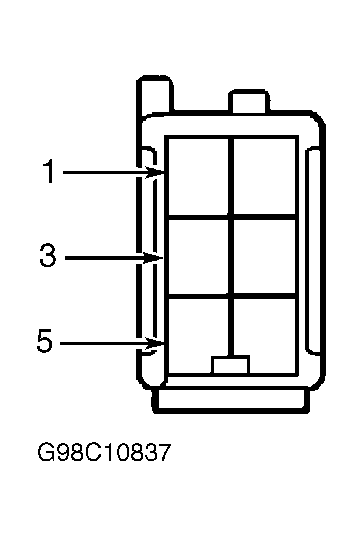

Fig 1: Identifying Power Mirror Switch Harness Connector Terminals (Avalon)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

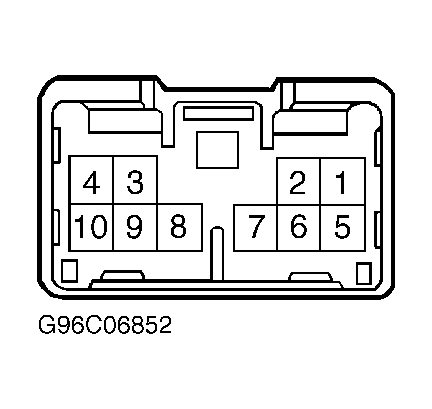

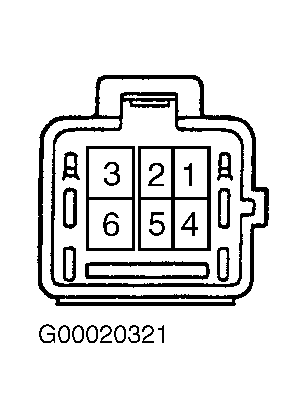

Fig 2: Identifying Power Mirror Motor Harness Connector Terminals (Avalon Without Driving Position Memory - Without Mirror Heater)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

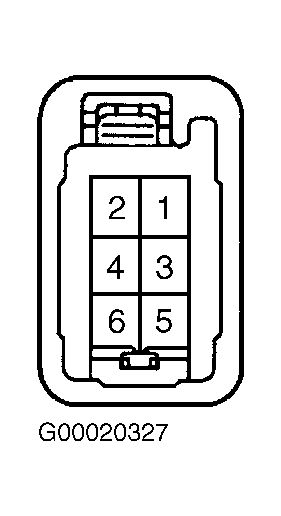

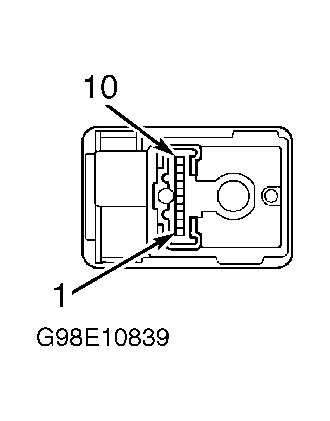

Fig 3: Identifying Power Mirror Switch Harness Connector Terminals (Avalon Without Driving Position Memory - With Mirror Heater)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

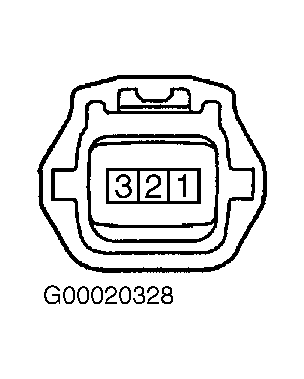

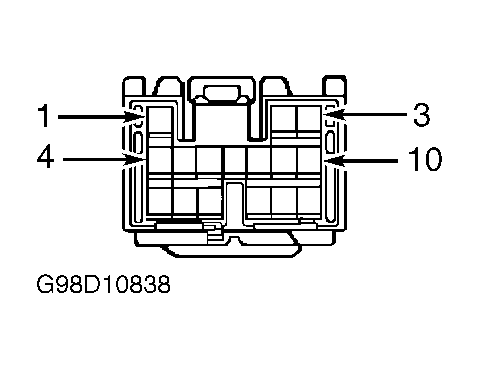

Fig 4: Identifying Power Mirror Harness Connector Terminals (Avalon With Driving Position Memory)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER MIRROR SWITCH CONTINUITY TEST (CAMRY & CAMRY SOLARA)

Application

⁽¹⁾ Terminals No.

Switch In Left Position

1 & 9; 6 & 10

Down

1 & 10; 6 & 9

Left

5 & 9; 6 & 10

Right

5 & 10; 6 & 9

Switch In Right Position

6 & 10; 7 & 9

Down

6 & 9; 7 & 10

Left

6 & 10; 8 & 9

Right

6 & 9; 8 & 10

⁽¹⁾	Continuity should exist between specified terminals. See Fig 5-Fig 9 .

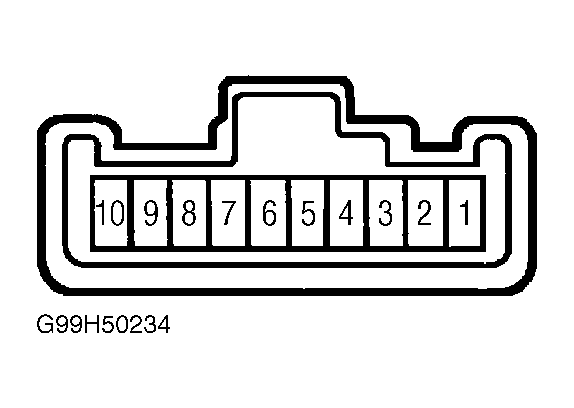

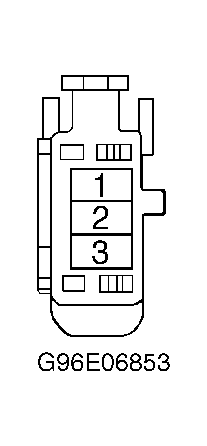

Fig 5: Identifying Power Mirror Switch Harness Connector Terminals (Camry & Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

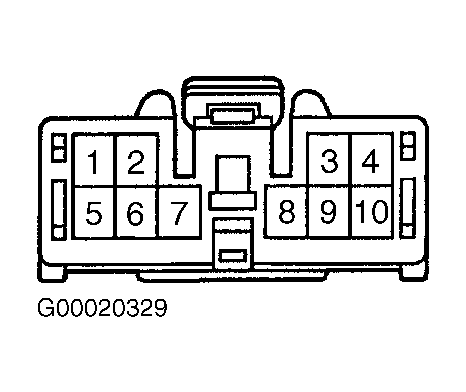

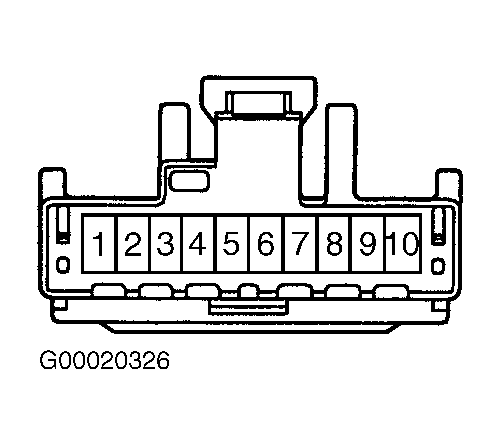

Fig 6: Identifying Power Mirror Motor Harness Connector Terminals (Camry - Japan Built - Without Mirror Heater)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

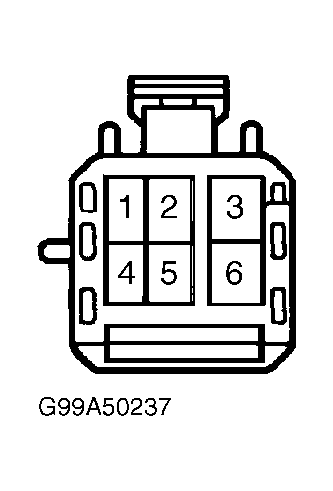

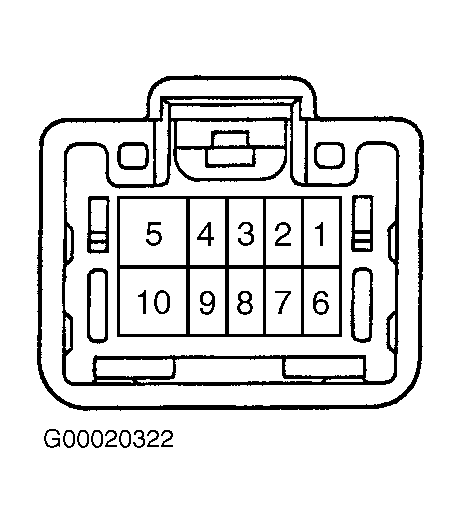

Fig 7: Identifying Power Mirror Motor Harness Connector Terminals (Camry - USA Built - Without Mirror Heater)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

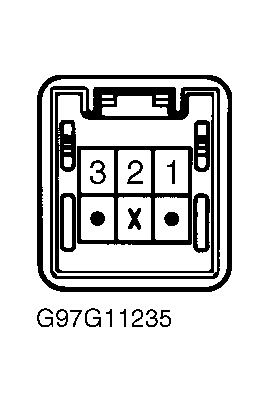

Fig 8: Identifying Power Mirror Motor Harness Connector Terminals (Camry - USA built - With Mirror Heater)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Power Mirror Motor Harness Connector Terminals (Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER MIRROR SWITCH CONTINUITY TEST (CELICA)

Application

⁽¹⁾ Terminals No.

Switch In Left Position

4 & 8; 6 & 7

Down

4 & 7; 6 & 8

Left

5 & 8; 6 & 7

Right

5 & 7; 6 & 8

Switch In Right Position

3 & 8; 6 & 7

Down

3 & 7; 6 & 8

Left

2 & 8; 6 & 7

Right

2 & 7; 6 & 8

⁽¹⁾	Continuity should exist between specified terminals. See Fig 10 and Fig 11 .

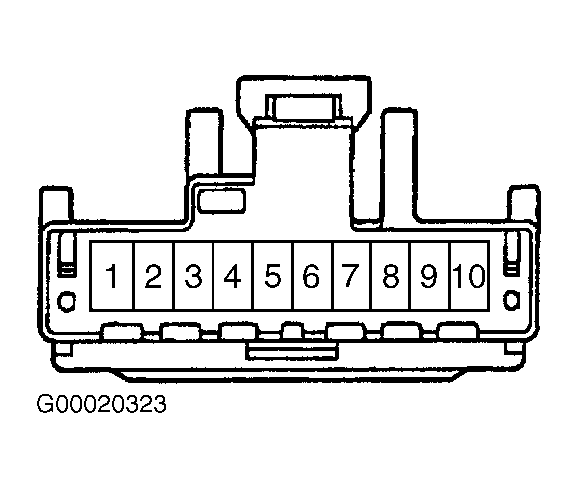

Fig 10: Identifying Power Mirror Switch Harness Connectors (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

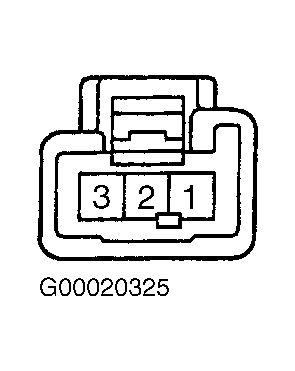

Fig 11: Identifying Power Mirror Switch Harness Connectors (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER MIRROR SWITCH CONTINUITY TEST (COROLLA)

Application

⁽¹⁾ Terminals No.

Switch In Left Position

1 & 9; 6 & 10

Down

1 & 10; 6 & 9

Left

5 & 9; 6 & 10

Right

5 & 10; 6 & 9

Switch In Right Position

6 & 10; 7 & 9

Down

6 & 9; 7 & 10

Left

6 & 10; 8 & 9

Right

6 & 9; 8 & 10

⁽¹⁾	Continuity should exist between specified terminals. See Fig 12-Fig 13 .

Fig 12: Power Mirror Switch Harness Connector Terminals (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

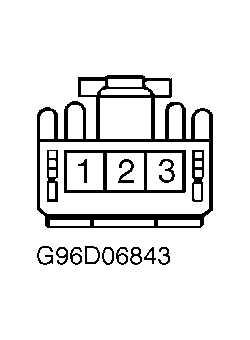

Fig 13: Power Mirror Motor Harness Connector Terminals (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER MIRROR SWITCH CONTINUITY TEST (LAND CRUISER)

Application

⁽¹⁾ Terminals No.

Switch In Left Position

3 & 4; 7 & 8

Down

3 & 8; 4 & 7

Left

4 & 9; 7 & 8

Right

4 & 7; 8 & 9

Switch In Right Position

2 & 4; 1, 7 & 8

Down

4 & 7; 1, 2 & 8

Left

4 & 10; 1, 7 & 8

Right

4 & 7; 1, 8 & 10

⁽¹⁾	Continuity should exist between specified terminals. See Fig 14-Fig 15 .

Fig 14: Power Mirror Switch Harness Connector Terminals (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

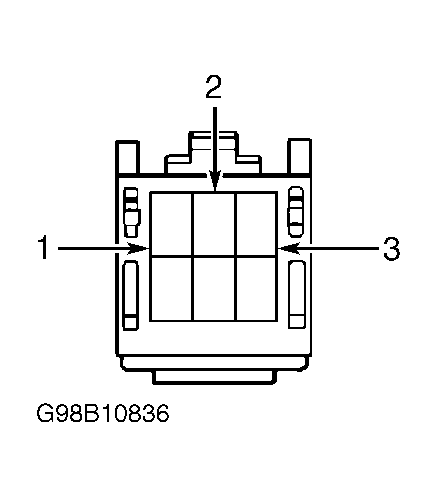

Fig 15: Power Mirror Motor Harness Connector Terminals (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER MIRROR SWITCH CONTINUITY TEST (MR2)

Application

⁽¹⁾ Terminals No.

Switch In Left Position

4 & 8; 6 & 7

Down

4 & 7; 6 & 8

Left

5 & 8; 6 & 7

Right

5 & 7; 6 & 8

Switch In Right Position

3 & 8; 6 & 7

Down

3 & 7; 6 & 8

Left

2 & 8; 6 & 7

Right

2 & 7; 6 & 8

⁽¹⁾	Continuity should exist between specified terminals. See Fig 16 Fig 17 .

Fig 16: Identifying Power Mirror Switch Harness Connector Terminals (MR2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Identifying Power Mirror Motor Harness Connector Terminals (MR2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER MIRROR SWITCH CONTINUITY TEST (RAV4)

Application

⁽¹⁾ Terminals No.

Switch In Left Position

1 & 9; 6 & 10

Down

1 & 10; 6 & 9

Left

5 & 9; 6 & 10

Right

5 & 10; 6 & 9

Switch In Right Position

6 & 10; 7 & 9

Down

6 & 9; 7 & 10

Left

6 & 10; 8 & 9

Right

6 & 9; 8 & 10

⁽¹⁾	Continuity should exist between specified terminals. See Fig 18-Fig 19 .

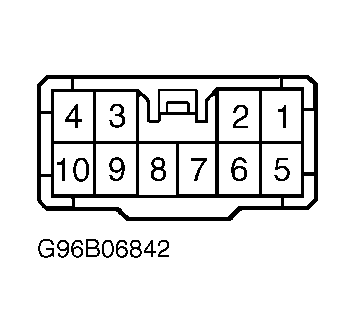

Fig 18: Identifying Power Mirror Switch Harness Connector Terminals (RAV4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

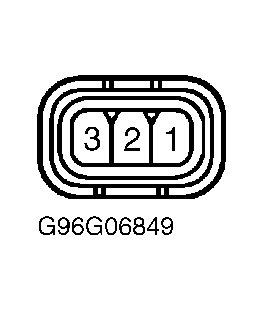

Fig 19: Identifying Power Mirror Motor Harness Connector Terminals (RAV4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER MIRROR SWITCH CONTINUITY TEST (SIENNA)

Application

⁽¹⁾ Terminals No.

Switch In Left Position

1 & 9; 6 & 10

Down

1 & 10; 6 & 9

Left

5 & 9; 6 & 10

Right

5 & 10; 6 & 9

Switch In Right Position

6 & 10; 7 & 9

Down

6 & 9; 7 & 10

Left

6 & 10; 8 & 9

Right

6 & 9; 8 & 10

⁽¹⁾	Continuity should exist between specified terminals. See Fig 20-Fig 22 .

Fig 20: Identifying Power Mirror Switch Harness Connector Terminals (Sienna)

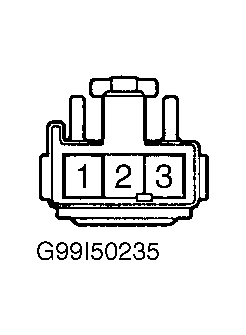

Fig 21: Identifying Power Mirror Motor Harness Connector Terminals (Sienna - Without Mirror Heater)

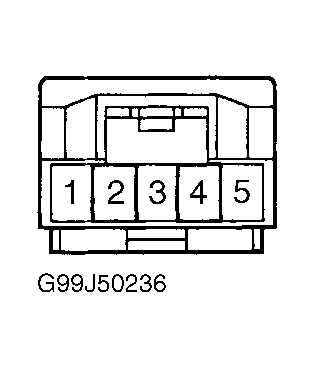

Fig 22: Identifying Power Mirror Motor Harness Connector Terminals (Sienna - With Mirror Heater)

POWER MIRROR SWITCH CONTINUITY TEST (TACOMA)

Application

⁽¹⁾ Terminals No.

Switch In Left Position

1 & 9; 6 & 10

Down

1 & 10; 6 & 9

Left

5 & 9; 6 & 10

Right

5 & 10; 6 & 9

Switch In Right Position

6 & 10; 7 & 9

Down

6 & 9; 7 & 10

Left

6 & 10; 8 & 9

Right

6 & 9; 8 & 10

⁽¹⁾	Continuity should exist between specified terminals. See Fig 23-Fig 24 .

Fig 23: Identifying Power Window Switch Harness Connector Terminals (Tacoma)

Fig 24: Identifying Power Window Motor Harness Connector Terminals (Tacoma)

POWER MIRROR SWITCH CONTINUITY TEST (TUNDRA)

Application

⁽¹⁾ Terminals No.

Switch In Left Position

4 & 8; 6 & 7

Down

4 & 7; 6 & 8

Left

5 & 8; 6 & 7

Right

5 & 7; 6 & 8

Switch In Right Position

3 & 8; 6 & 7

Down

3 & 7; 6 & 8

Left

5 & 8; 6 & 7

Right

5 & 7; 6 & 8

⁽¹⁾	Continuity should exist between specified terminals. See Fig 25-Fig 26 .

Fig 25: Identifying Power Mirror Switch Harness Connector Terminals (Tundra)

Fig 26: Identifying Power Mirror Motor Harness Connector Terminals (Tundra)

POWER MIRROR SWITCH CONTINUITY TEST (4RUNNER)

Application

⁽¹⁾ Terminals No.

Switch In Left Position

1 & 9; 6 & 10

Down

1 & 10; 6 & 9

Left

5 & 9; 6 & 10

Right

5 & 10; 6 & 9

Switch In Right Position

6 & 10; 7 & 9

Down

6 & 9; 7 & 10

Left

6 & 10; 8 & 9

Right

6 & 9; 8 & 10

⁽¹⁾	Continuity should exist between specified terminals. See Fig 27-Fig 28 .

Fig 27: Power Mirror Switch Harness Connector Terminals (4Runner)

Fig 28: Power Mirror Motor Harness Connector Terminals (4Runner)
