Stoplight Switch

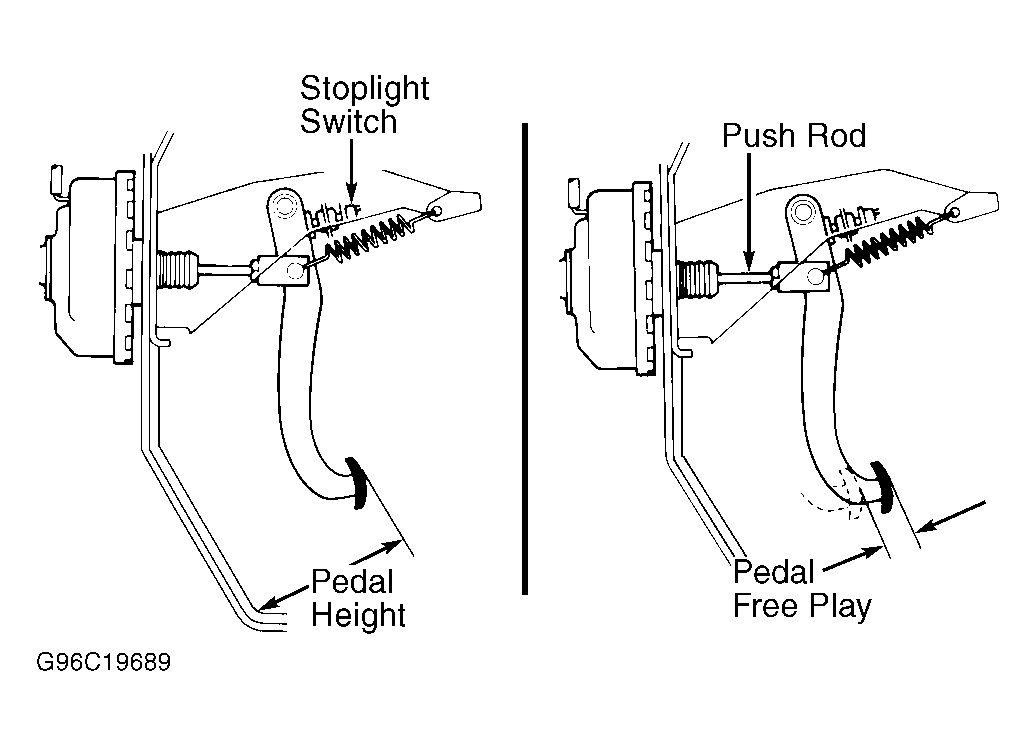

Stoplight switch is located above brake pedal. See Figure. To adjust stoplight switch, remove instrument panel lower finish panel. Loosen stoplight switch lock nut. Turn stoplight switch until clearance between switch and brake pedal stop is .02-.09" (.5-2.4 mm). Tighten lock nut. Check stoplight operation. Check brake pedal free play, see BRAKE PEDAL FREE PLAY .
