Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

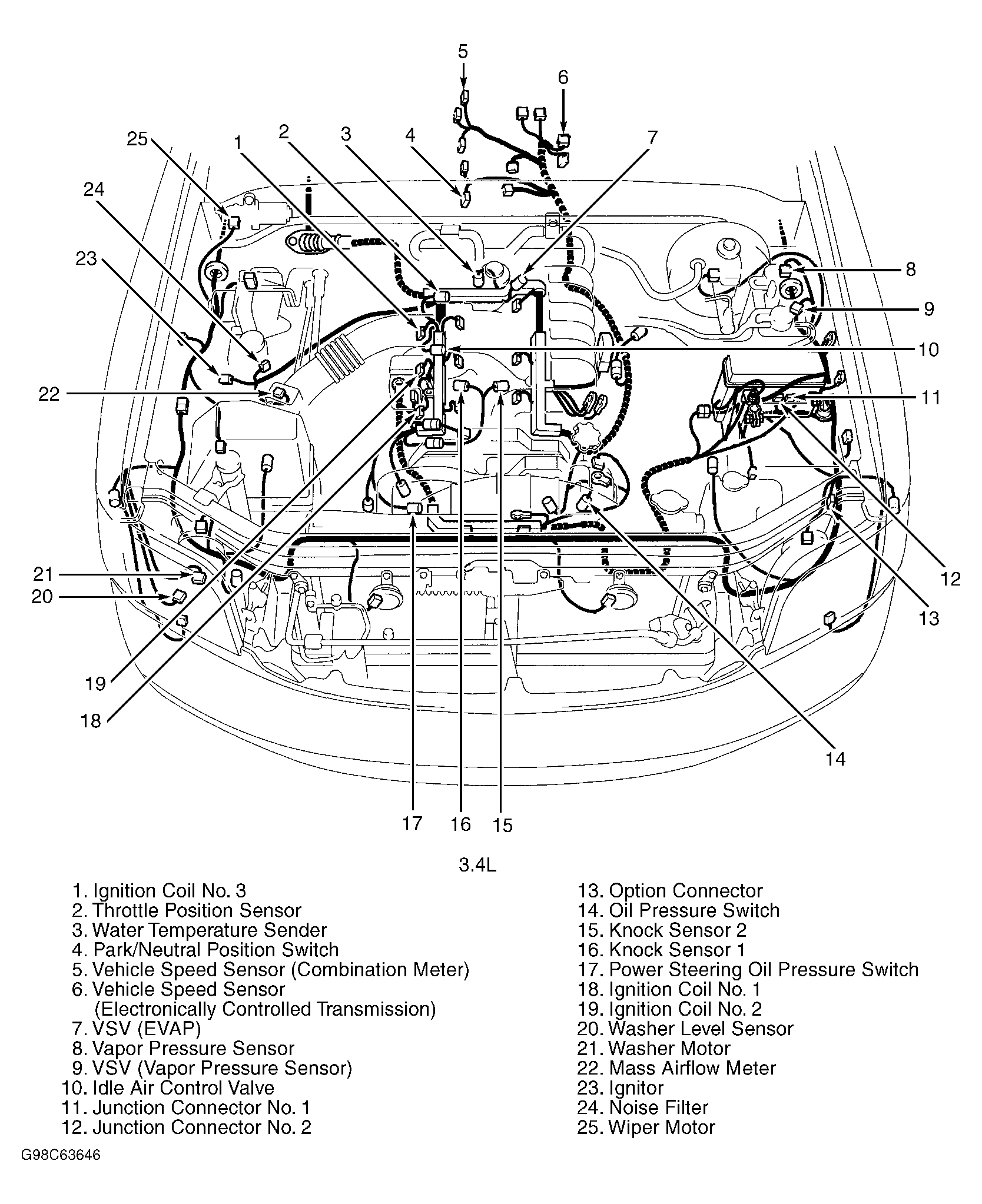

Fig 1: Engine Compartment (3.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Compartment (3.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

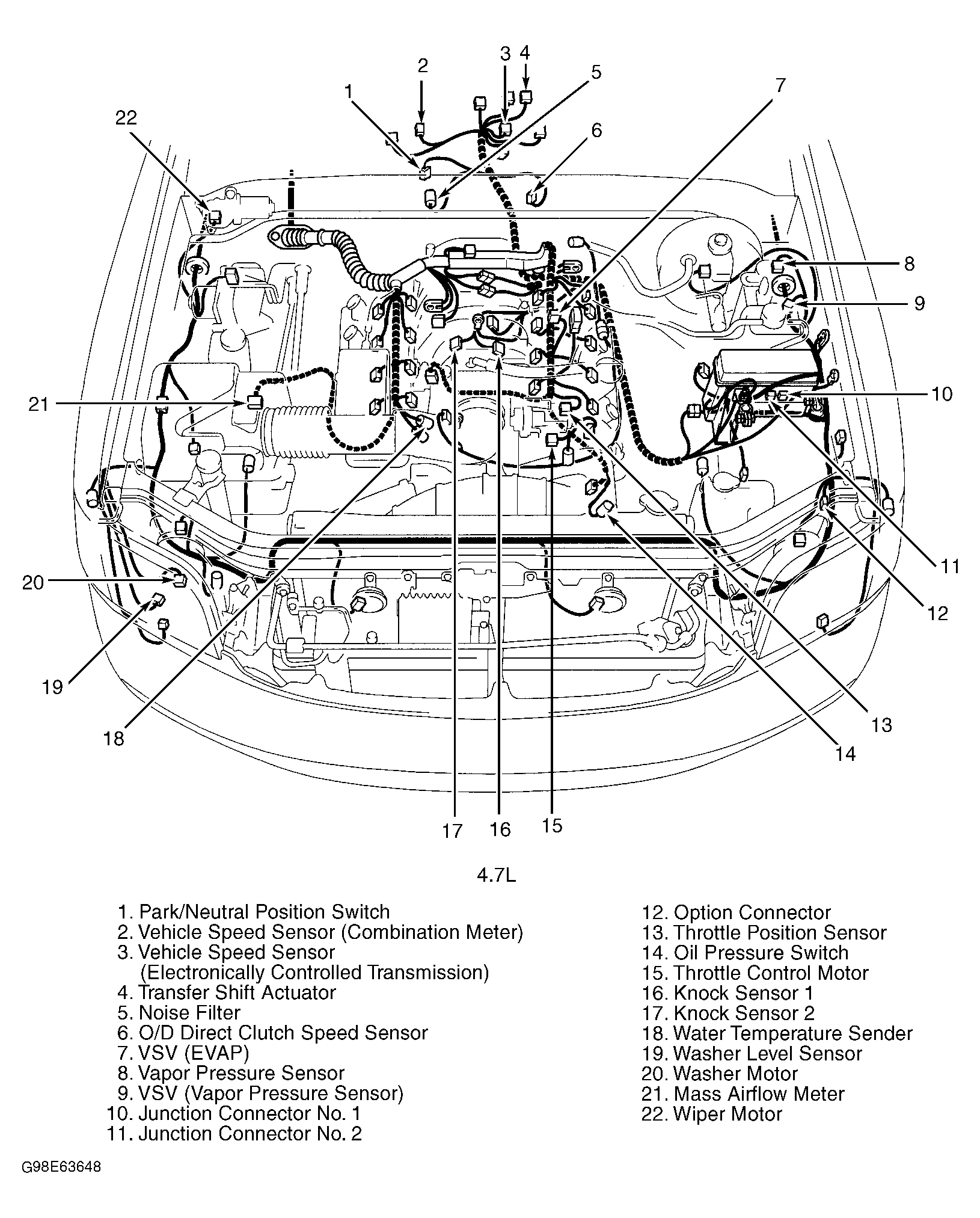

Fig 3: Engine Compartment (4.7L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Compartment (4.7L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

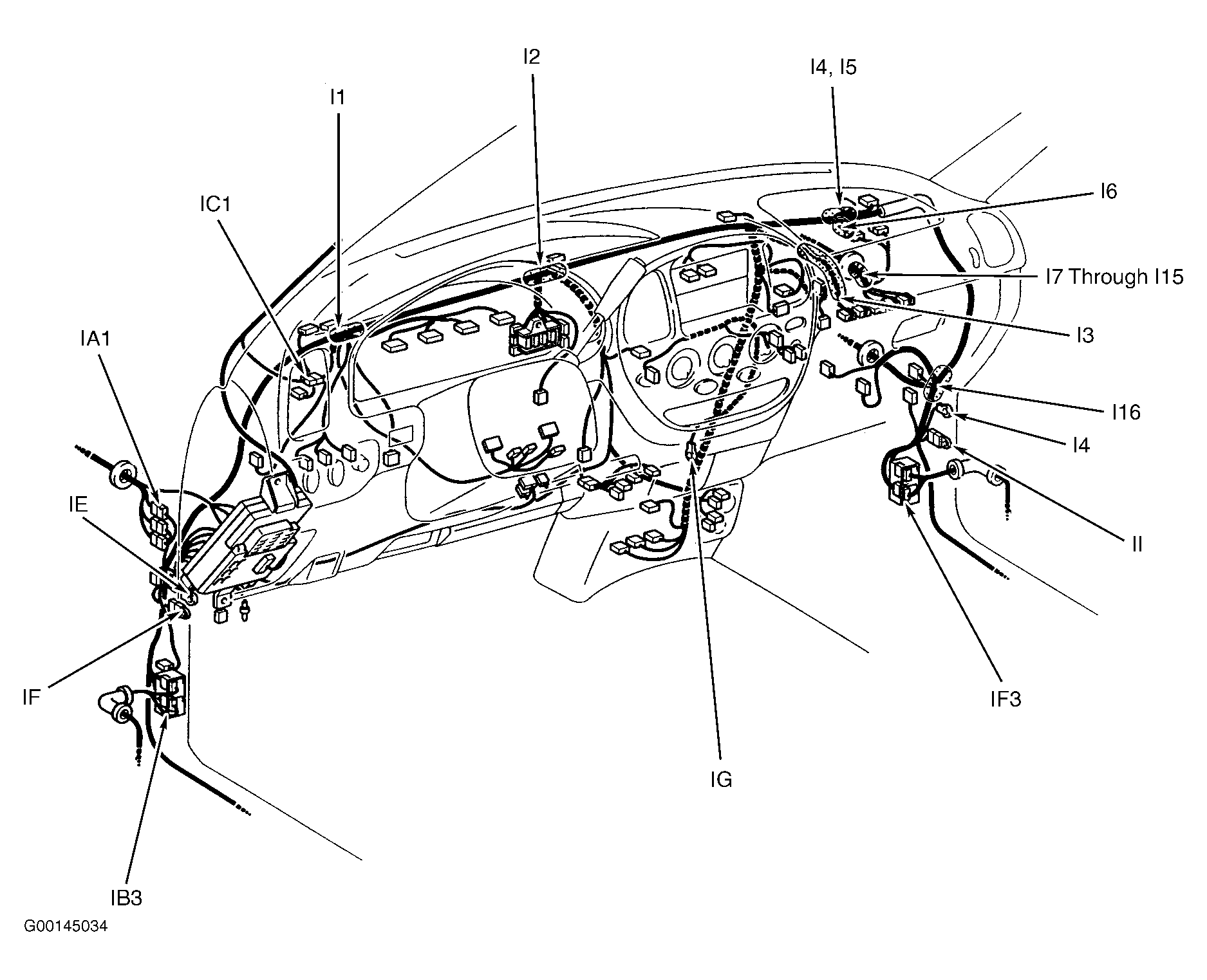

Fig 6: Dash

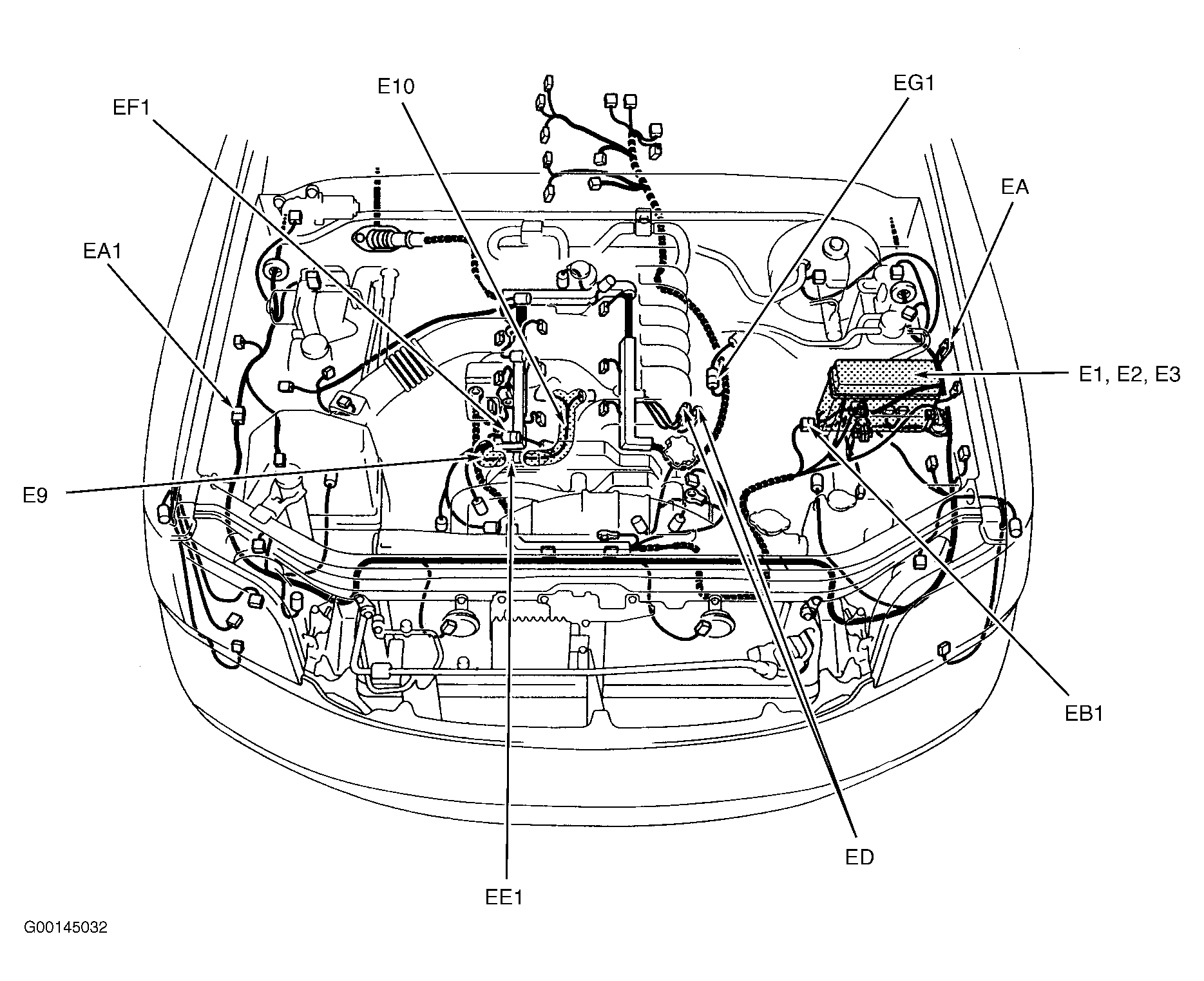

Fig 7: Engine Compartment (3.4L)

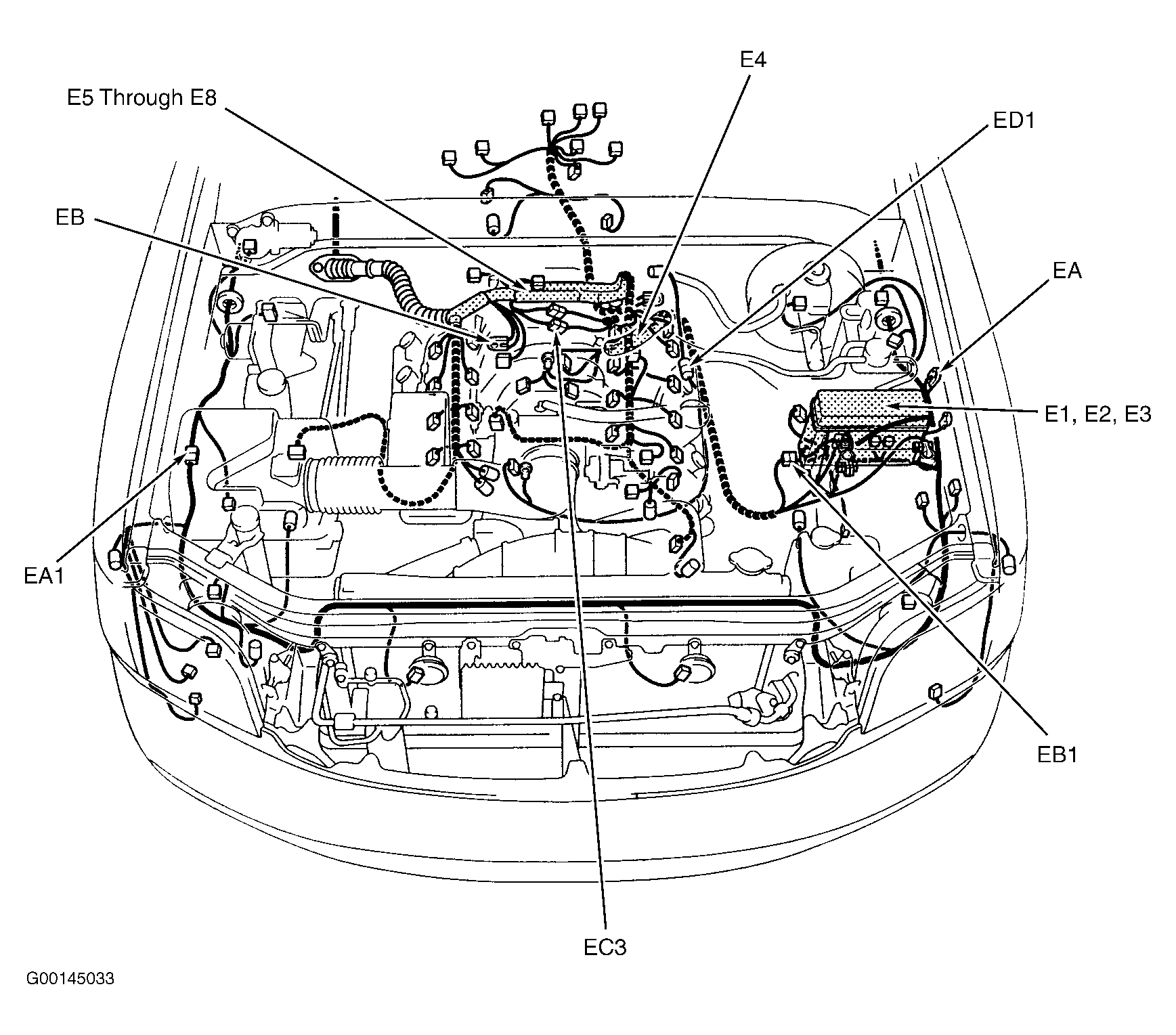

Fig 8: Engine Compartment (4.7L)

Fig 9: Dash
