Power Mirror Switch

Remove power mirror switch. Using an ohmmeter, check continuity between appropriate mirror switch terminals. See appropriate POWER MIRROR SWITCH CONTINUITY TEST table. Continuity or resistance should or should not exist between specified terminals, depending on vehicle model. Check table foot note. If switch fails any test, replace switch. If switch passes continuity or resistance test, inspect switch circuit for defects or damage. See WIRING DIAGRAMS .

POWER MIRROR SWITCH CONTINUITY TEST (AVALON - WITHOUT DRIVING POSITION MEMORY)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 3 & 4; 7 & 8
Down 3 & 8; 4 & 7
Left 4 & 9; 7 & 8
Right 4 & 7; 8 & 9
Right Side For Left/Right Adjustment Switch
Up 2 & 4; 7 & 8
Down 2 & 8; 4 & 7
Left 4 & 10; 7 & 8
Right 4 & 7; 8 & 10
(1) If continuity does not exist between specified terminals, replace switch. See Fig 1.

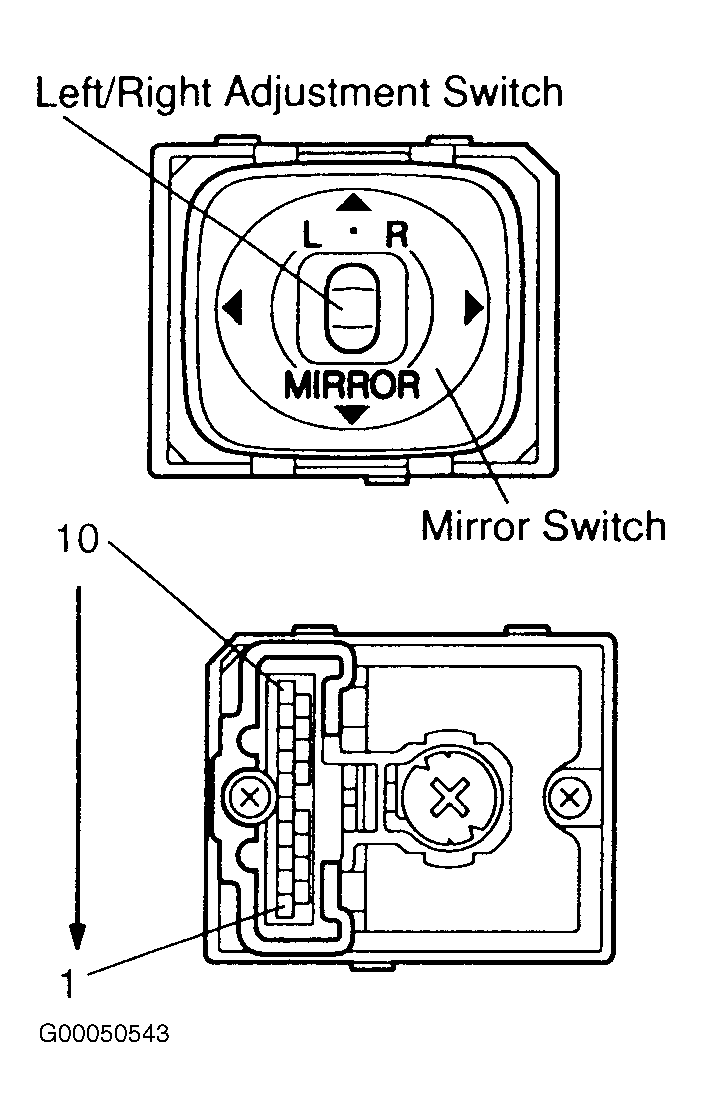

Fig 1: Identifying Power Mirror Switch Terminals (Avalon)
G00050543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
LEFT/RIGHT ADJUSTMENT SWITCH CONTINUITY TEST (AVALON - WITH DRIVING POSITION MEMORY)

Switch Position (1) Terminals No. Resistance (Ohms)
Left 8 & 9 100
Right 8 & 9 0
Illumination 5 & 6 Continuity
(1) If continuity or resistance is as specified between specified terminals, replace switch. See Fig 1.
POWER MIRROR SWITCH RESISTANCE TEST (AVALON - WITH DRIVING POSITION MEMORY) (1)

Mirror Switch Position (2) Resistance (Ohms)
Up 100
Right 250
Down 470
Left 800
(1) Measure resistance between terminals 7 & 9 with Left/Right Adjustment switch in both positions.
(2) If resistance is as specified between terminals 7 & 9, replace switch. See Fig 1.

Check circuits of power mirror switch at harness side of connector. See MIRROR SWITCH CIRCUITS TEST (AVALON & LAND CRUISER)  table. If circuits are not as specified, inspect circuits connected to other components.

MIRROR SWITCH HARNESS CIRCUITS TEST (AVALON & LAND CRUISER)

Check Between Ground & Terminal No. (1) Condition Specified Condition
8 At All Times Continuity
4 Ignition Switch In LOCK Position No Voltage
4 Ignition Switch In ACC or ON Position Battery Voltage
(1) See Fig 2.
Fig 2: Identifying Power Mirror Switch Harness Side Connector Terminals (Avalon & Land Cruiser)
G00020323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
POWER MIRROR SWITCH CONTINUITY TEST (CAMRY & CAMRY SOLARA)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 1 & 9; 6 & 10
Down 1 & 10; 6 & 9
Left 5 & 9; 6 & 10
Right 5 & 10; 6 & 9
Right Side For Left/Right Adjustment Switch
Up 6 & 10; 7 & 9
Down 6 & 9; 7 & 10
Left 6 & 10; 8 & 9
Right 6 & 9; 8 & 10
(1) If continuity does not exist between specified terminals, replace switch. See Fig 3.

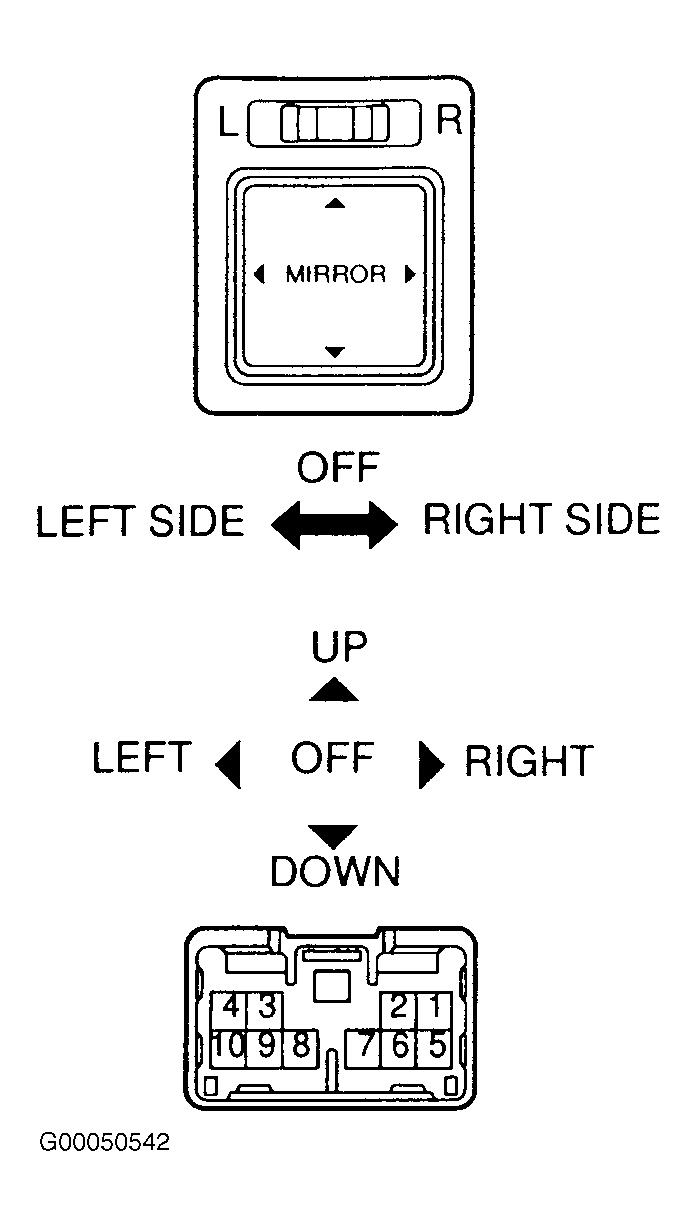

Fig 3: Identifying Power Mirror Switch Terminals (Camry, Camry Solara & 4Runner)
G00050542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
POWER MIRROR SWITCH CONTINUITY TEST (CELICA)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 4 & 8; 6 & 7
Down 4 & 7; 6 & 8
Left 5 & 8; 6 & 7
Right 5 & 7; 6 & 8
Right Side For Left/Right Adjustment Switch
Up 3 & 8; 6 & 7
Down 3 & 7; 6 & 8
Left 2 & 8; 6 & 7
Right 2 & 7; 6 & 8
(1) If continuity does not exist between specified terminals, replace switch. See Fig 4.

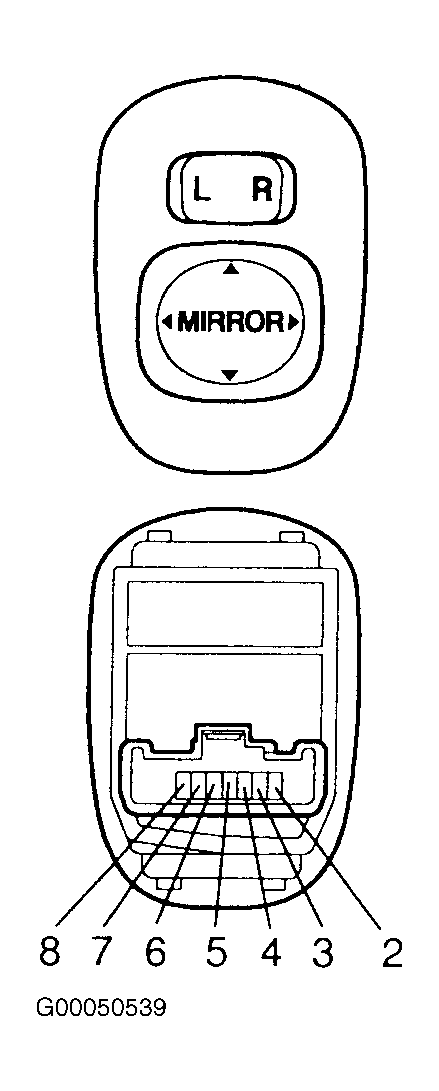

Fig 4: Identifying Power Mirror Switch Terminals (Celica)
G00050539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
POWER MIRROR SWITCH CONTINUITY TEST (COROLLA)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 1 & 9; 6 & 10
Down 1 & 10; 6 & 9
Left 5 & 9; 6 & 10
Right 5 & 10; 6 & 9
Right Side For Left/Right Adjustment Switch
Up 6 & 10; 7 & 9
Down 6 & 9; 7 & 10
Left 6 & 10; 8 & 9
Right 6 & 9; 8 & 10
(1) If continuity does not exist between specified terminals, replace switch. See Fig 5.
POWER MIRROR SWITCH CONTINUITY TEST (HIGHLANDER)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 4 & 8; 6 & 7
Down 4 & 7; 6 & 8
Left 5 & 8; 6 & 7
Right 5 & 7; 6 & 8
Right Side For Left/Right Adjustment Switch
Up 3 & 8; 6 & 7
Down 3 & 7; 6 & 8
Left 2 & 8; 6 & 7
Right 2 & 7; 6 & 8
(1) If continuity does not exist between specified terminals, replace switch. See Fig 7.

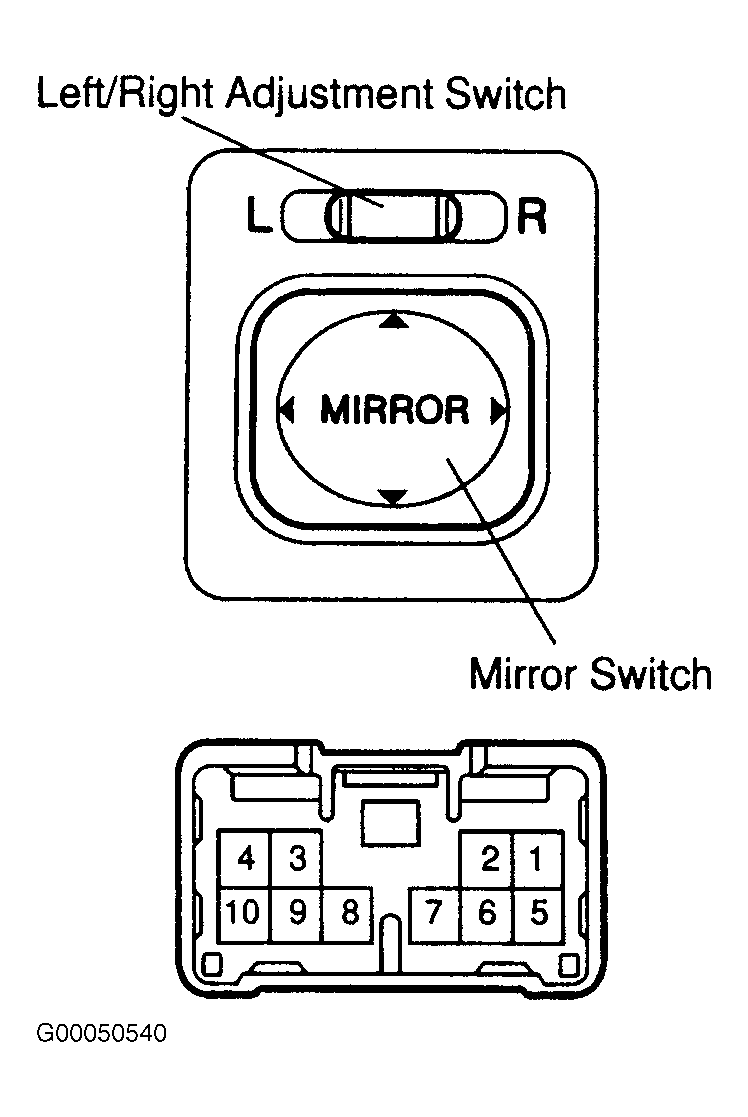

Fig 5: Identifying Power Mirror Switch Terminals (Corolla)
G00050540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
POWER MIRROR SWITCH CONTINUITY TEST (LAND CRUISER)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 3 & 4; 7 & 8
Down 3 & 8; 4 & 7
Left 4 & 9; 7 & 8
Right 4 & 7; 8 & 9
Right Side For Left/Right Adjustment Switch
Up 2 & 4; 1 & 7; 1 & 8
Down 4 & 7; 1 & 2; 1 & 8
Left 4 & 10; 1 & 7; 1 & 8
Right 4 & 7; 1 & 8; 1 & 10
(1) If continuity does not exist between specified terminals, replace switch. See Fig 6.

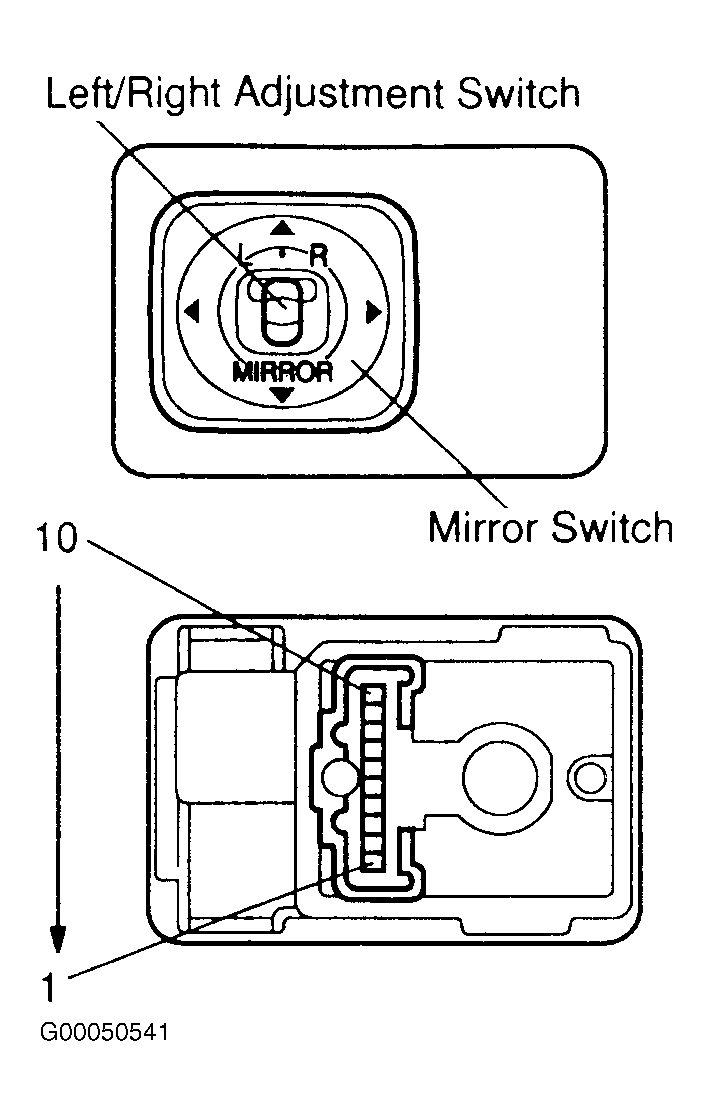

Fig 6: Identifying Power Mirror Switch Terminals (Land Cruiser)
G00050541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check circuits of power mirror switch at harness side of connector. See MIRROR SWITCH CIRCUITS TEST (AVALON & LAND CRUISER)  table. If circuits are not as specified, inspect circuits connected to other components.

POWER MIRROR SWITCH CONTINUITY TEST (MR2)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 4 & 8; 6 & 7
Down 4 & 7; 6 & 8
Left 5 & 8; 6 & 7
Right 5 & 7; 6 & 8
Right Side For Left/Right Adjustment Switch
Up 3 & 8; 6 & 7
Down 3 & 7; 6 & 8
Left 2 & 8; 6 & 7
Right 2 & 7; 6 & 8
(1) If continuity does not exist between specified terminals, replace switch. See Fig 7.

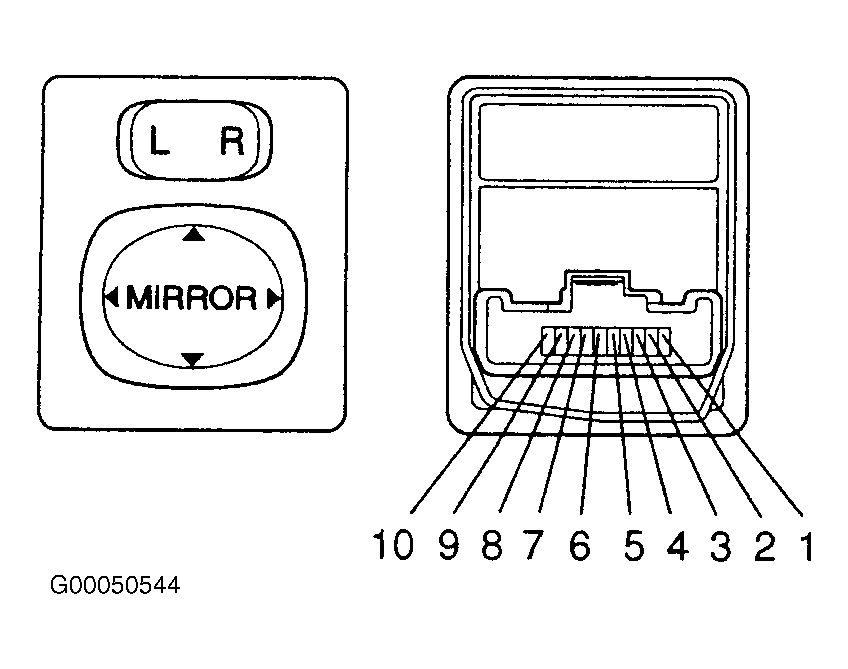

Fig 7: Identifying Power Mirror Switch Terminals (MR2 & RAV4, Highlander Similar)
G00050544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
POWER MIRROR SWITCH CONTINUITY TEST (PRIUS)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 4 & 8; 6 & 7
Down 4 & 7; 6 & 8
Left 5 & 8; 6 & 7
Right 5 & 7; 6 & 8
Right Side For Left/Right Adjustment Switch
Up 3 & 8; 6 & 7
Down 3 & 7; 6 & 8
Left 5 & 8; 6 & 7
Right 2 & 7; 6 & 8
(1) If continuity does not exist between specified terminals, replace switch. See Fig 8.

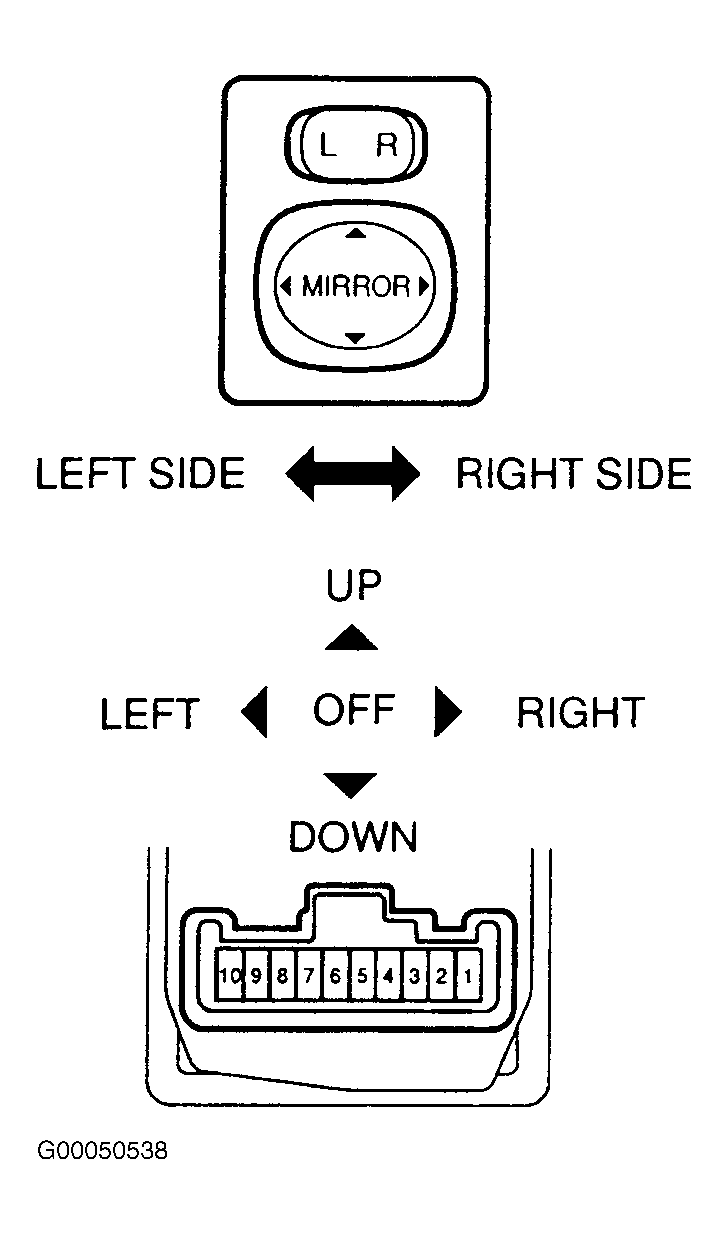

Fig 8: Identifying Power Mirror Switch Terminals (Prius, Sienna, Tacoma & Tundra)
G00050538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check circuits of power mirror switch at harness side of connector. See MIRROR SWITCH HARNESS CIRCUITS TEST (PRIUS)  table. If circuits are not as specified, inspect circuits connected to other components.

MIRROR SWITCH HARNESS CIRCUITS TEST (PRIUS)

Check Between Ground & Terminal No. (1) Condition Specified Result
7 At All Times Continuity
8 Ignition Switch In LOCK Position No Voltage
8 Ignition Switch In ACC or ON Position Battery Voltage
(1) See Fig 2.
POWER MIRROR SWITCH CONTINUITY TEST (RAV4)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 4 & 8; 6 & 7
Down 4 & 7; 6 & 8
Left 5 & 8; 6 & 7
Right 5 & 7; 6 & 8
Right Side For Left/Right Adjustment Switch
Up 3 & 8; 6 & 7
Down 3 & 7; 6 & 8
Left 2 & 8; 6 & 7
Right 2 & 7; 6 & 8
(1) If continuity does not exist between specified terminals, replace switch. See Fig 7.
POWER MIRROR SWITCH CONTINUITY TEST (SIENNA)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 1 & 9; 6 & 10
Down 1 & 10; 6 & 9
Left 5 & 9; 6 & 10
Right 5 & 10; 6 & 9
Right Side For Left/Right Adjustment Switch
Up 6 & 10; 7 & 9
Down 6 & 9; 7 & 10
Left 6 & 10; 8 & 9
Right 6 & 9; 8 & 10
(1) If continuity does not exist between specified terminals, replace switch. See Fig 8.
POWER MIRROR SWITCH CONTINUITY TEST (SEQUOIA WITHOUT RETRACTABLE MIRROR)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 4 & 8; 6 & 7
Down 4 & 7; 6 & 8
Left 5 & 8; 6 & 7
Right 5 & 7; 6 & 8
Right Side For Left/Right Adjustment Switch
Up 3 & 8; 6 & 7
Down 3 & 7; 6 & 8
Left 2 & 8; 6 & 7
Right 2 & 7; 6 & 8
(1) If continuity does not exist between specified terminals, replace switch. See Fig 9.
POWER MIRROR SWITCH CONTINUITY TEST (SEQUOIA WITH RETRACTABLE MIRROR)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 4 & 8; 6 & 7
Down 4 & 7; 6 & 8
Left 5 & 8; 6 & 7
Right 5 & 7; 6 & 8
Right Side For Left/Right Adjustment Switch
Up 3 & 8; 6 & 7
Down 3 & 7; 6 & 8
Left 5 & 8; 6 & 7
Right 5 & 7; 6 & 8
Retract Switch
Drive 7 & 9; 8 & 10
Retract 7 & 10; 8 & 9
(1) If continuity does not exist between specified terminals, replace switch. See Fig 9.

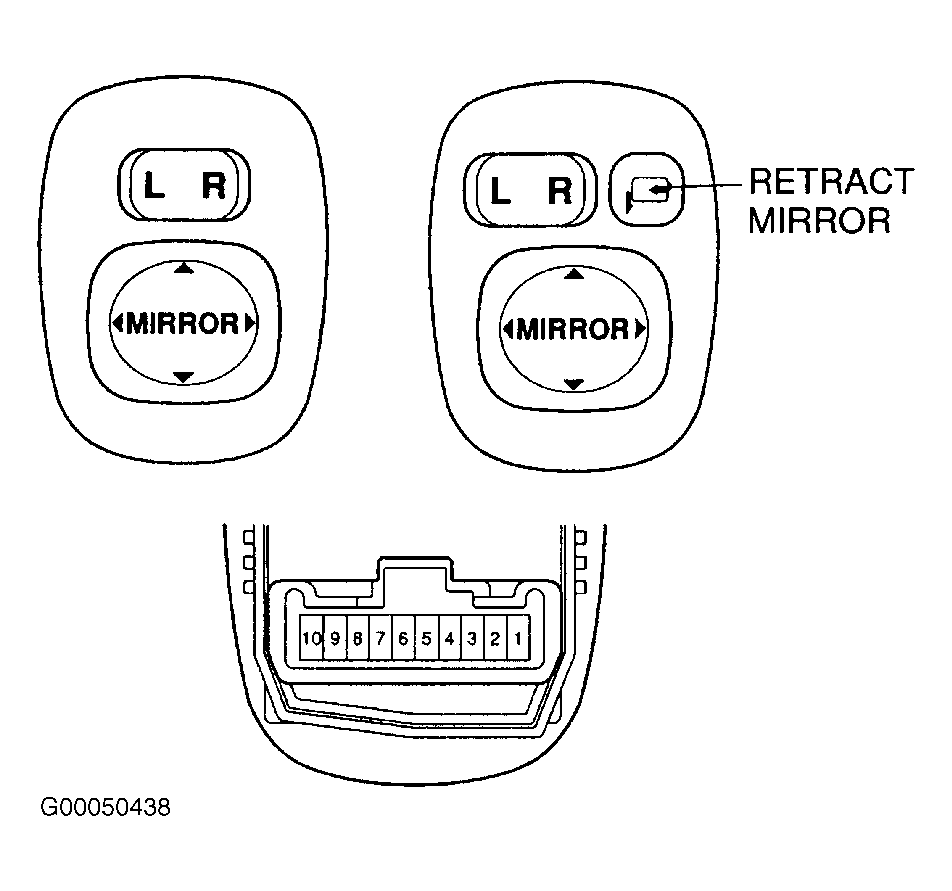

Fig 9: Identifying Power Mirror Switch Terminals (Sequoia)
G00050438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
POWER MIRROR SWITCH CONTINUITY TEST (TACOMA)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 4 & 8; 6 & 7
Down 4 & 7; 6 & 8
Left 5 & 8; 6 & 7
Right 5 & 7; 6 & 8
Right Side For Left/Right Adjustment Switch
Up 3 & 8; 6 & 7
Down 3 & 7; 6 & 8
Left 2 & 8; 6 & 7
Right 2 & 7; 6 & 8
(1) If continuity does not exist between specified terminals, replace switch. See Fig 8.
POWER MIRROR SWITCH CONTINUITY TEST (TUNDRA)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 4 & 8; 6 & 7
Down 4 & 7; 6 & 8
Left 5 & 8; 6 & 7
Right 5 & 7; 6 & 8
Right Side For Left/Right Adjustment Switch
Up 3 & 8; 6 & 7
Down 3 & 7; 6 & 8
Left 5 & 8; 6 & 7
Right 5 & 7; 6 & 8
(1) If continuity does not exist between specified terminals, replace switch. See Fig 8.
POWER MIRROR SWITCH CONTINUITY TEST (4RUNNER)

Mirror Switch Position (1) Terminals No.
Left Side For Left/Right Adjustment Switch
Up 1 & 9; 6 & 10
Down 1 & 10; 6 & 9
Left 5 & 9; 6 & 10
Right 5 & 10; 6 & 9
Right Side For Left/Right Adjustment Switch
Up 6 & 10; 7 & 9
Down 6 & 9; 7 & 10
Left 6 & 10; 8 & 9
Right 6 & 9; 8 & 10
(1) If continuity does not exist between specified terminals, replace switch. See Fig 3.
