Rear Power Window Switch

  1. Remove rear power window switch from door panel and disconnect electrical connector. Note electrical terminal identification on rear power window switch. See Fig 1.
  2. Using ohmmeter, check that continuity and no continuity exists between specified terminals in relation to the switch position. See REAR POWER WINDOW SWITCH CONTINUITY  table. Replace rear power window switch if continuity is not as specified.
    REAR POWER WINDOW SWITCH CONTINUITY

    Switch Position Terminals No. Specification
    UP 2 & 6; 4 & 5 Continuity
    OFF 2 & 6; 4 & 6 No Continuity
    DOWN 2 & 5; 4 & 6 Continuity

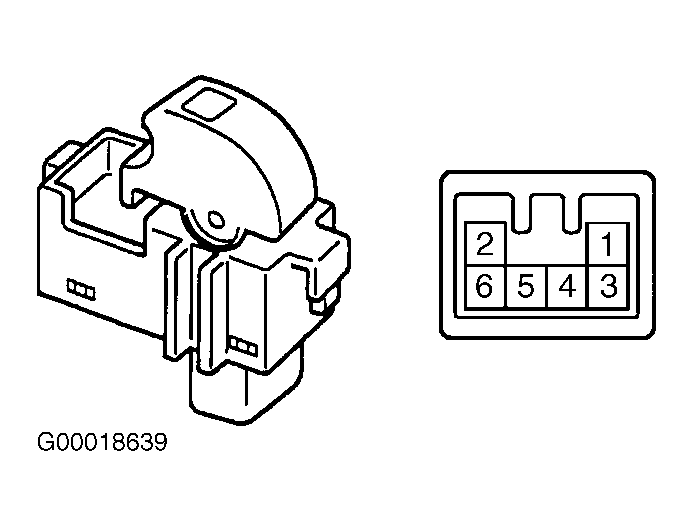

    Fig 1: Identifying Electrical Terminals On Rear Power Window Switch
    G00018639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
