Door Control Receiver

Remove door control receiver. See DOOR CONTROL RECEIVER under REMOVAL & INSTALLATION. Test remote transmitter with harness connected and disconnected. See DOOR CONTROL RECEIVER (DISCONNECTED, HARNESS SIDE) and DOOR CONTROL RECEIVER (HARNESS CONNECTED) .

DOOR CONTROL RECEIVER (DISCONNECTED, HARNESS SIDE)

Check Between Ground & Terminal No. ⁽¹⁾

Condition

Continuity

Battery Voltage

⁽¹⁾

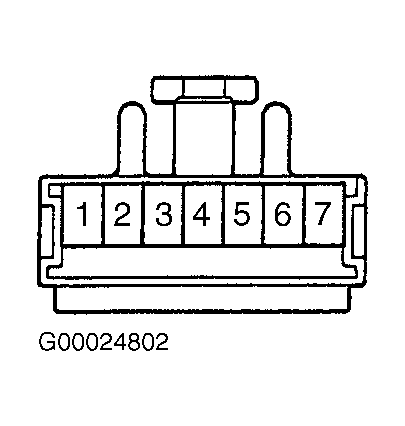

Fig 1: Identifying Harness Side Of Door Control Receiver Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DOOR CONTROL RECEIVER (HARNESS CONNECTED)

Check Between Ground & Terminal No. ⁽¹⁾

Condition

Voltage

Ignition switch Off, Key Removed, Transmitter Off

⁽²⁾ 4.5-5.5

Ignition Switch Off, Key Removed, Transmitter Off

10-14

⁽¹⁾	See Fig 2.

⁽²⁾	Below one volt with transmitter going from off to on.

Fig 2: Identifying Door Control Receiver (Component Side) Connector Terminals
