Front Brake Speed Sensor: Removal

Disconnect Speed Sensor Connector
1. Remove the fender liner.
2. Disconnect the speed sensor connector.

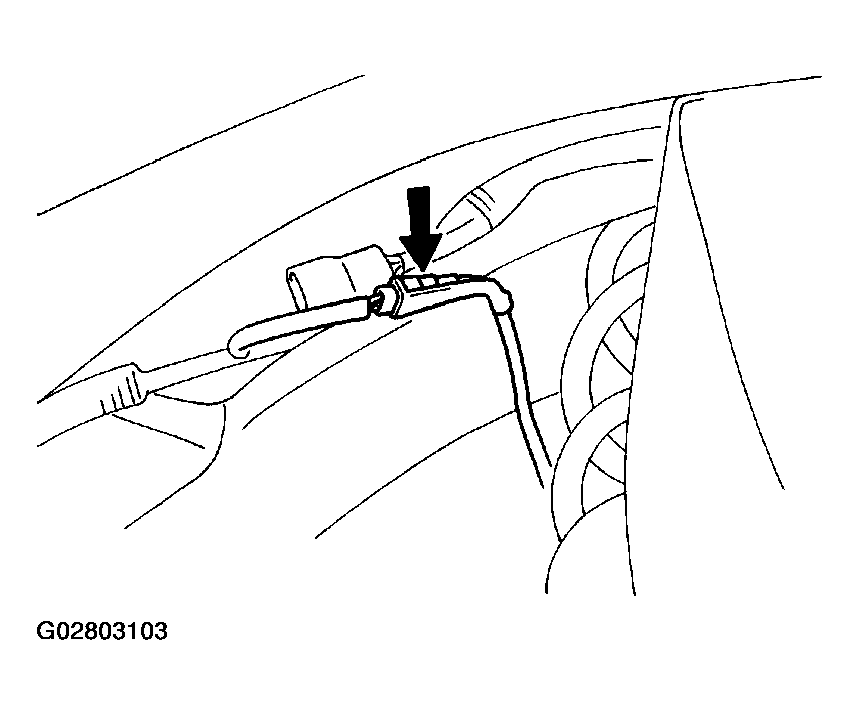

Fig 1: Removing Speed Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Speed Sensor
1. Remove the 2 clamp bolts holding the sensor harness to the body and shock absorber.
  Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
2. Remove the bolt and speed sensor from the steering knuckle.

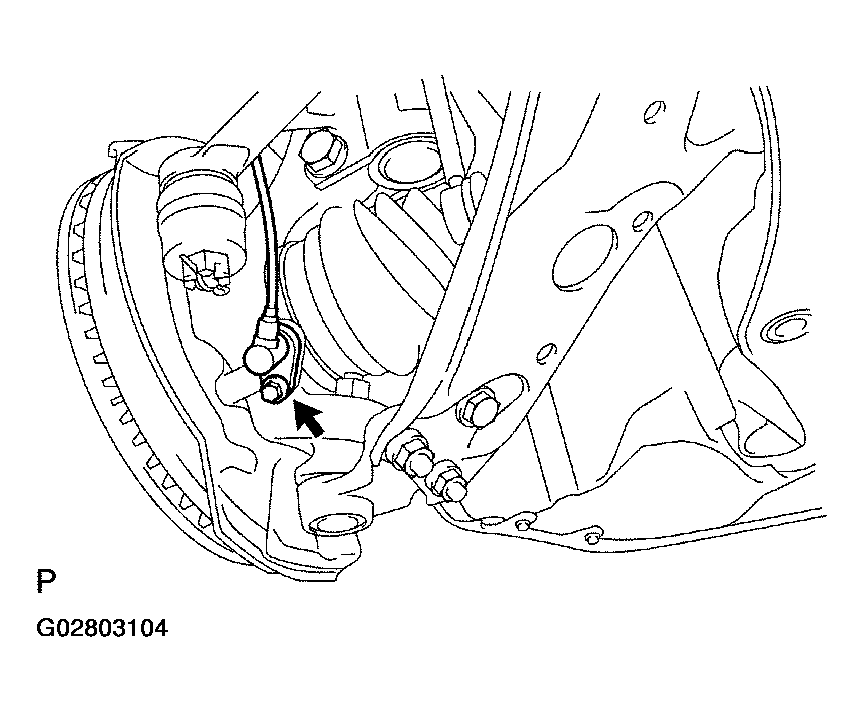

  Fig 2: Removing Bolt And Speed Sensor From The Steering Knuckle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
