Front Brake Speed Sensor: Removal

Remove Speed Sensor

1. Disconnect the speed sensor connector.

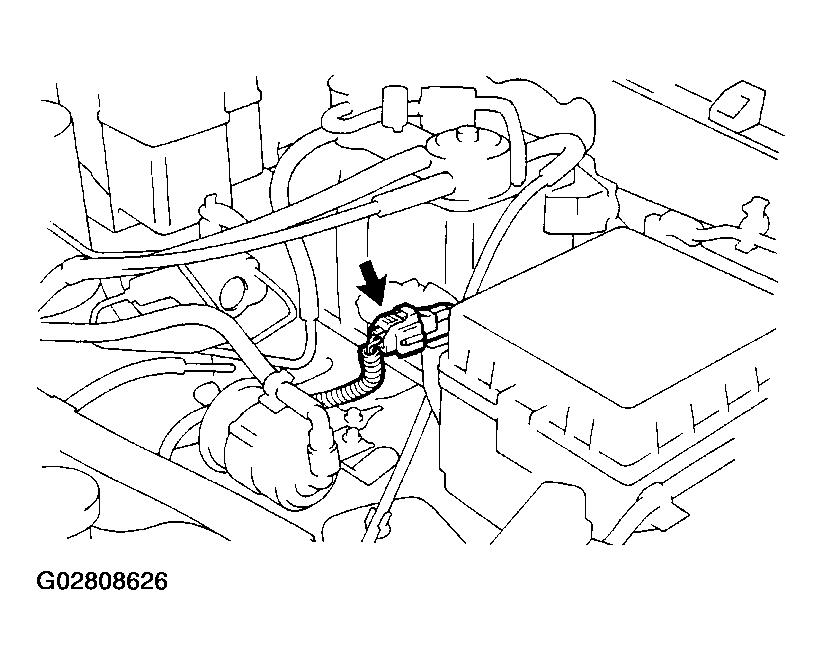

   Fig 1: Locating Speed Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the resin clip and 4 clamp bolts holding the sensor harness from the steering knuckle and upper arm.

   Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

3. Remove the speed sensor installation bolt and speed sensor from the steering knuckle.

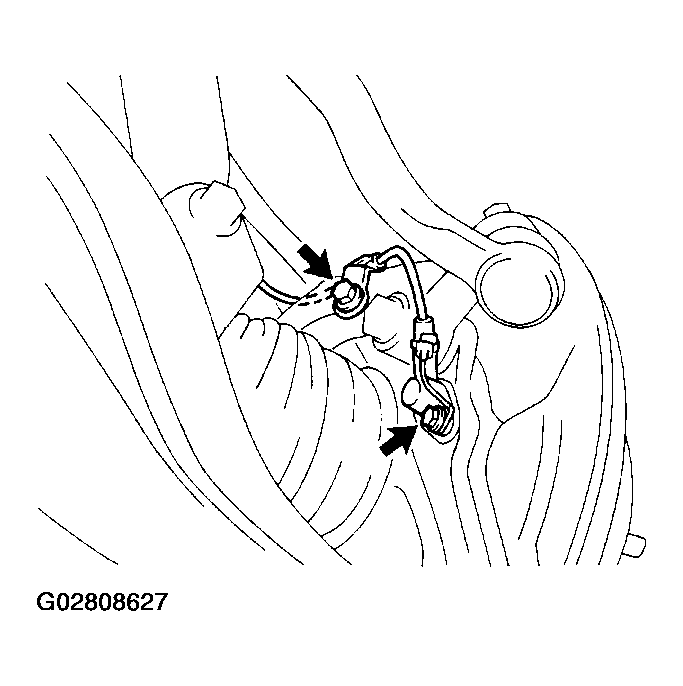

   Fig 2: Locating Speed Sensor Installation Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
