Connector Identification

For electrical connector and terminal identification for various components, see Fig 1-Fig 6 .

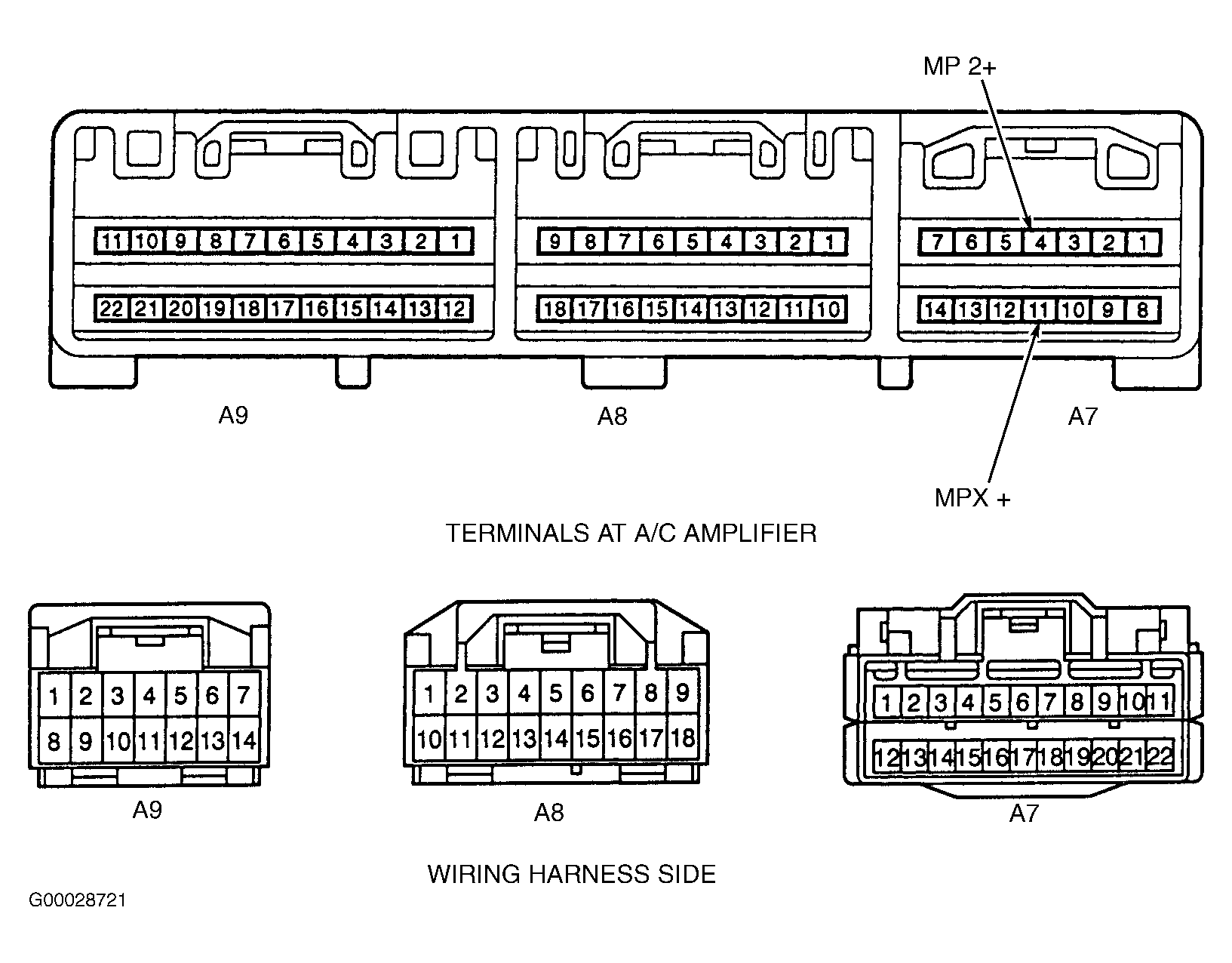

Fig 1: Electrical Connector Terminal Identification At A/C Amplifier & Wiring Harness Side Of Electrical Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

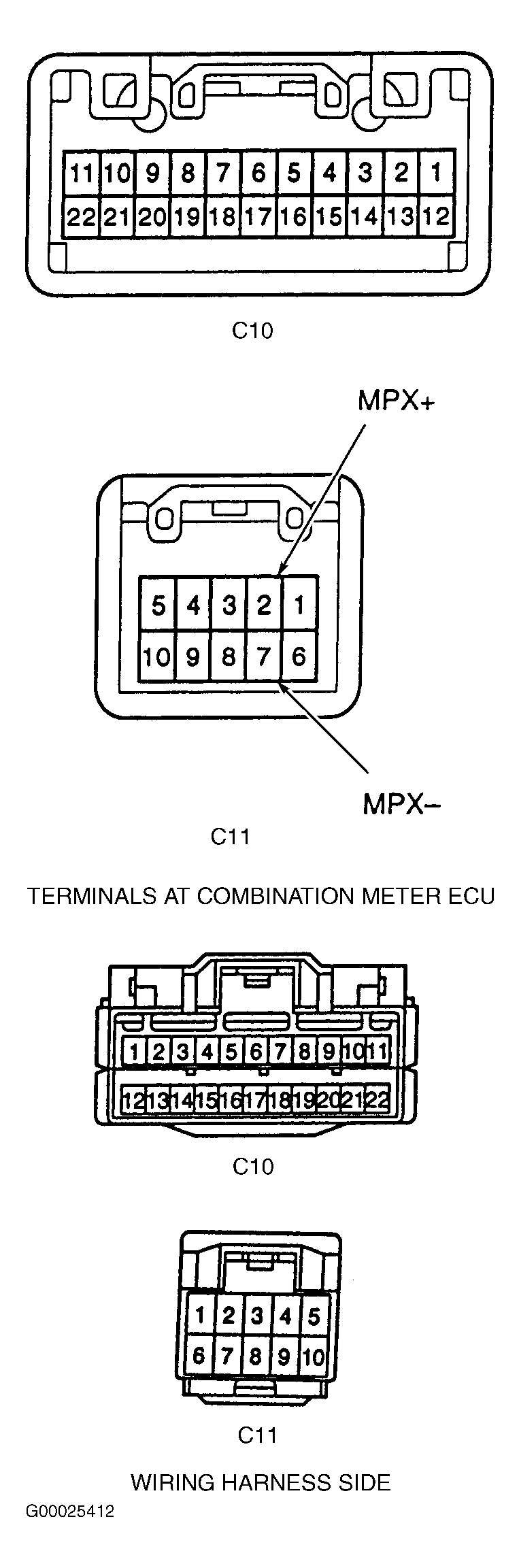

Fig 2: Electrical Connector Terminal Identification At Combination Meter Electronic Control Unit & Wiring Harness Side Of Electrical Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

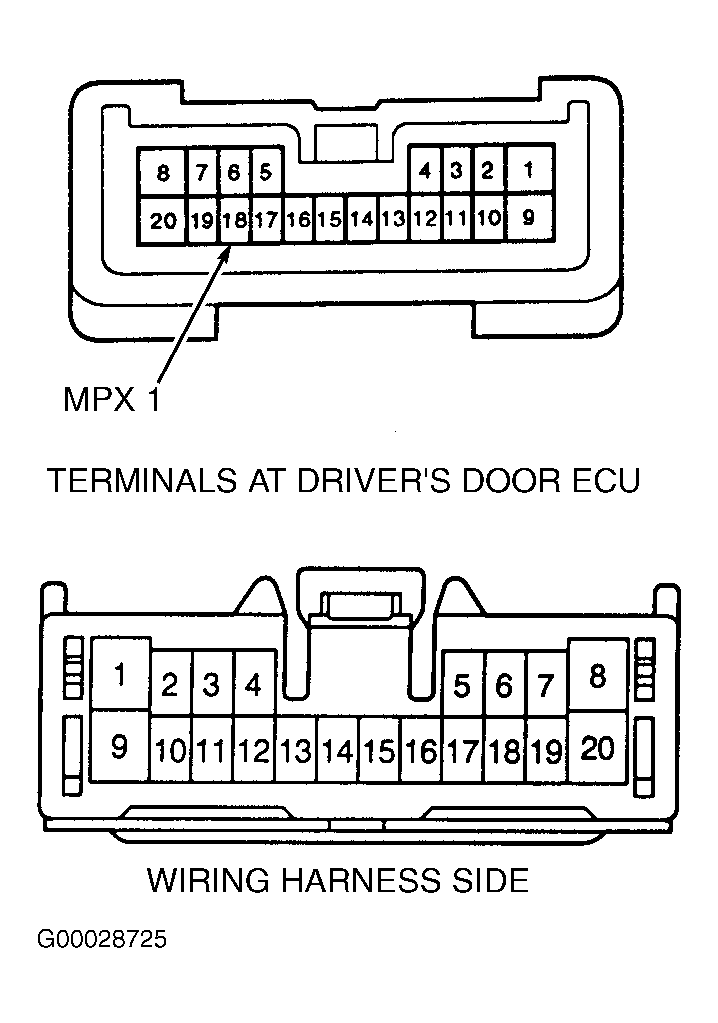

Fig 3: Electrical Connector Terminal Identification At Driver's Door Electronic Control Unit & Wiring Harness Side Of Electrical Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

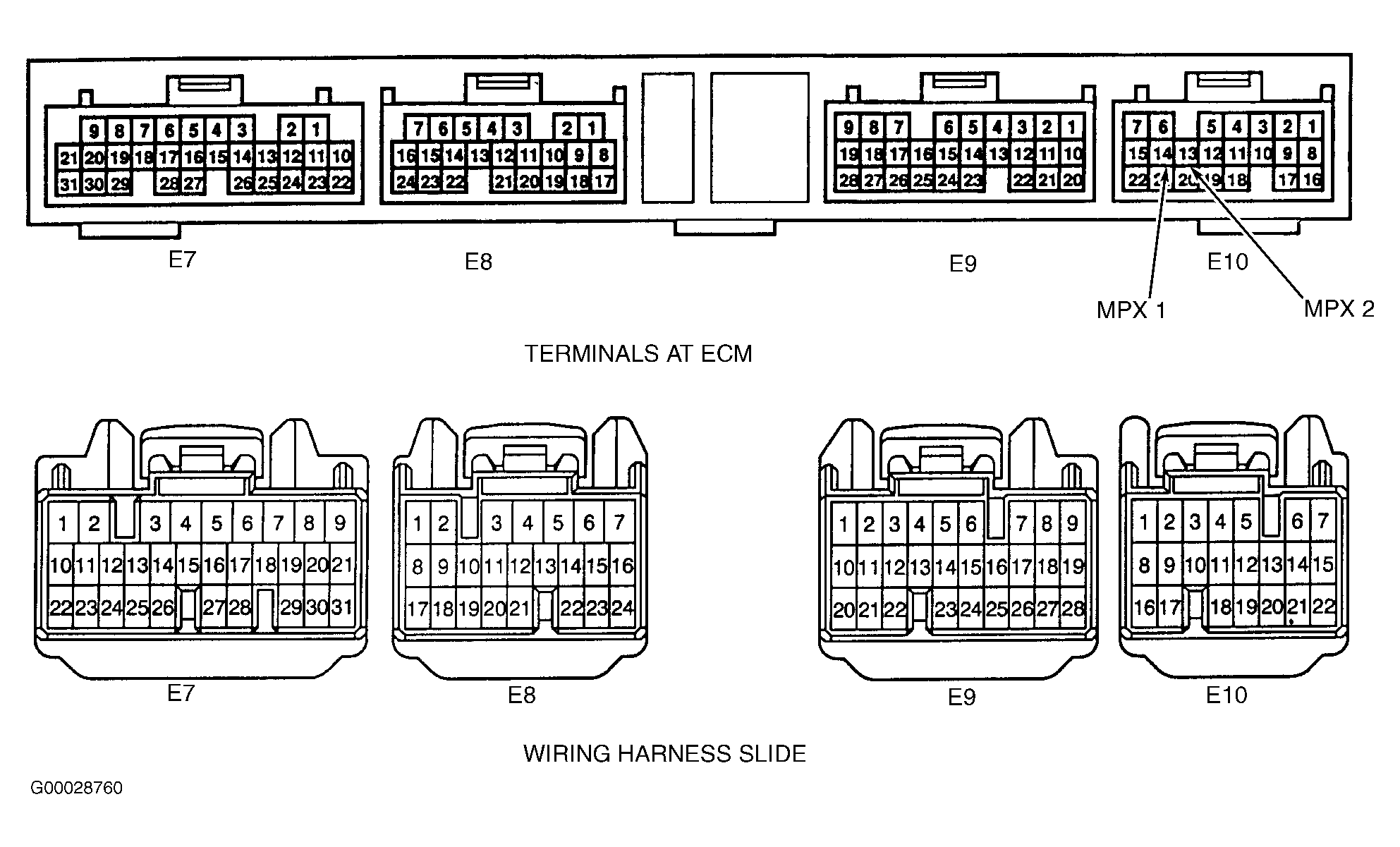

Fig 4: Electrical Connector Terminal Identification At Engine Control Module & Wiring Harness Side Of Electrical Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

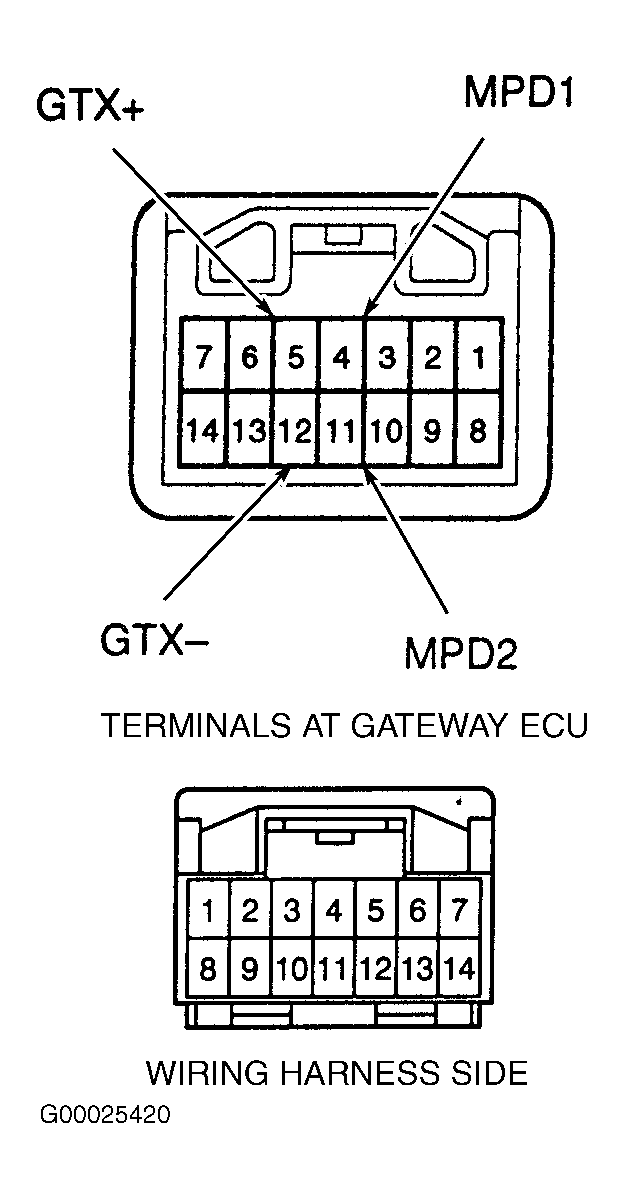

Fig 5: Electrical Connector Terminal Identification At Gateway Electronic Control Unit & Wiring Harness Side Of Electrical Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

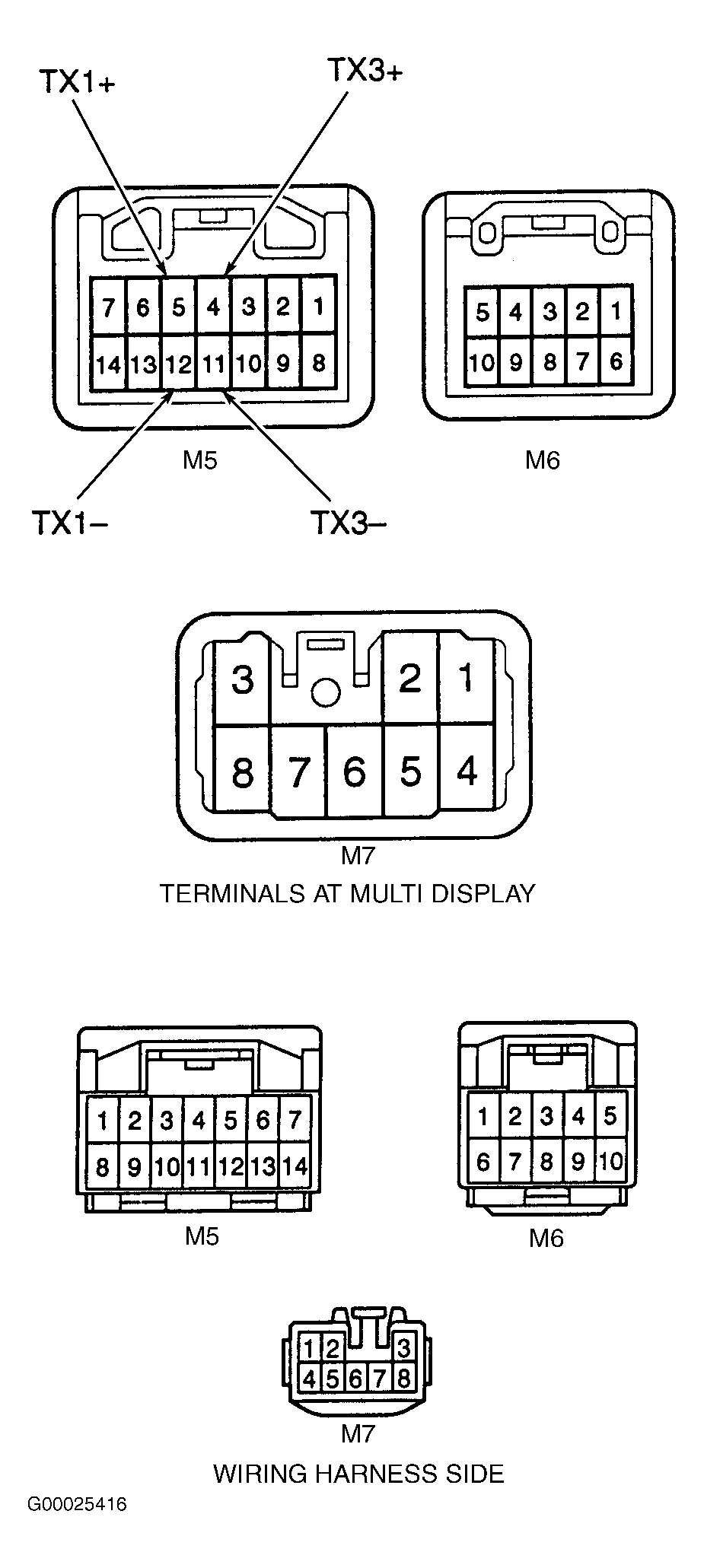

Fig 6: Electrical Connector Terminal Identification At Multi-Display & Wiring Harness Side Of Electrical Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
