Home >> Toyota >> 2001 >> Prius >> Repair and Diagnosis >> Engine Mechanical >> Engine Exhaust System >> Components

Engine Exhaust System: Components

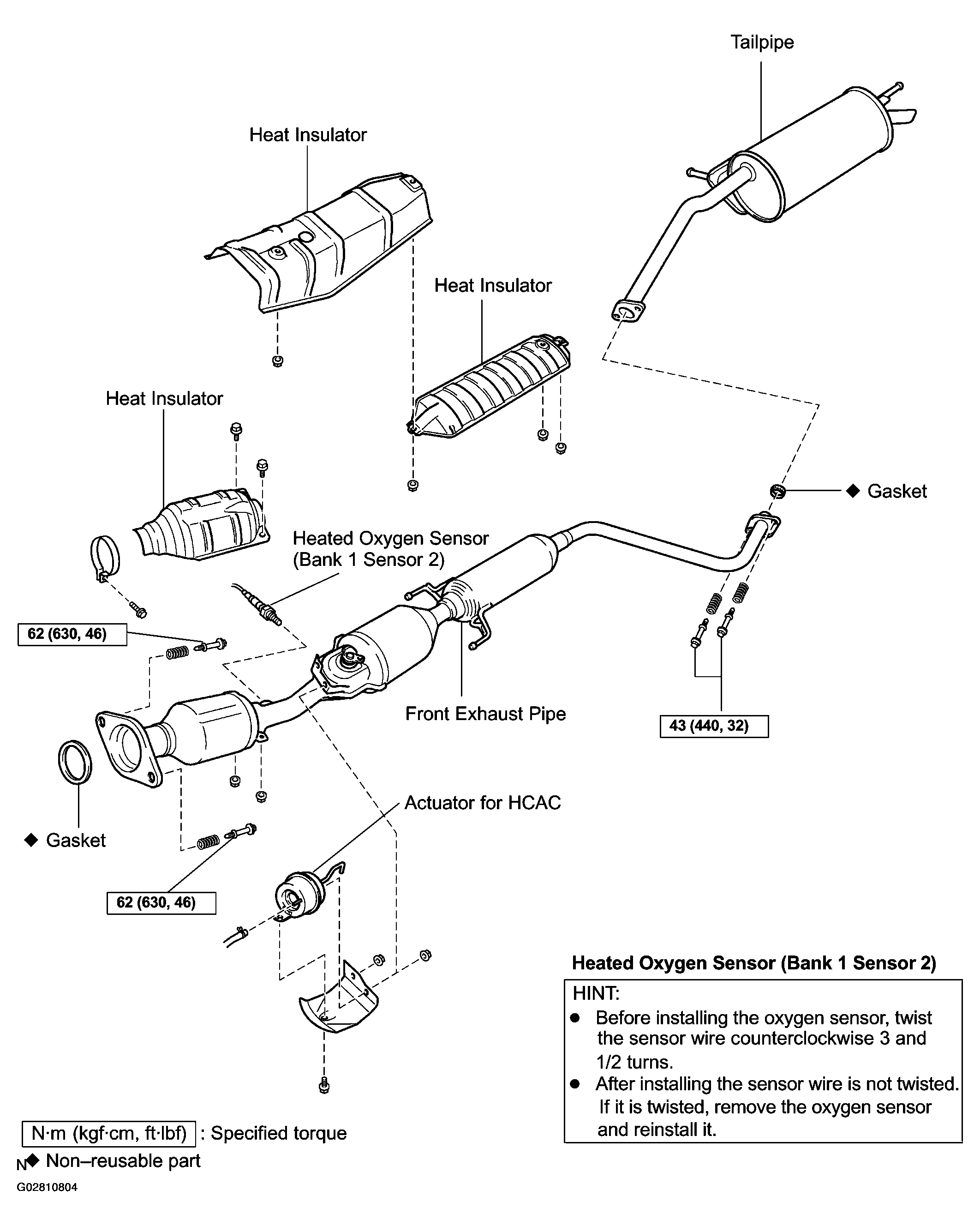

Fig 1: Identifying Exhaust System Components
G02810804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
