Counter Driven Gear: Reassembly

1. INSTALL NEW TAPERED ROLLER BEARING (MG1 SIDE)

   Using SST and a press, press in a new tapered roller bearing. SST 09608-06041

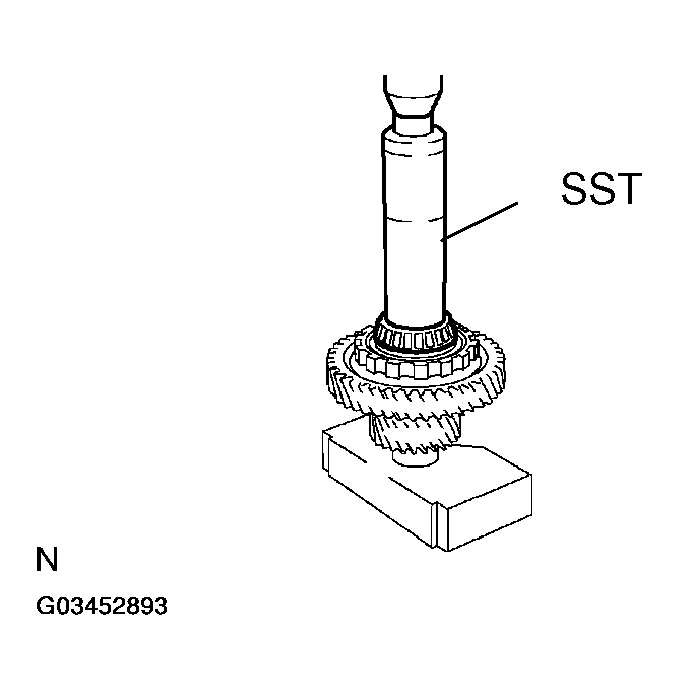

   Fig 1: Installing Tapered Roller Bearing (MG1 Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL NEW TAPERED ROLLER BEARING (MG2 SIDE)

Using SST and a press, press in a new tapered roller bearing. SST 09608-06041, 09950-60010 (09951-00370)

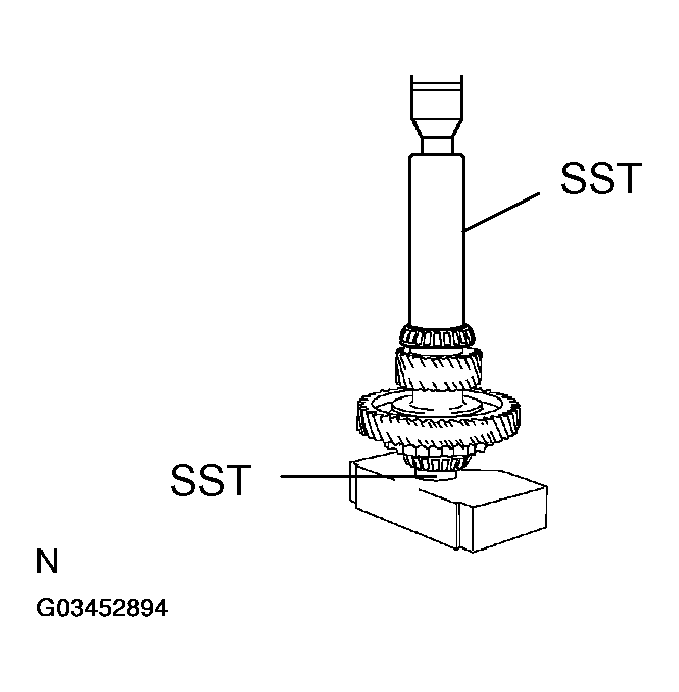

Fig 2: Installing Tapered Roller Bearing (MG2 Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
