Home >> Toyota >> 2001 >> Prius >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Transmission Control System Transaxle >> Differential Case >> Components

Differential Case: Components

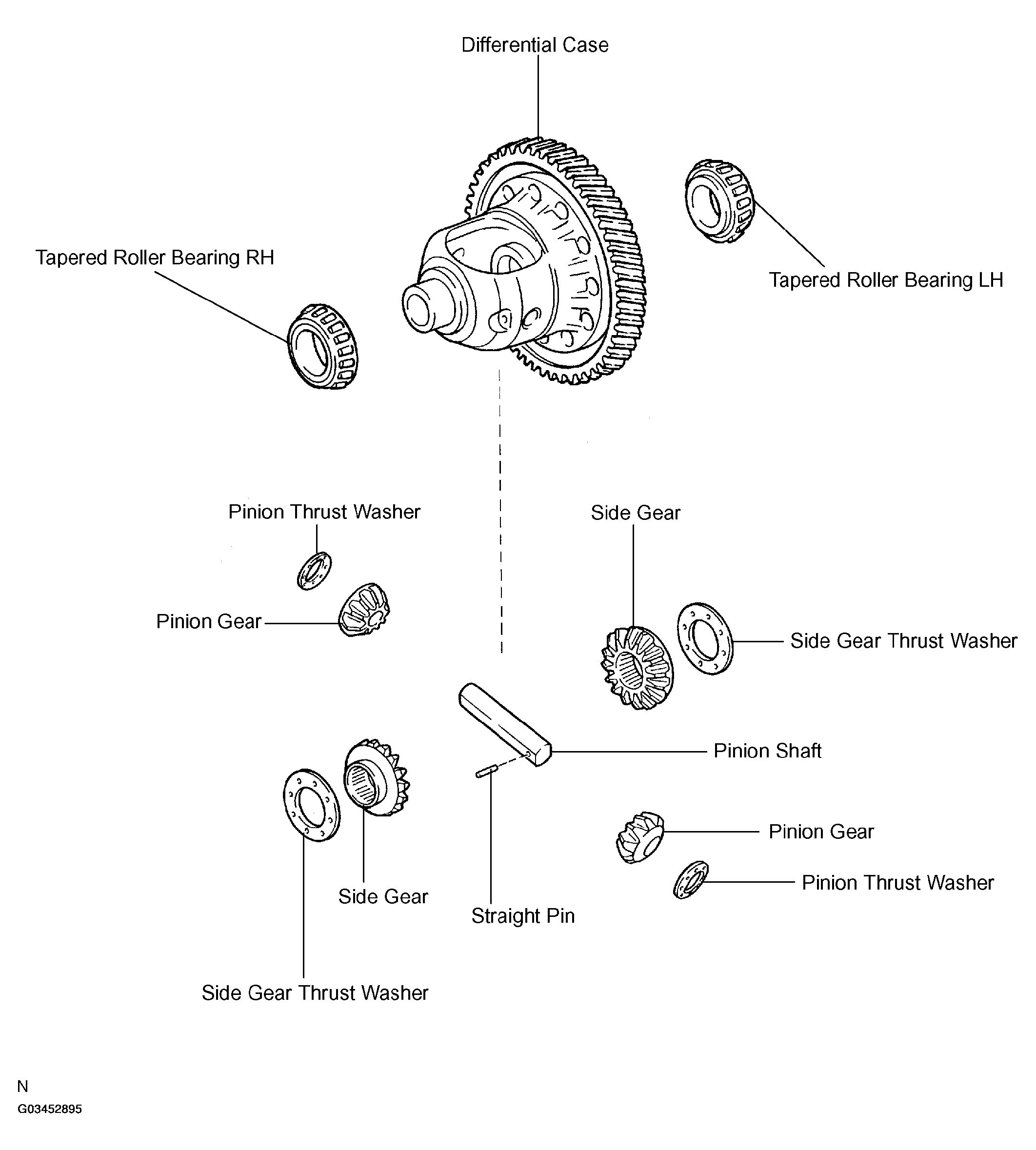

Fig 1: Exploded View Of Differential Case Components
G03452895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
