Transfer Case Unit: Components

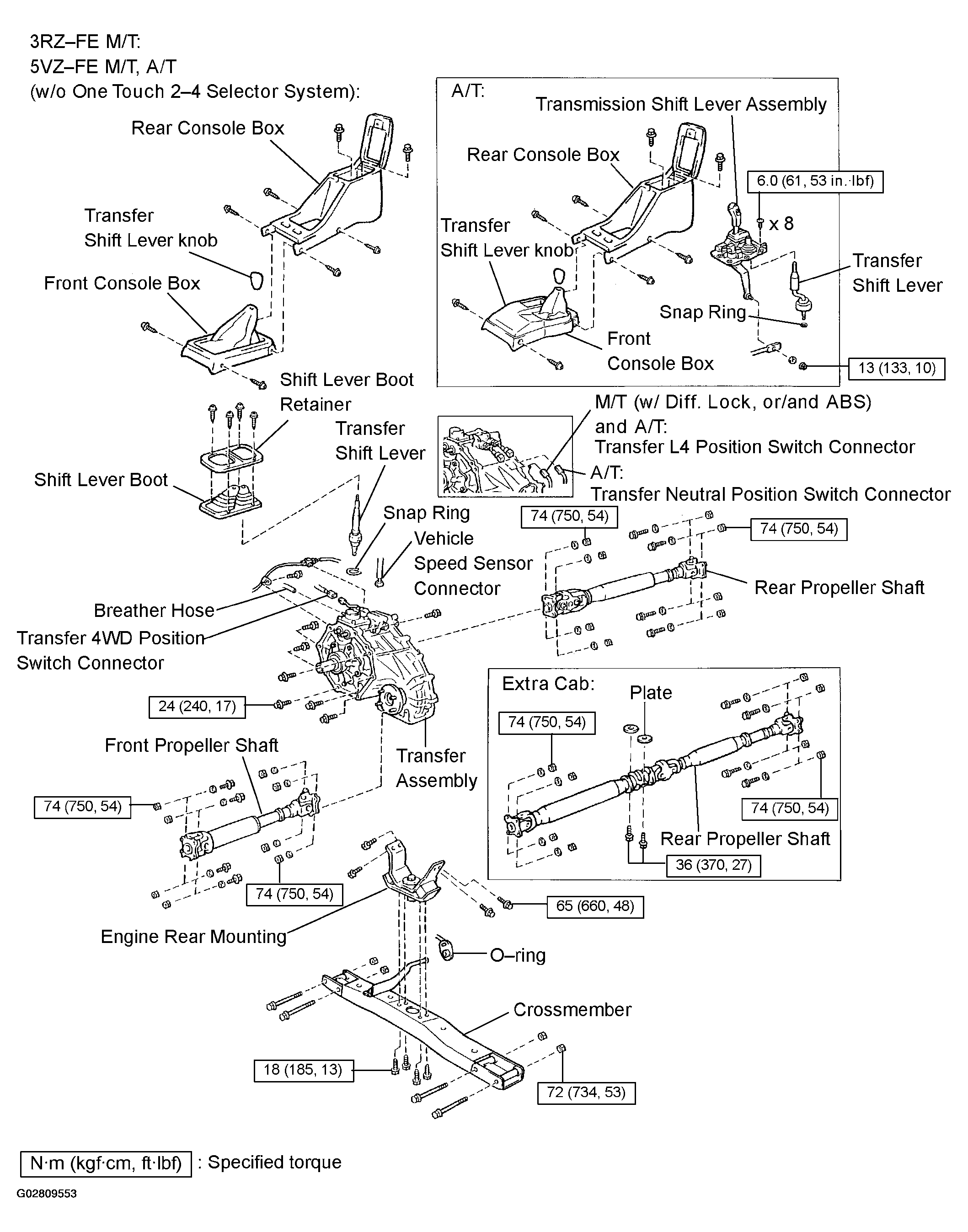

Fig 1: Identifying 3RZ-FE M/T & 5VZ-FE Transfer Unit Components (W/O One Touch 2-4 Selector System)
G02809553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

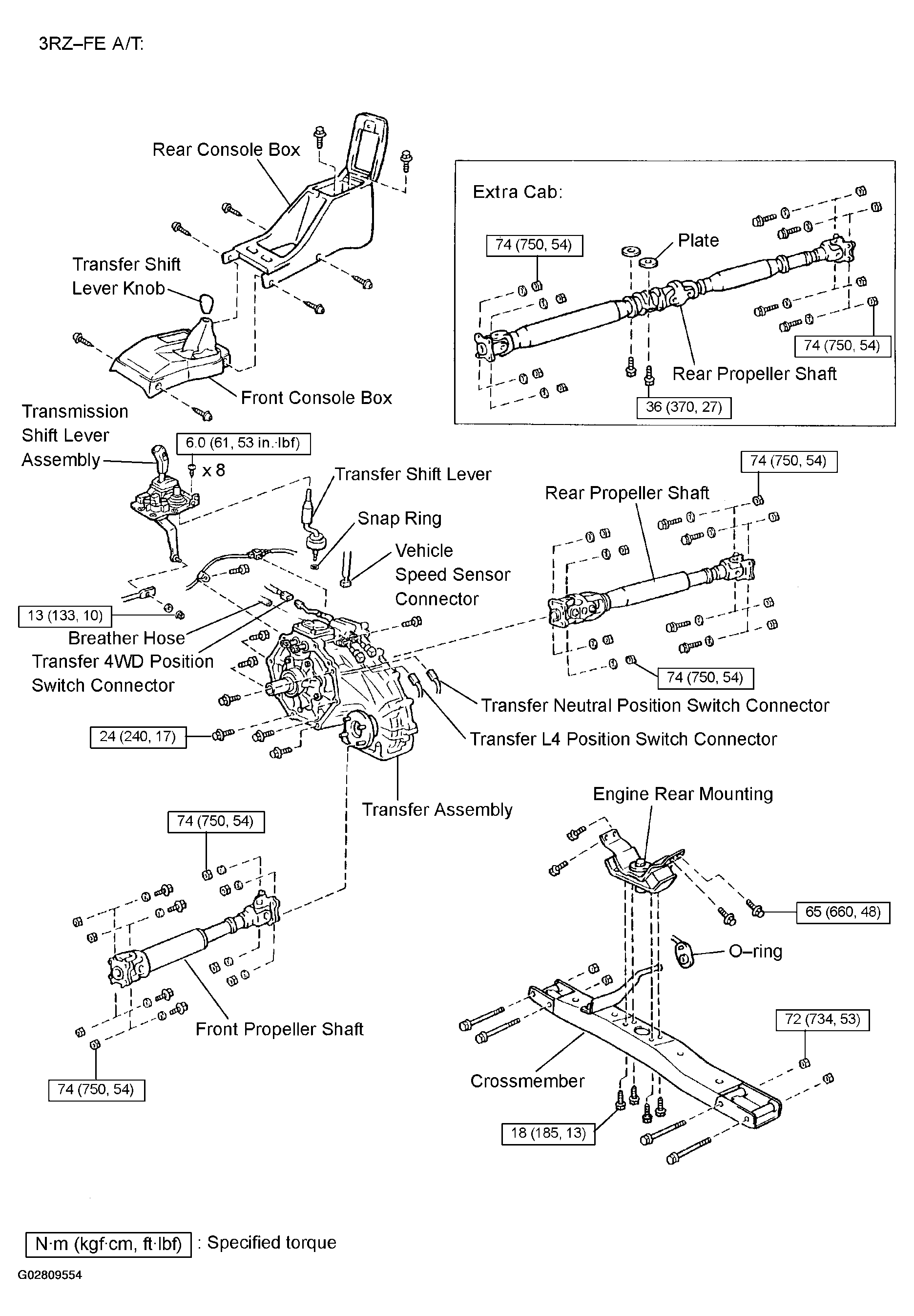

Fig 2: Identifying 3RZ-FE A/T Transfer Unit Components
G02809554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

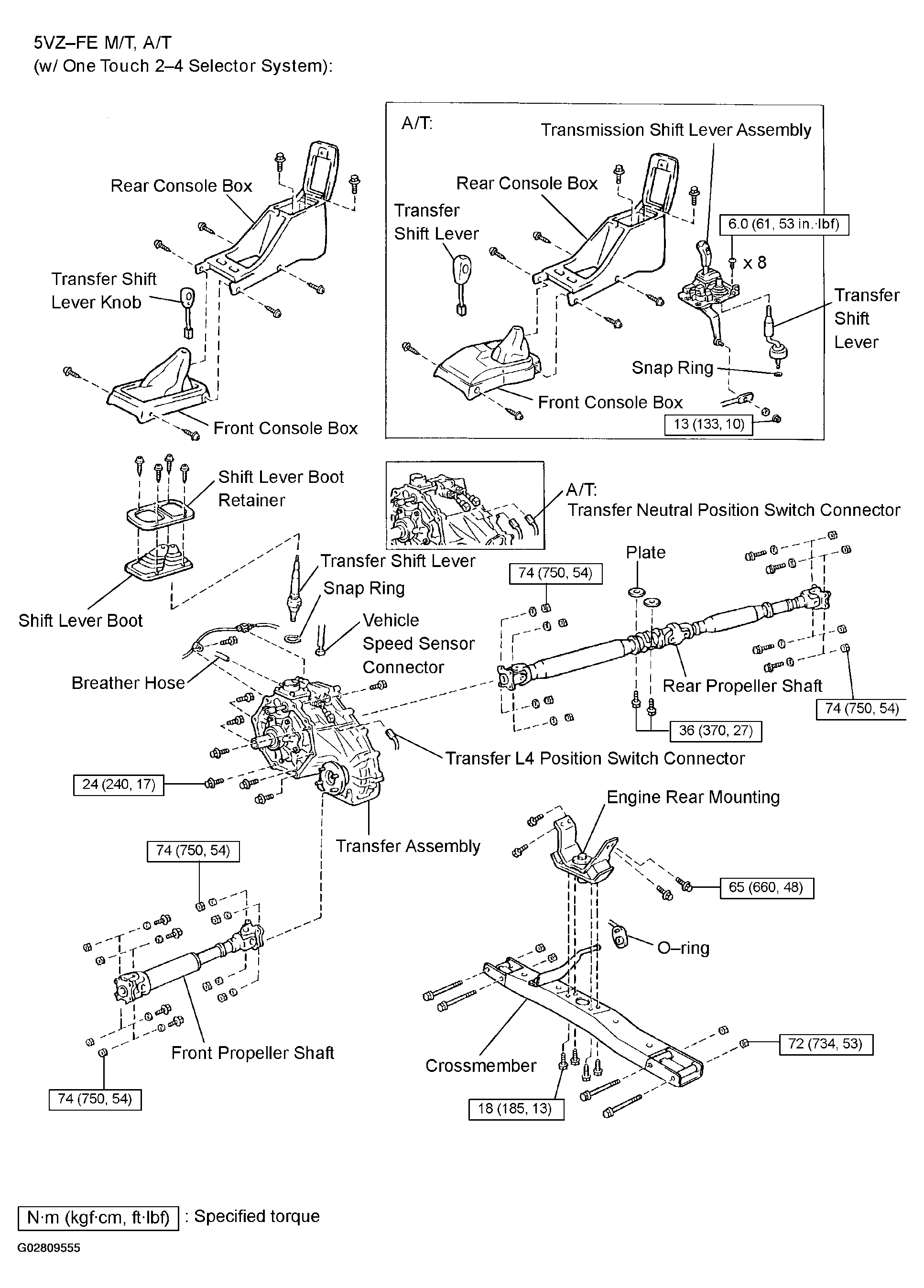

Fig 3: Identifying 5VZ-FE Transfer Unit Components (W/One Touch 2-4 Selector System)
G02809555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
