Transfer Case Assembly: Components

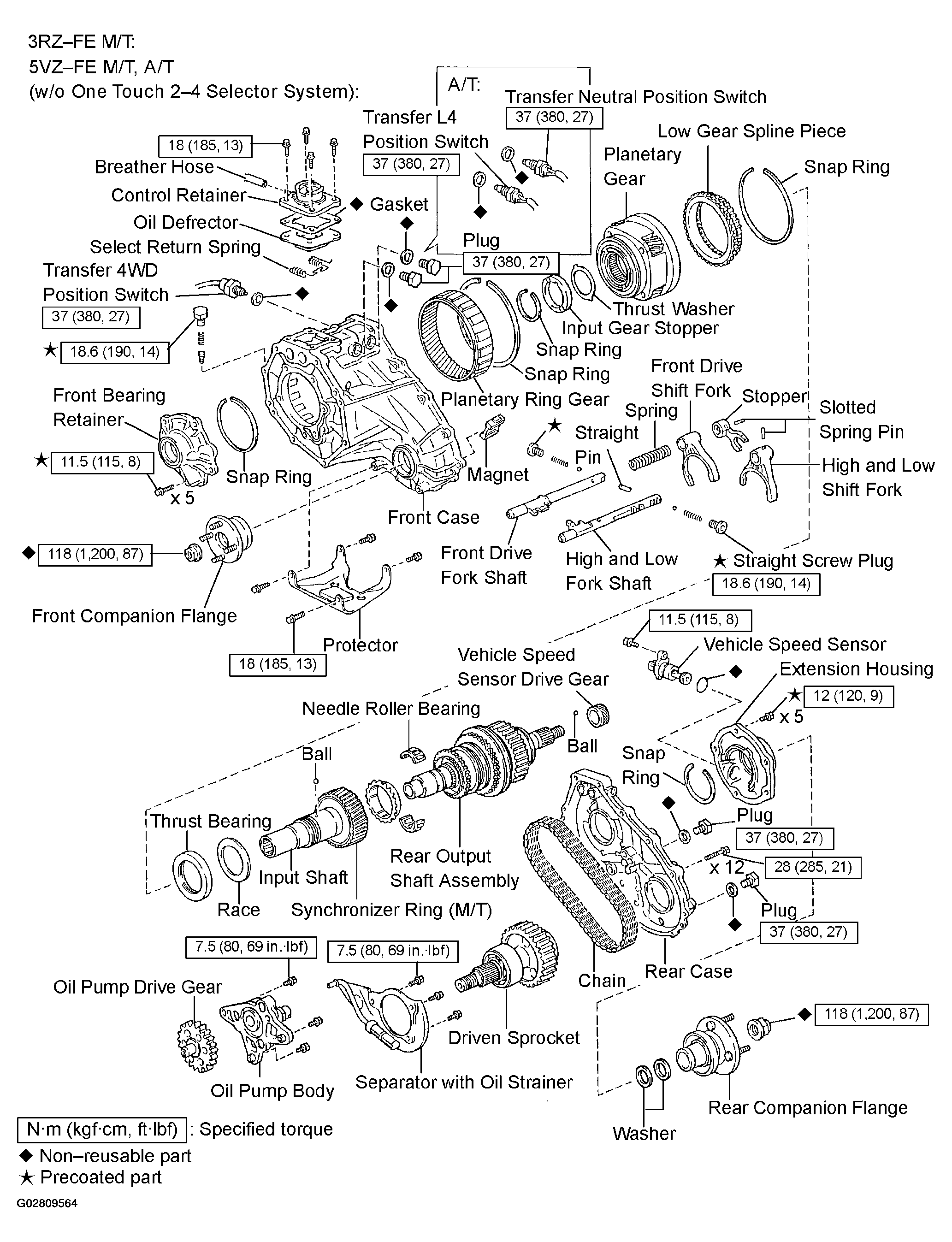

Fig 1: Identifying 3RZ-FE M/T & 5VZ-FE Transfer Assembly Components (W/O One Touch 2-4 Selector System)
G02809564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

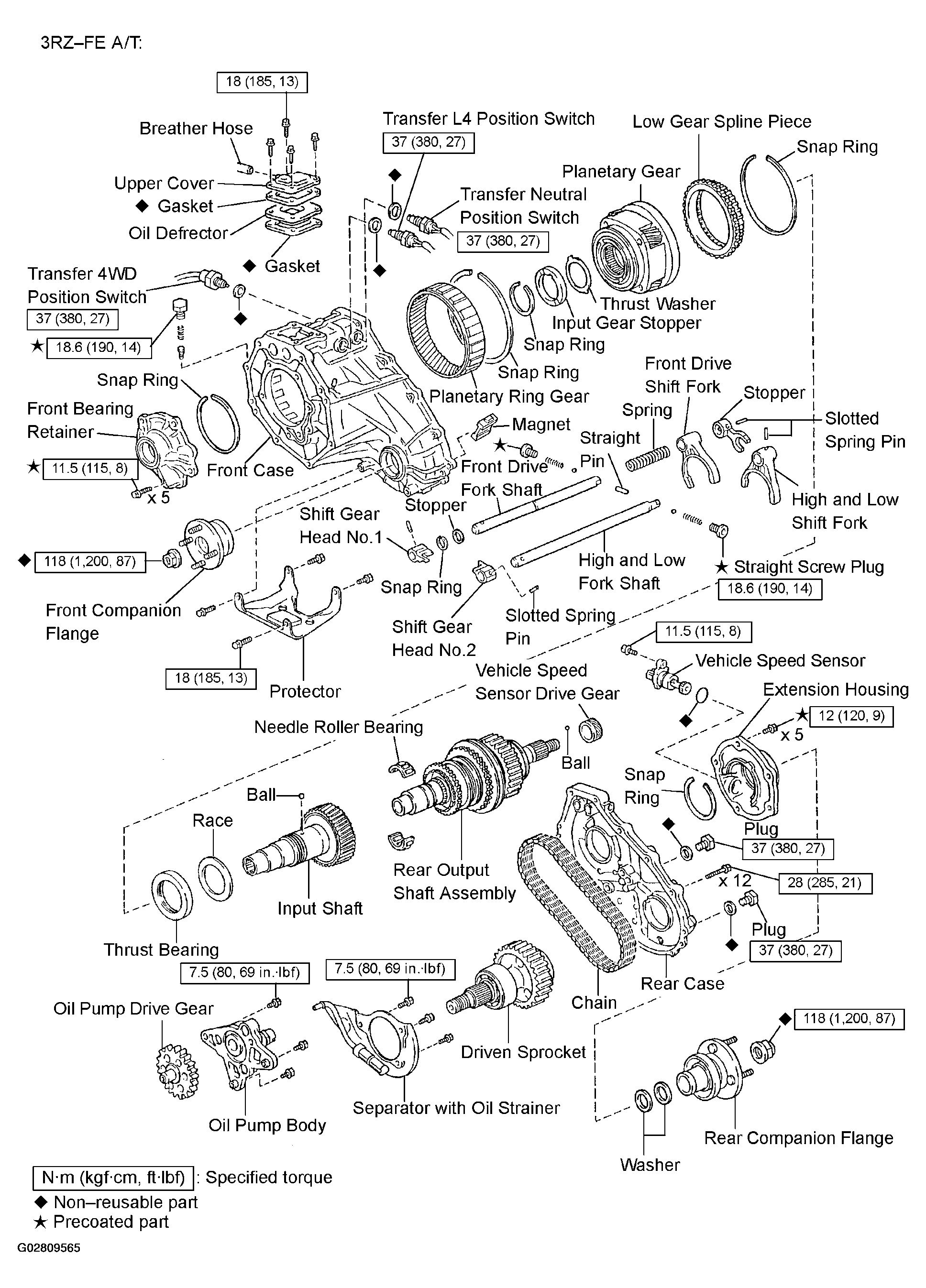

Fig 2: Identifying 3RZ-FE A/T Transfer Assembly Components
G02809565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

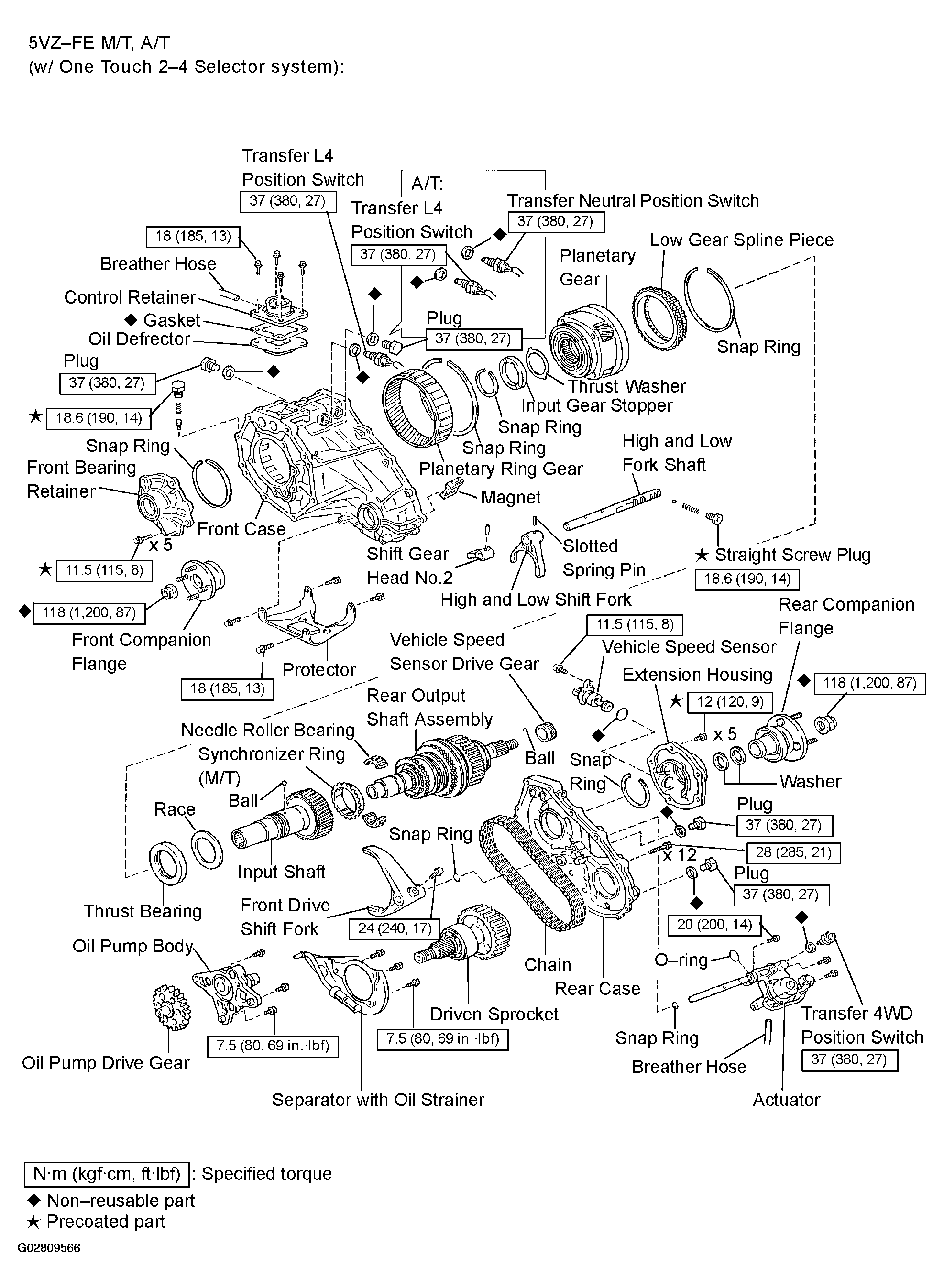

Fig 3: Identifying 5VZ-FE Transfer Assembly Components (W/One Touch 2-4 Selector System)
G02809566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
