Ignition-Controlled Automatic Door Lock/Unlock

The RS3200 PLUS is factory-set to automatically lock your vehicle's doors when you turn the ignition key to "ON" or "START", and unlock the doors when you turn the key back to "ACC" or "LOCK". To change the programming of this feature, follow the procedure shown below.

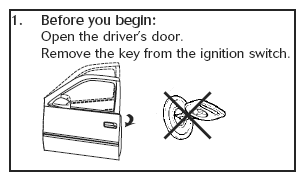

G06743016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

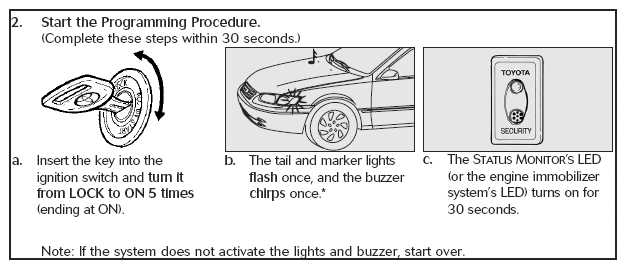

G06743017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

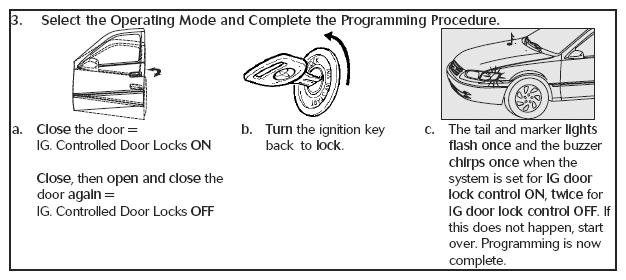

G06743018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

* If your vehicle is equipped with a buzzer.
