Wireless Door Lock Control System: Pre-Check

Only wireless function (Remote control) will not operate.
(If a new transmitter or a transmitter of the same type that works properly with the vehicle is not available.) See Fig 1-Fig 5 .
Wireless door lock buzzer does not chirp. See Fig 6.

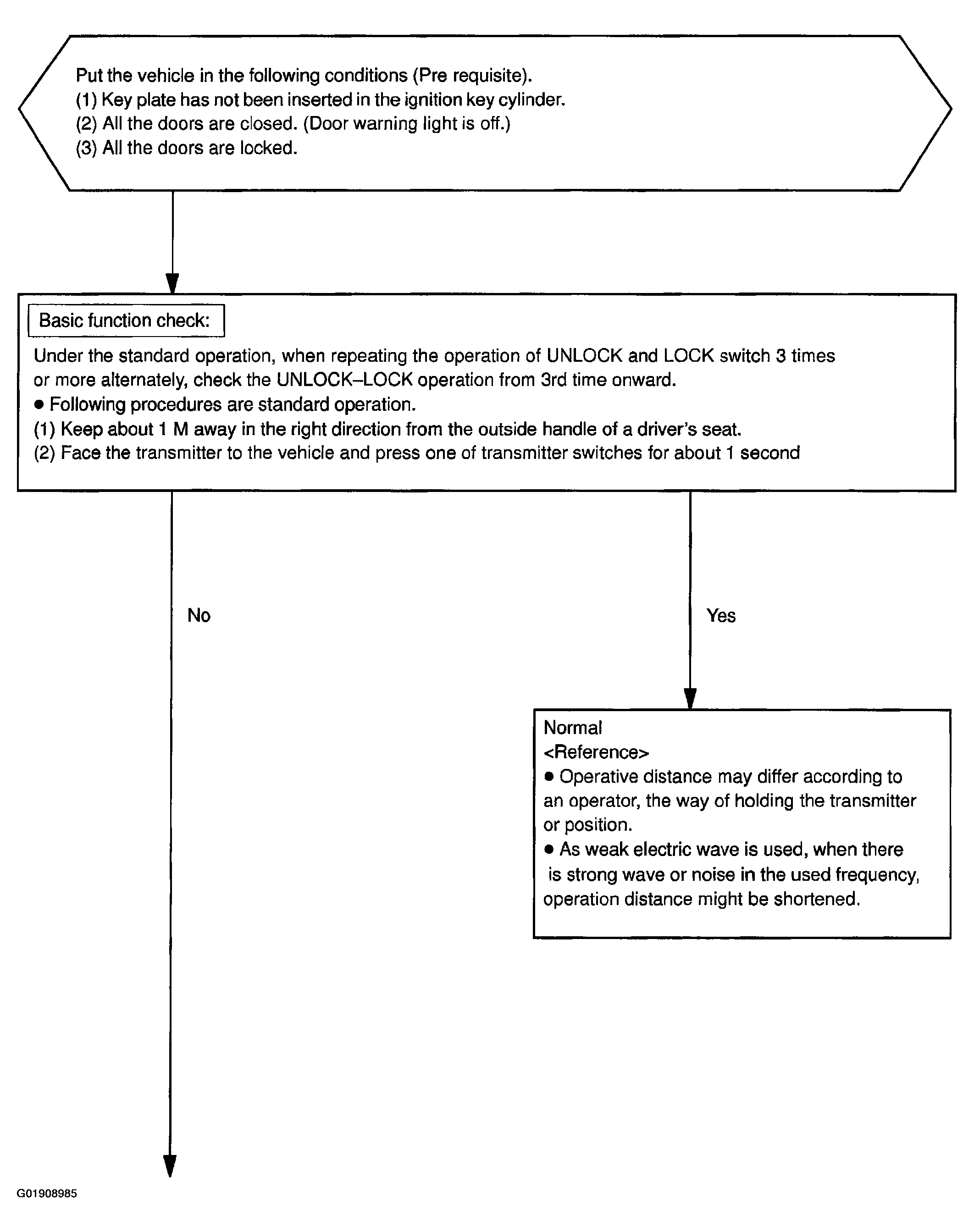

Fig 1: Troubleshooting Flow Chart (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

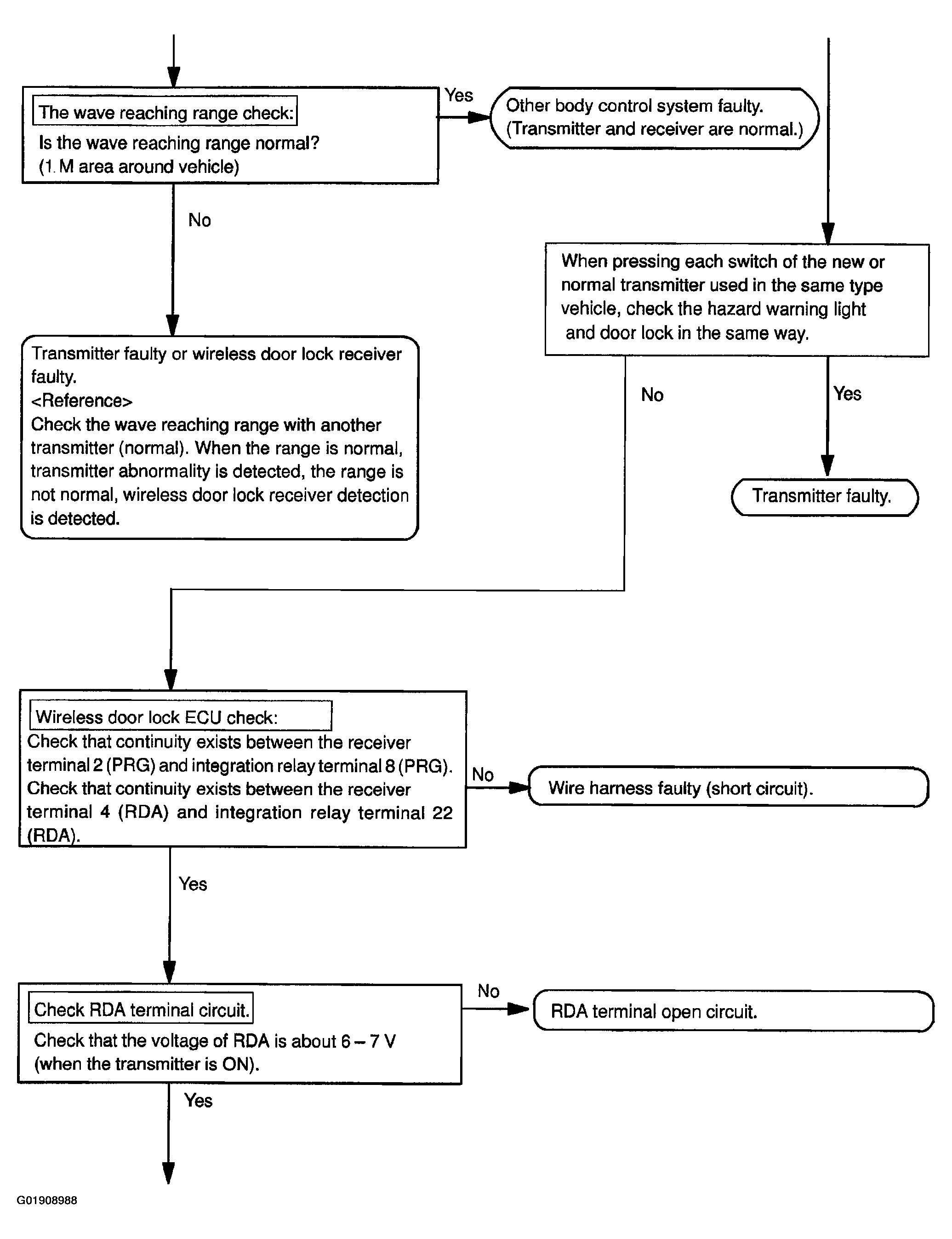

Fig 2: Troubleshooting Flow Chart (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

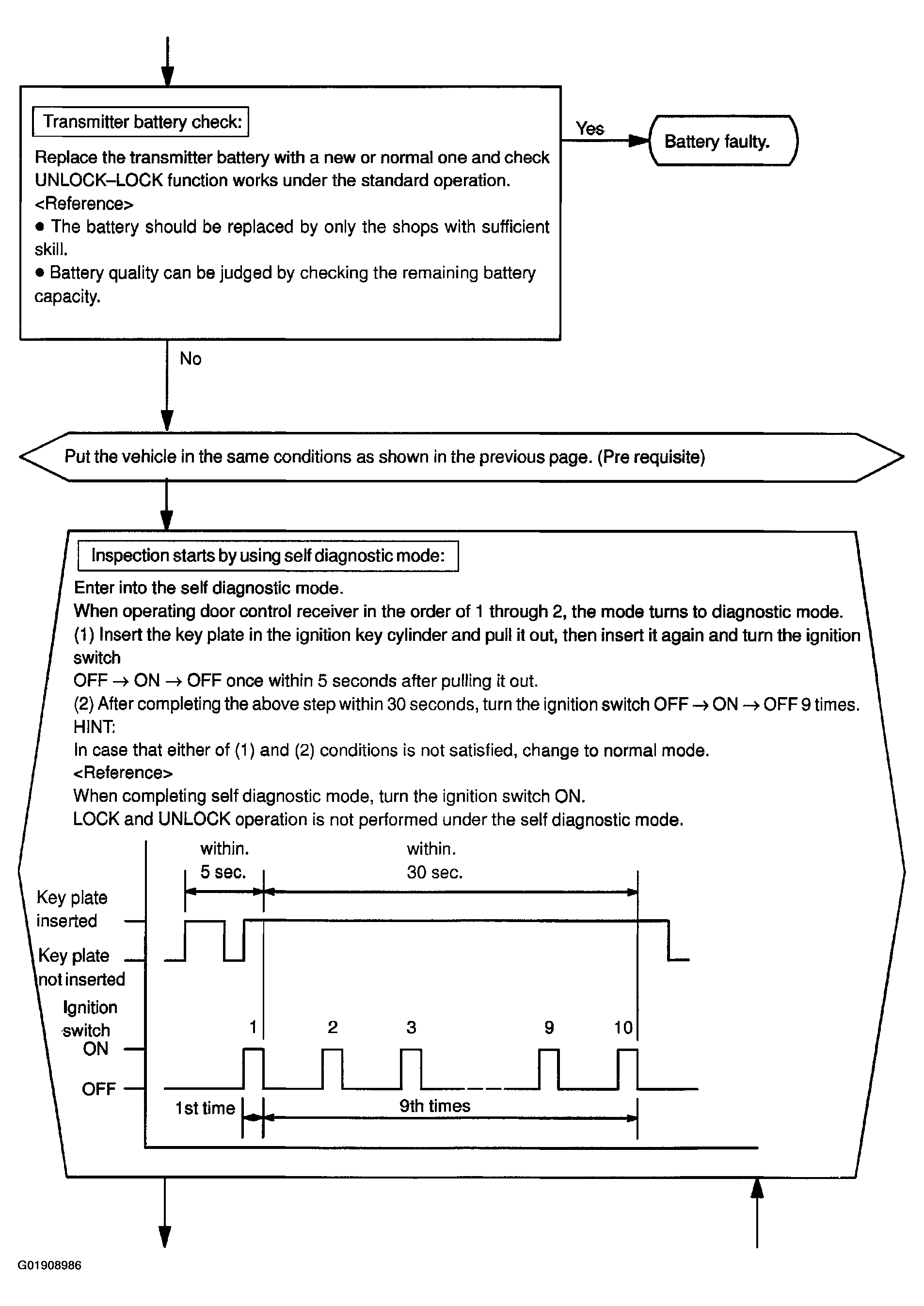

Fig 3: Troubleshooting Flow Chart (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

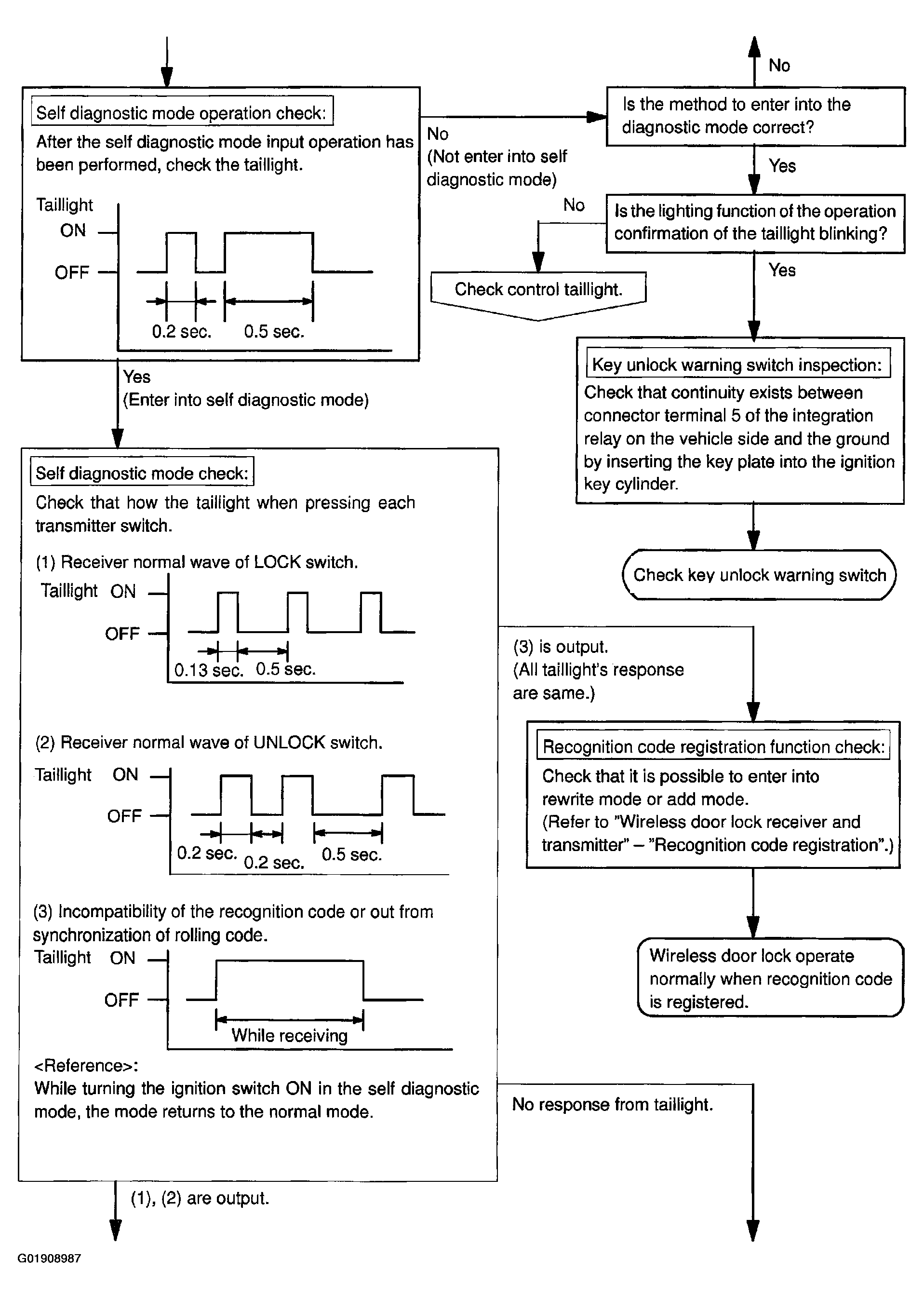

Fig 4: Troubleshooting Flow Chart (4 Of 5)

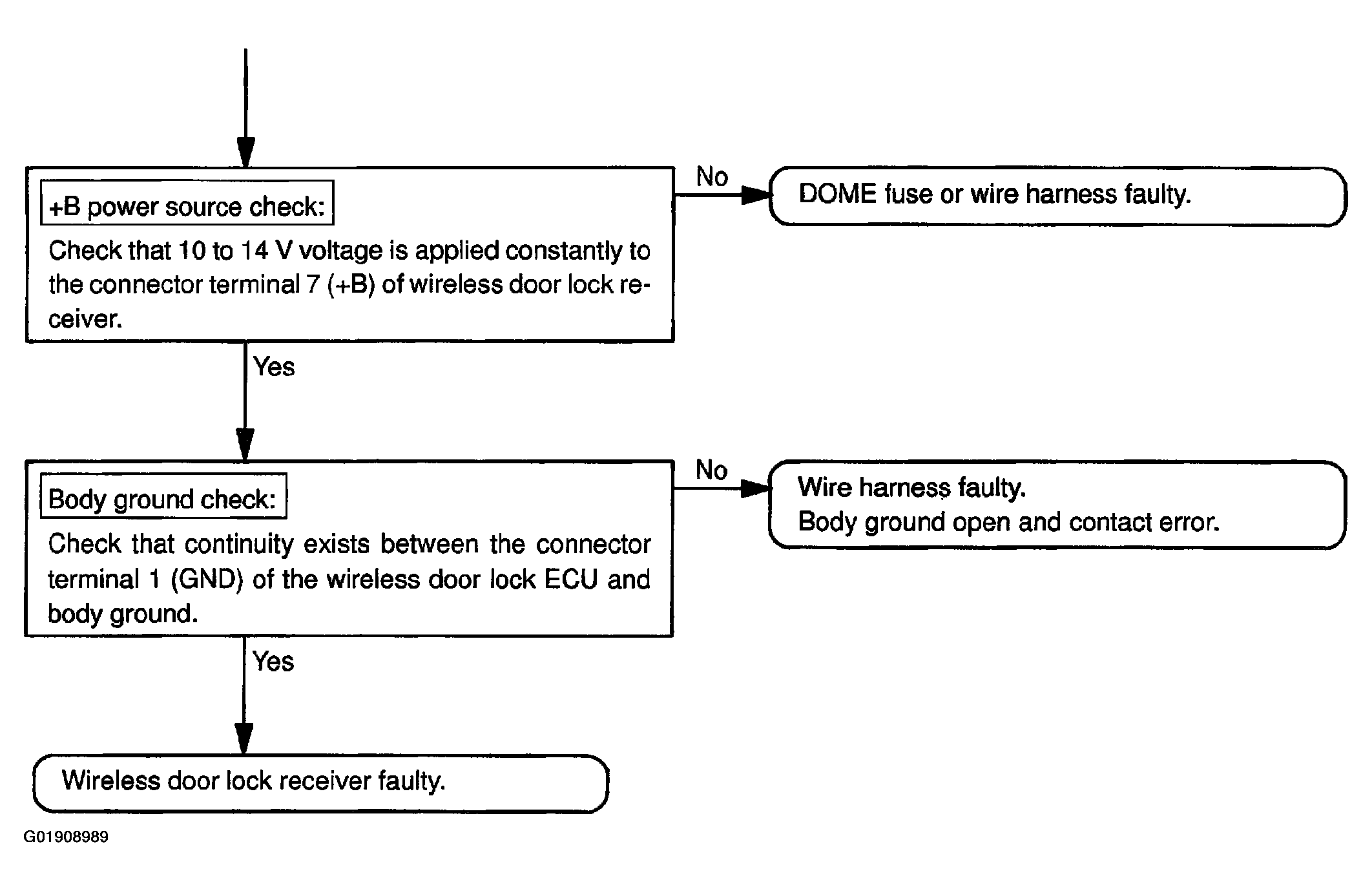

Fig 5: Troubleshooting Flow Chart (5 Of 5)

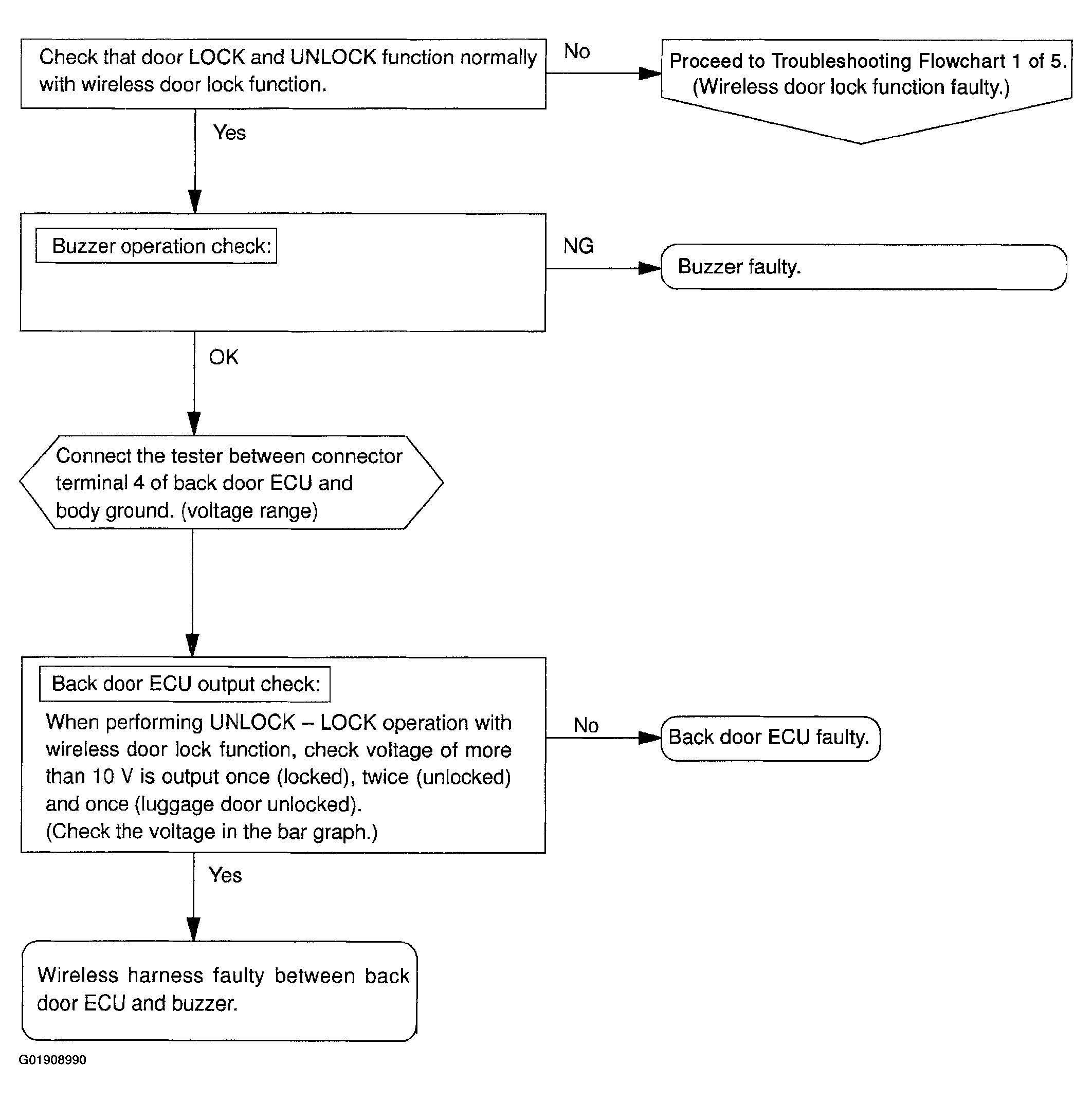

Fig 6: Wireless Door Lock Buzzer Troubleshooting Flow Chart (No Chirp)
