Ignition Switch And Key Unlock Warning Switch: Inspection

Inspect Ignition Switch Continuity :

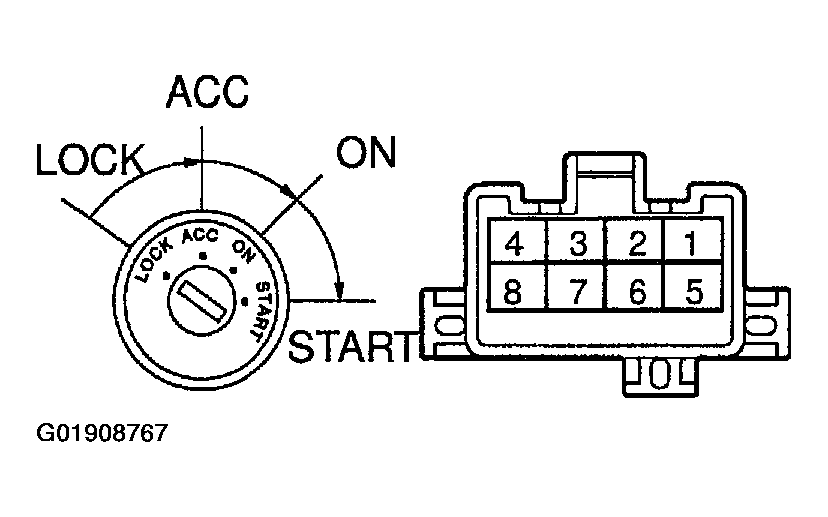

Fig 1: Identifying Key Positions & Locating Ignition Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

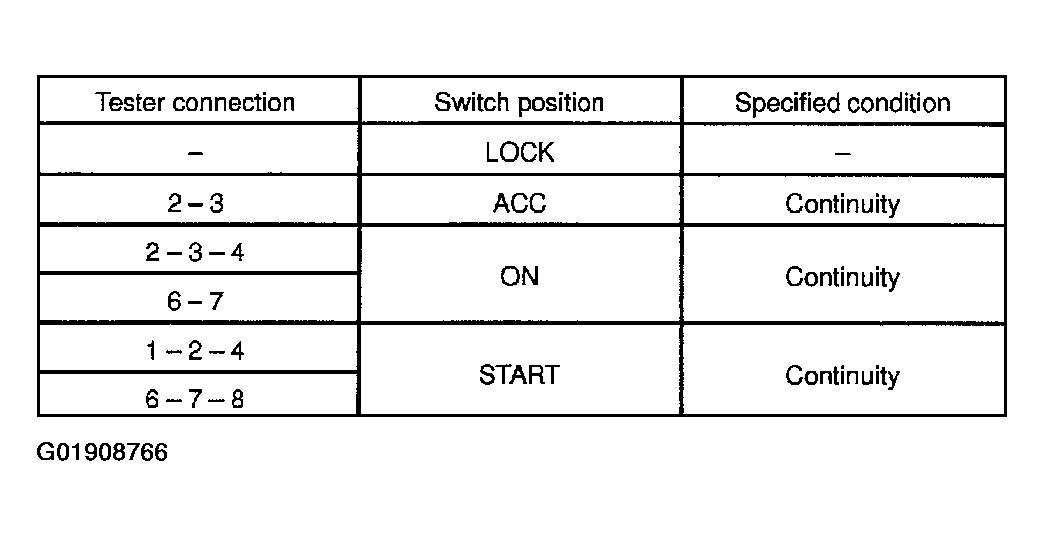

Fig 2: Key Position Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.
Inspect Key Unlock Warning Switch Continuity :

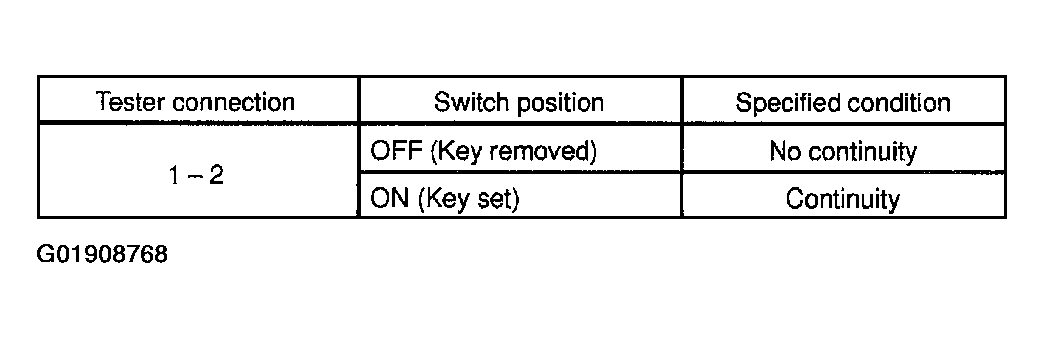

Fig 3: Key Unlock Warning Switch Continuity Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

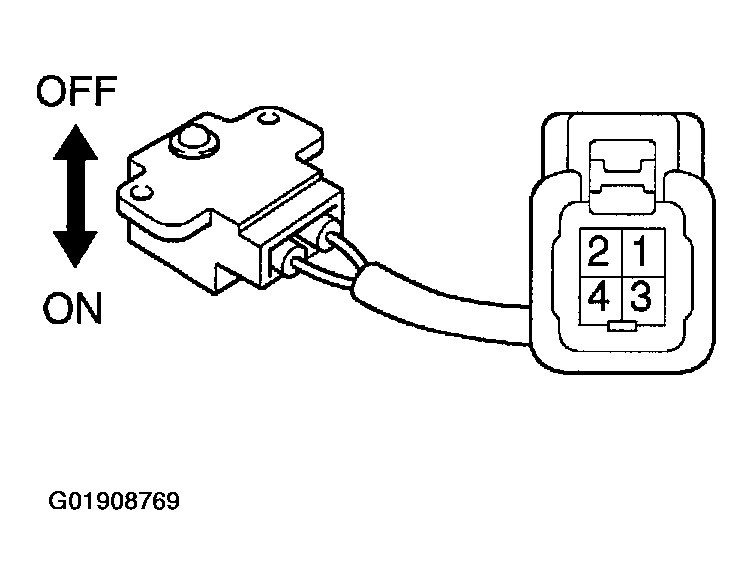

Fig 4: Identifying Key Unlock Warning Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.
