Pin Voltage Test

For pin voltages of ECU see Fig 1-Fig 3 .

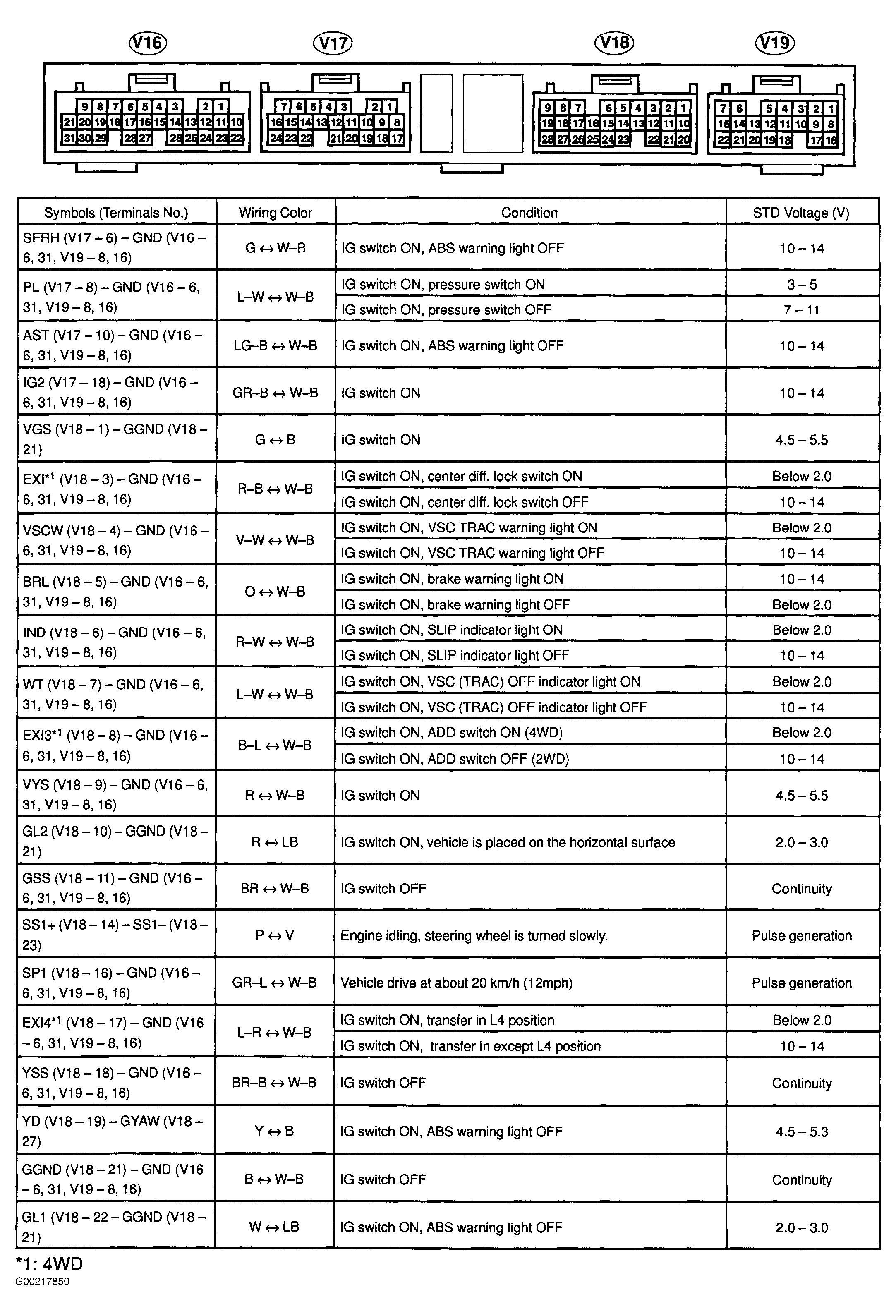

Fig 1: 4Runner ABS ECU Pin Voltage Chart (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

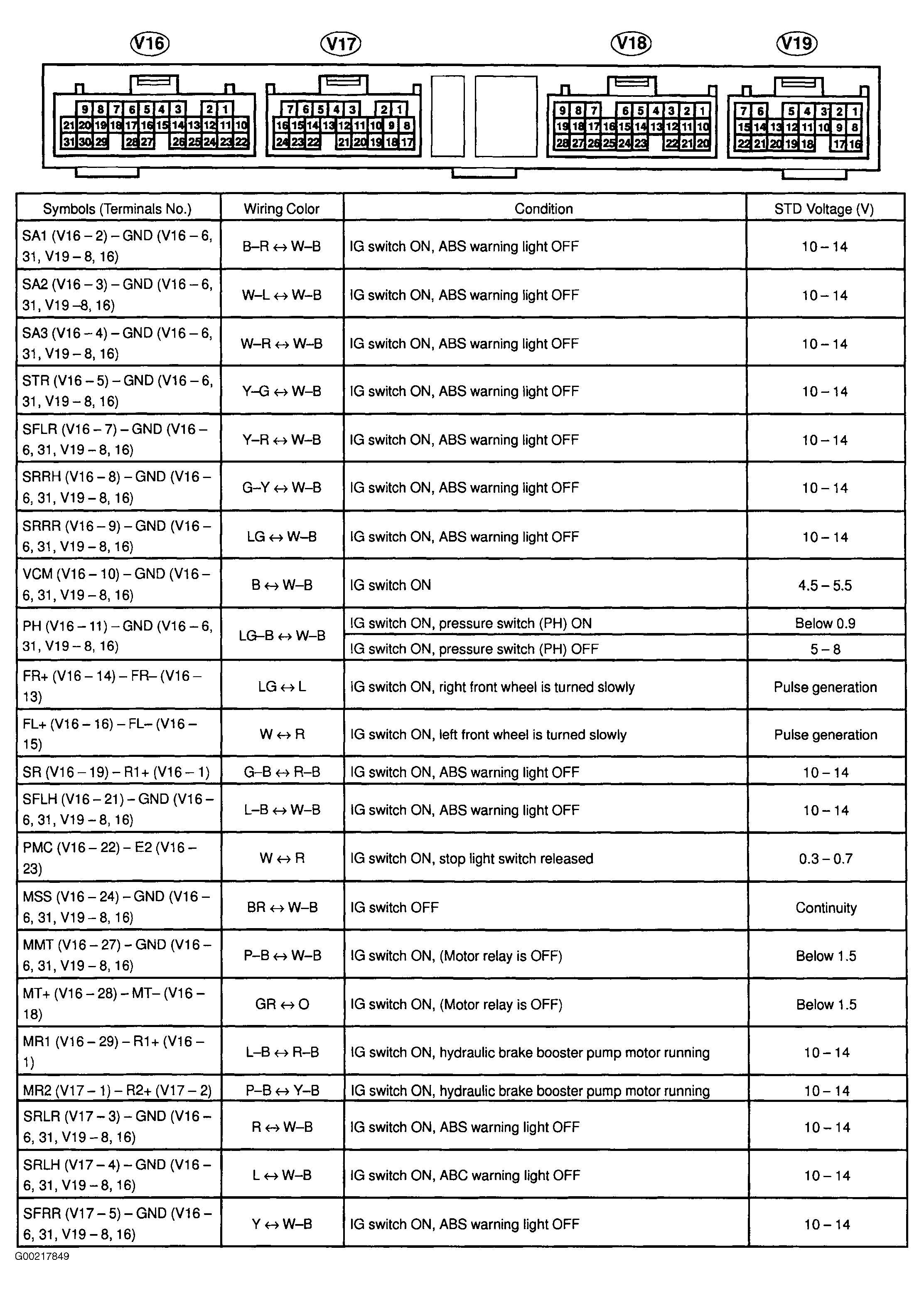

Fig 2: 4Runner ABS ECU Pin Voltage Chart (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

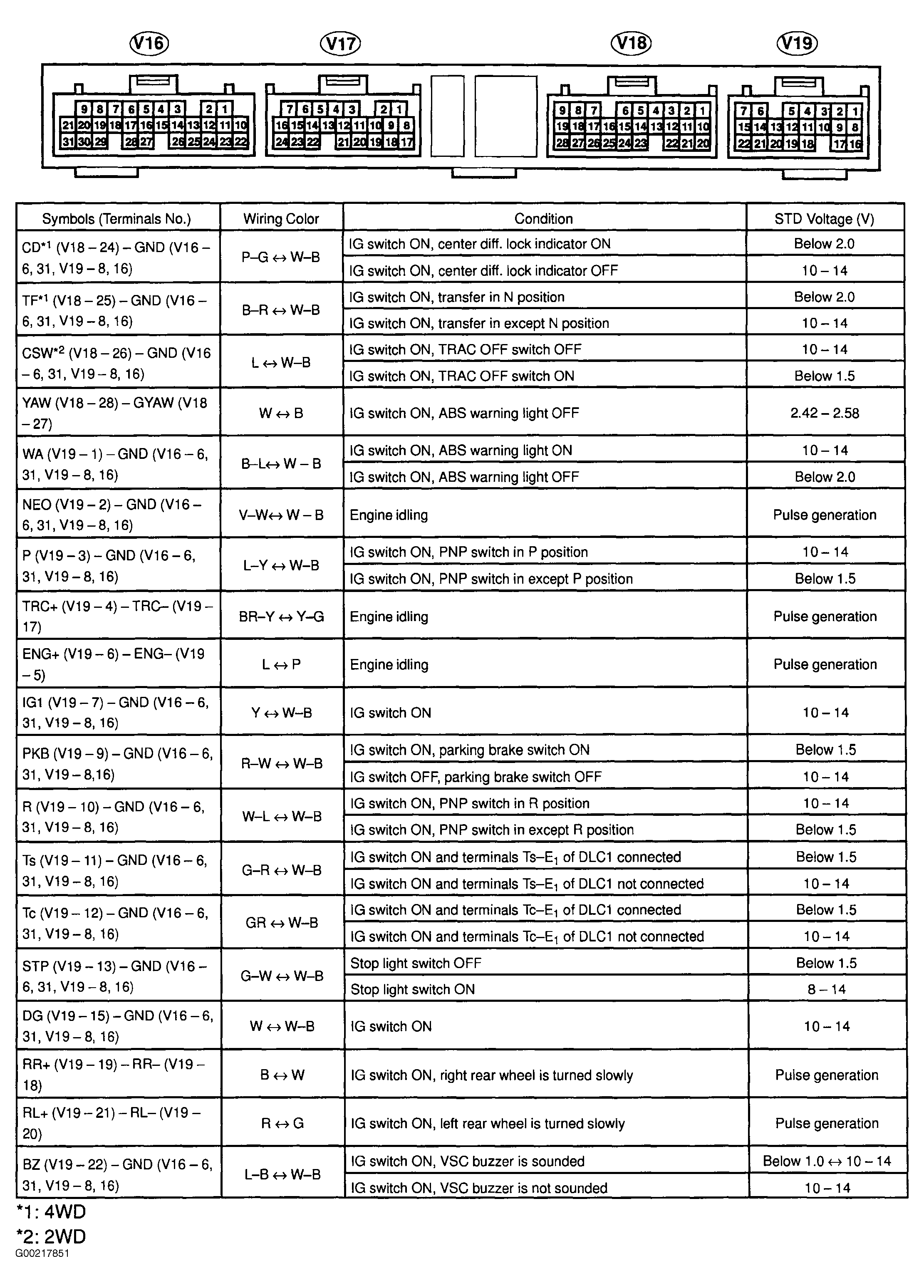

Fig 3: 4Runner ABS ECU Pin Voltage Chart (3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
