Charging System - Generators & Regulators: Generator: Removal

DISCONNECT WIRING FROM GENERATOR
1. Disconnect the connector from the generator.
2. Remove the nut and disconnect the wire from the generator.
REMOVE GENERATOR DRIVE BELT
Loosen the adjust lock nut, adjusting bolt and pivot bolt, and remove the drive belt.

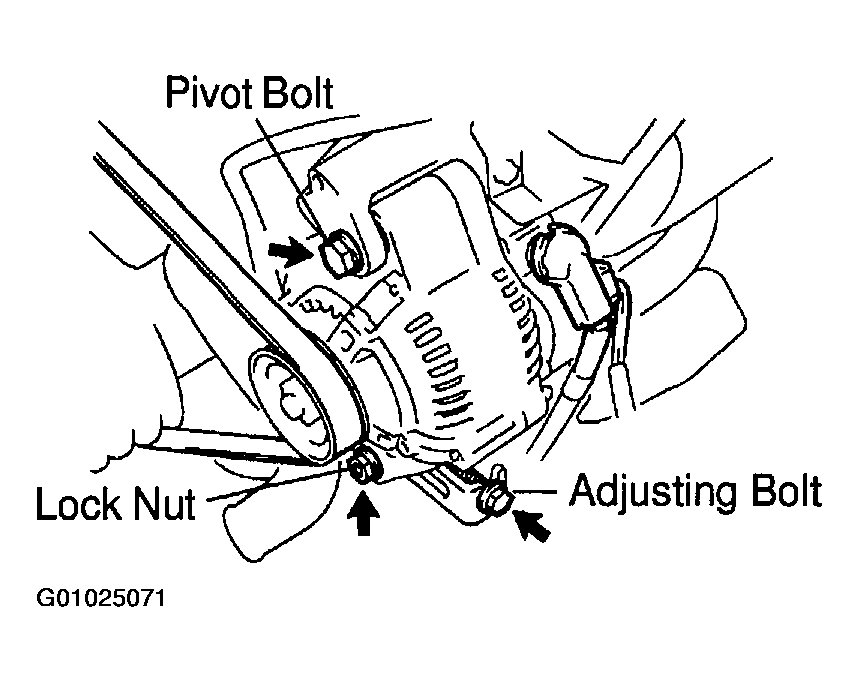

Fig 1: Removing Generator Drive Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR
1. Remove the pivot bolt and adjusting lock nut.

  Fig 2: Removing Generator Pivot Bolt & Adjusting Lock Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the generator.
  - Torque:
  - Pivot bolt: 51 N.m (520kgf.cm, 38 ft.lbf)
  - Lock Nut: 18.5 N.m (189kgf.cm, 25 ft.lbf)
