Oil Cooler: Installation

  1. Install oil cooler.
    1. Clean the oil cooler contact surface on the oil cooler mounting.
    2. Place a new O-ring to the oil cooler.
    3. Apply a light coat of engine oil on the threads and under the head of the union bolt.
    4. Install the oil cooler, New gasket and union bolt.
      1. Torque: 59 N.m (600 kgf.cm, 43 ft.lbf)

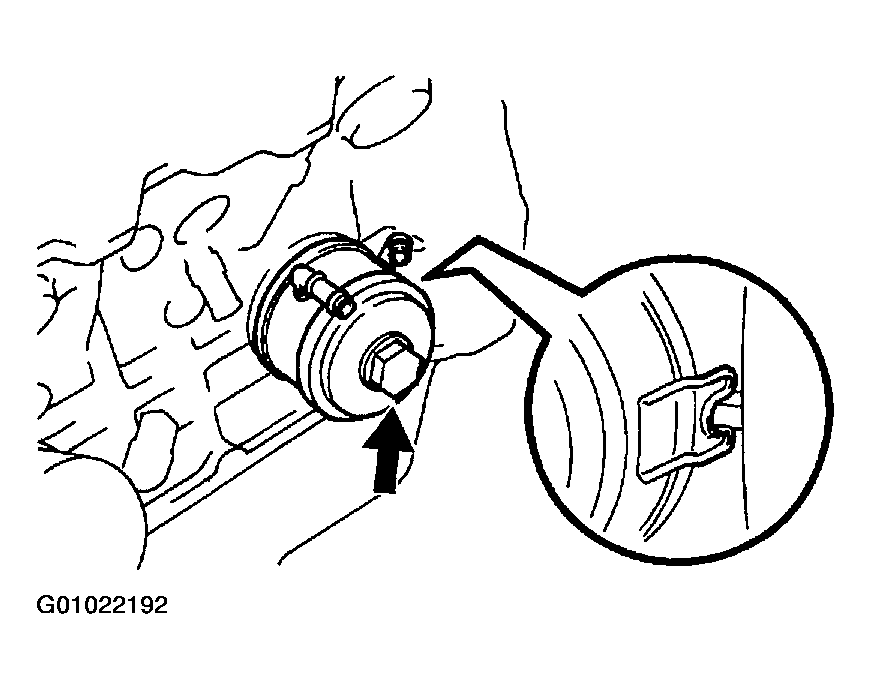

      Fig 1: Installing Oil Cooler
      G01022192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Connect oil cooler hoses.

    Connect the No.1 and No.2 oil cooler hoses.

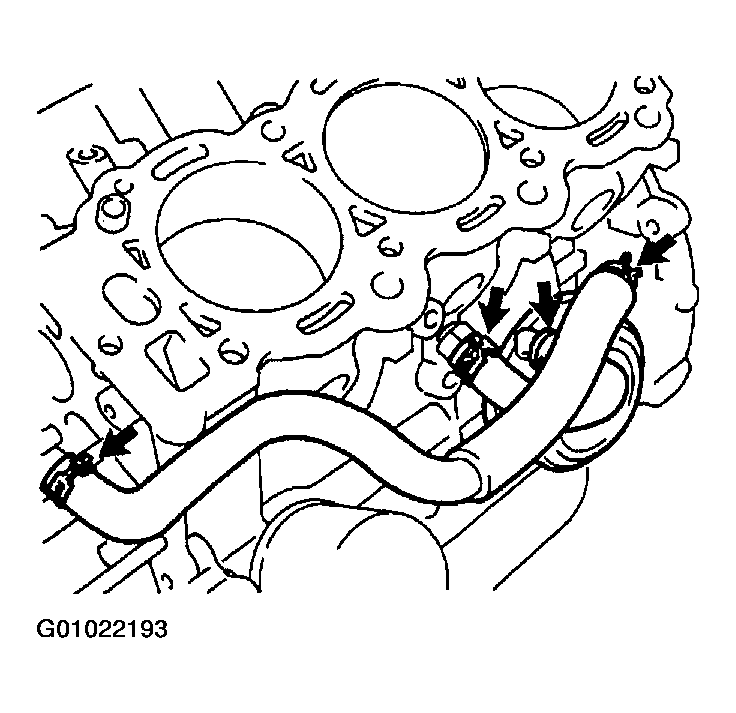

    Fig 2: Connecting Oil Hoses
    G01022193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Fill with engine coolant.
  4. Start engine and check for coolant and engine oil leaks.
