Cruise Main Indicator Light

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For cruise main indicator light testing procedure, see Fig 1 and Fig 2 .

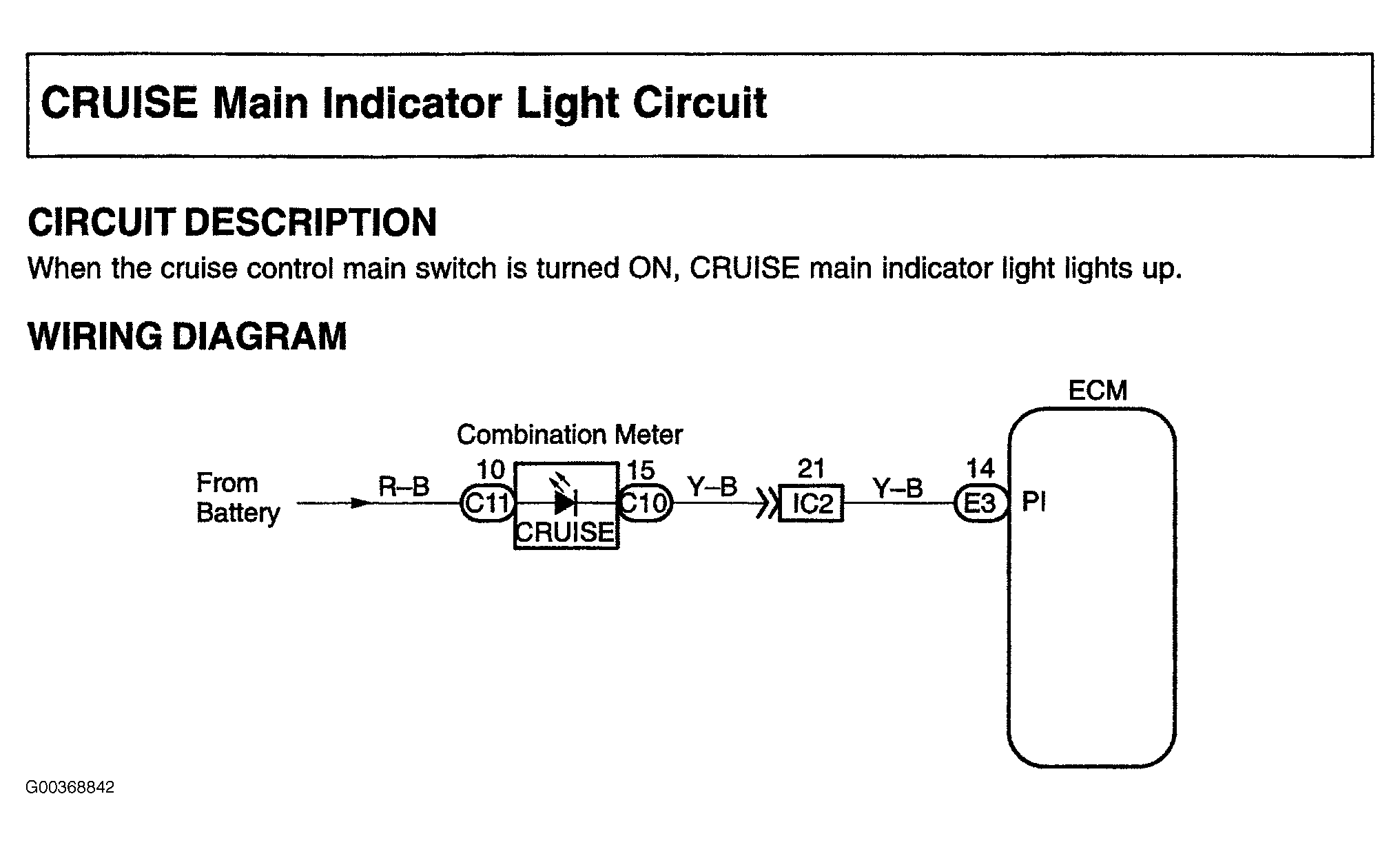

Fig 1: Testing Cruise Main Indicator Light (1 Of 2)
G00368842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

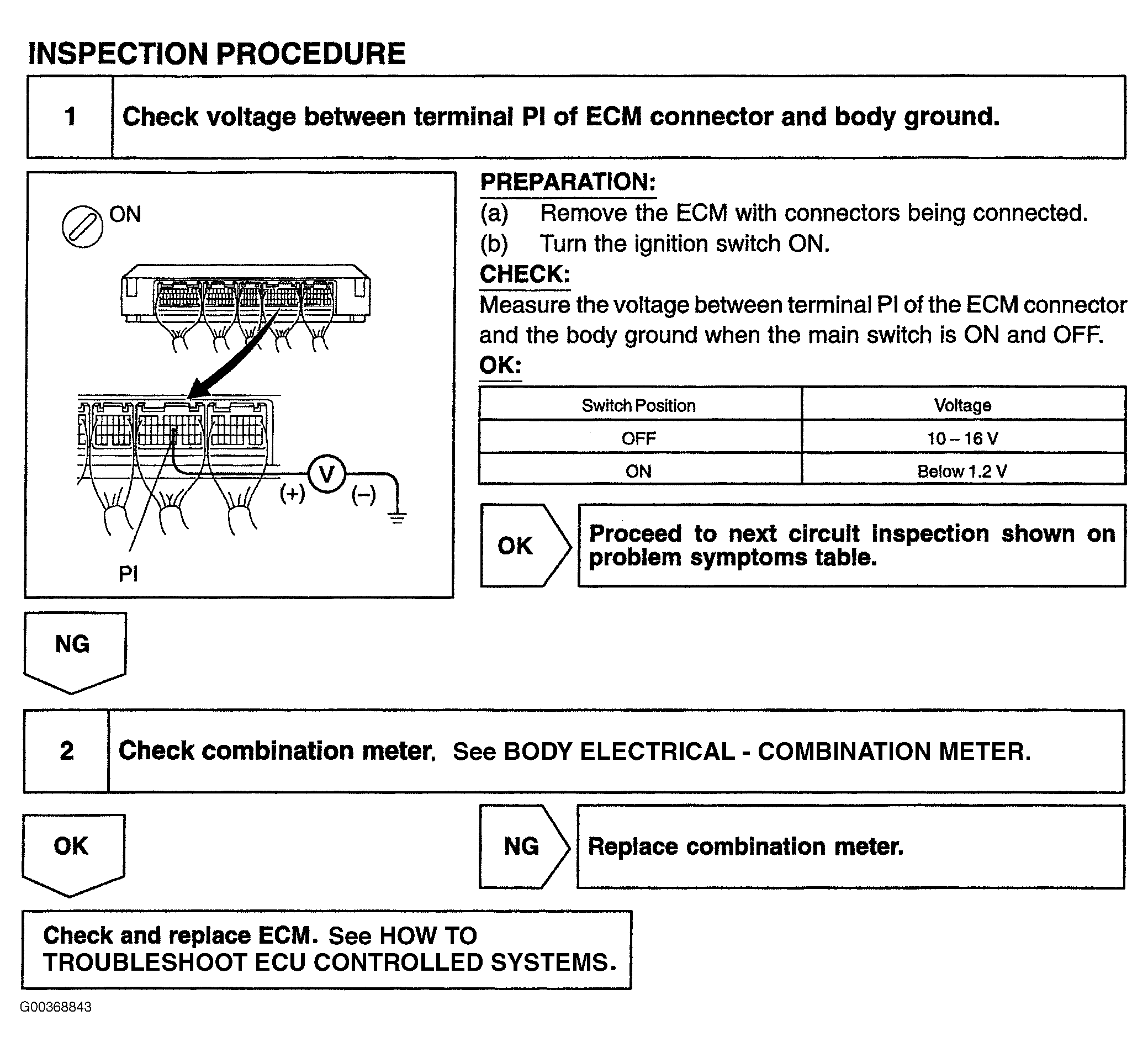

Fig 2: Testing Cruise Main Indicator Light (2 Of 2)
G00368843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
