Front Speed Sensor Removal

  1. Disconnect speed sensor connector  .
    1. Remove the fender liner.
    2. Disconnect the speed sensor connector.

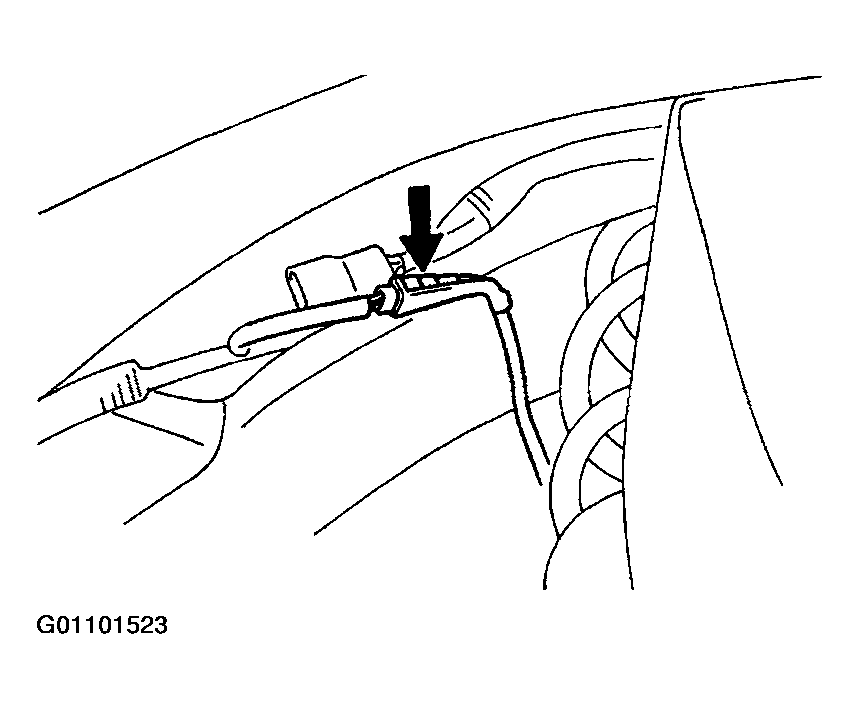

      Fig 1: Locating Speed Sensor Connector
      G01101523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove speed sensor  .
    1. Remove the 2 clamp bolts holding the sensor harness to the body and shock absorber.

      Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

    2. Remove the bolt and speed sensor from the steering knuckle.

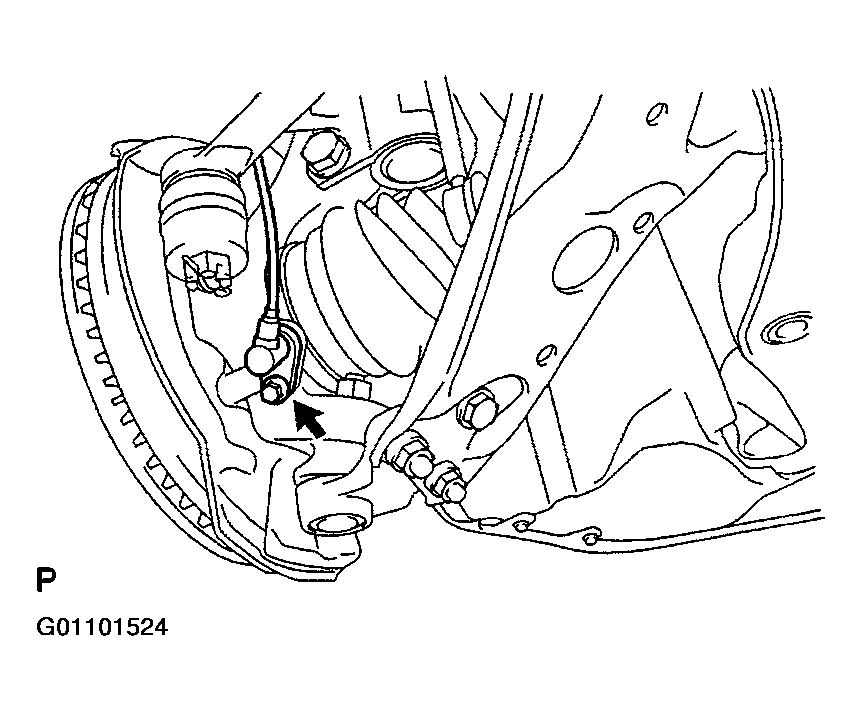

      Fig 2: Locating Speed Sensor Mounting Bolt
      G01101524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
