Tilt Steering Column: Components

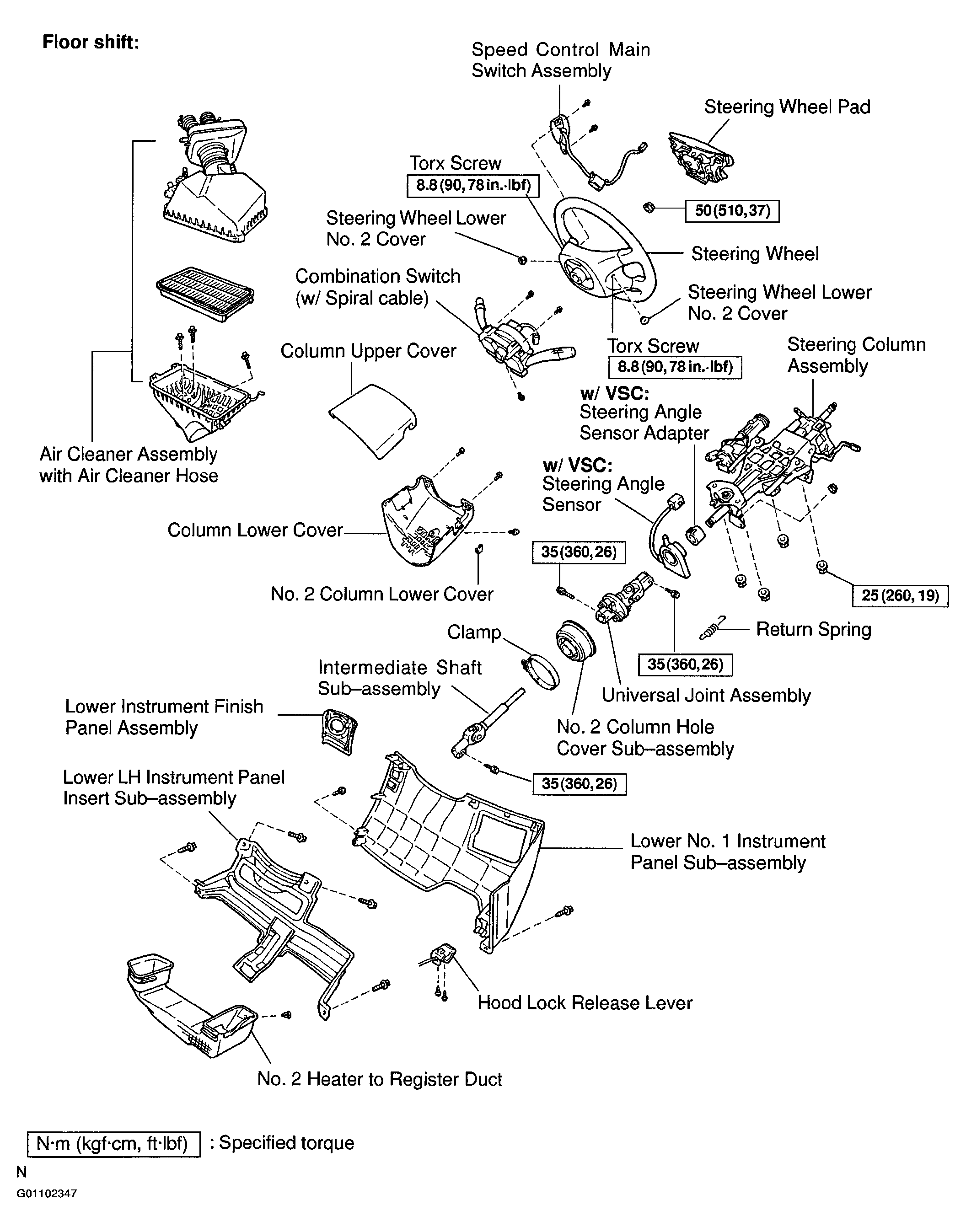

Fig 1: Identifying Tilt Steering Column Components (Floor Shift )
G01102347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

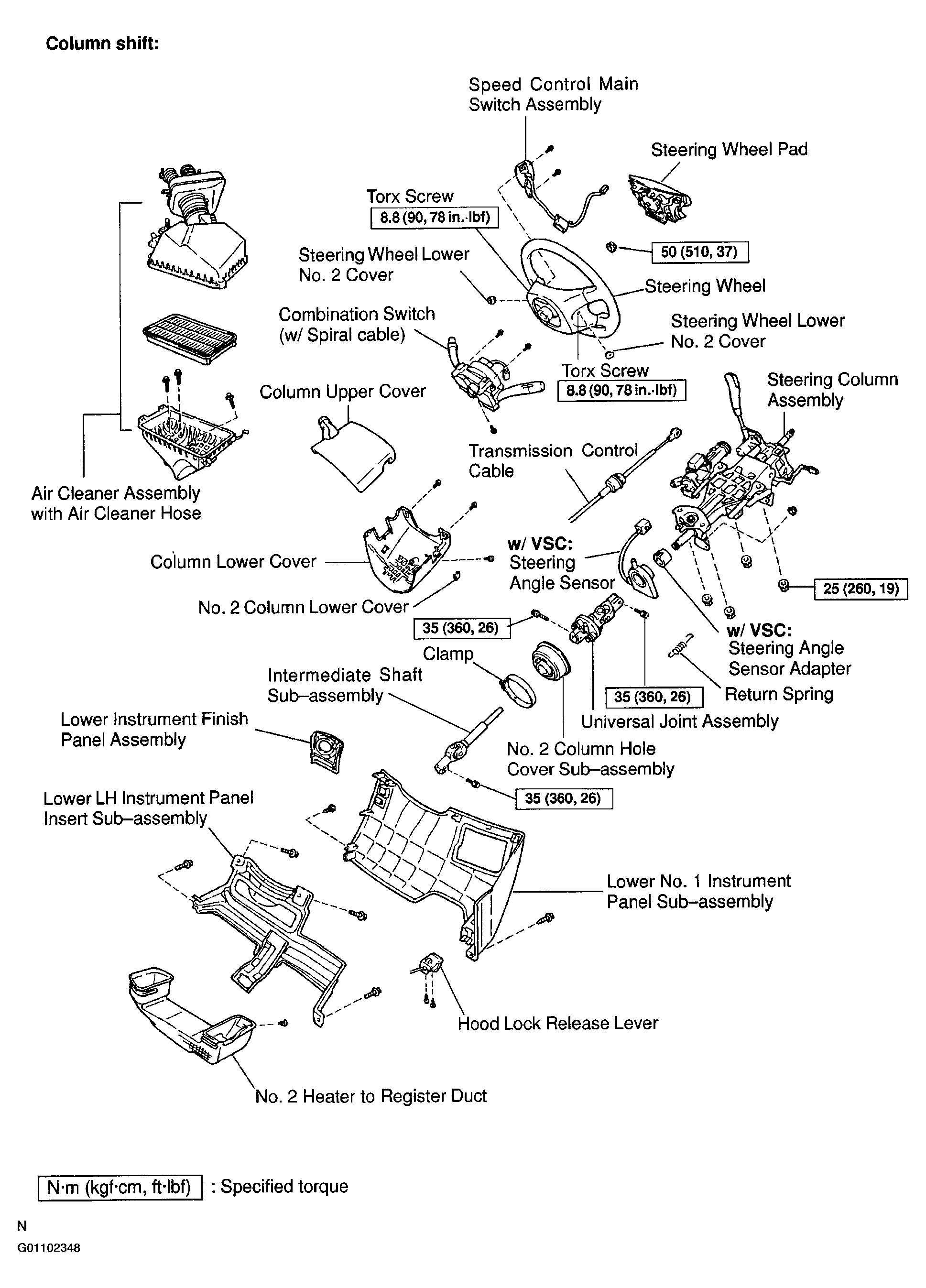

Fig 2: Identifying Tilt Steering Column Components (Column Shift )
G01102348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

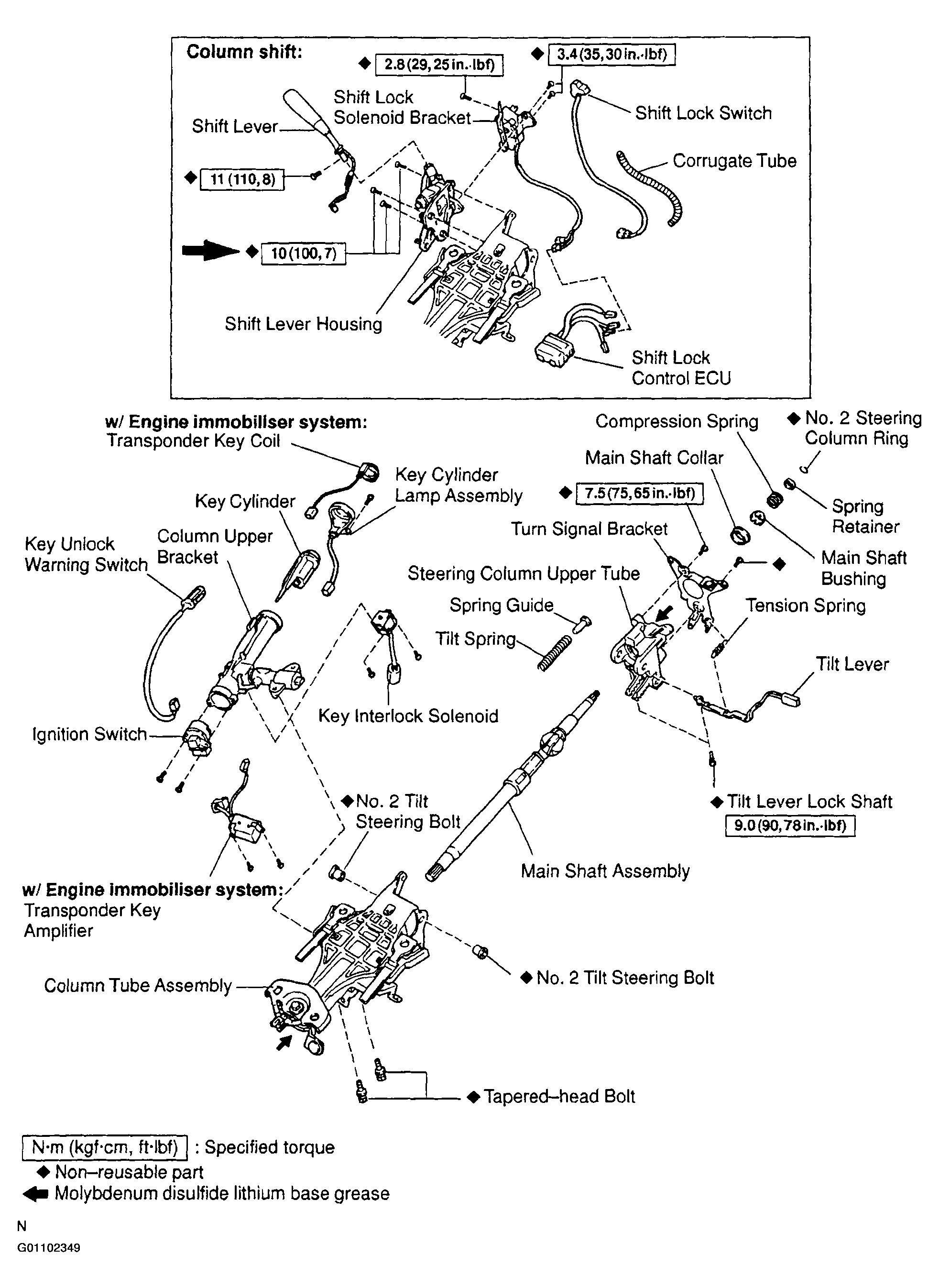

Fig 3: Exploded View Of Identifying Tilt Steering Column
G01102349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
