Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

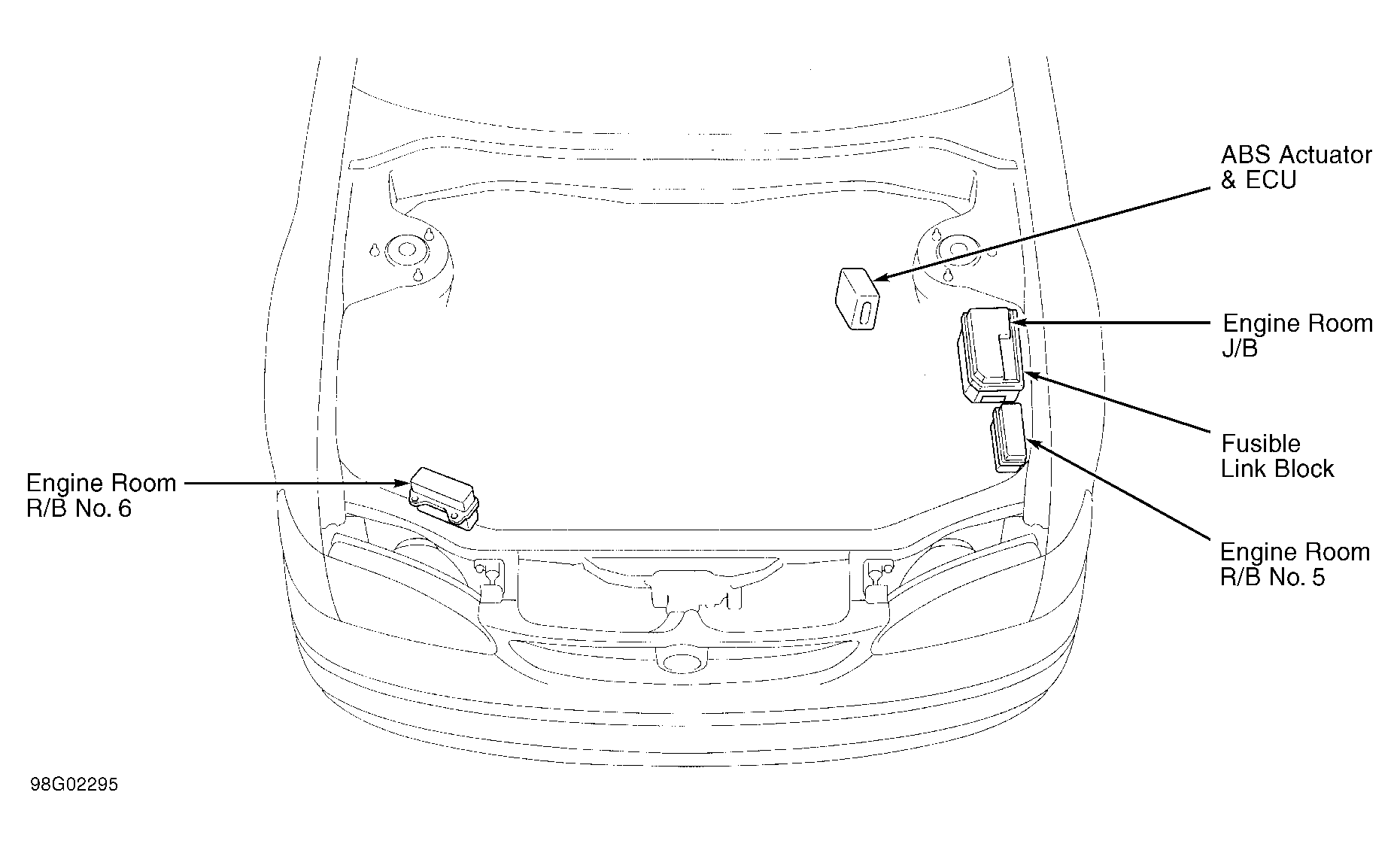

| ABS Actuator & ECU | On left rear of engine compartment. See Figure. |

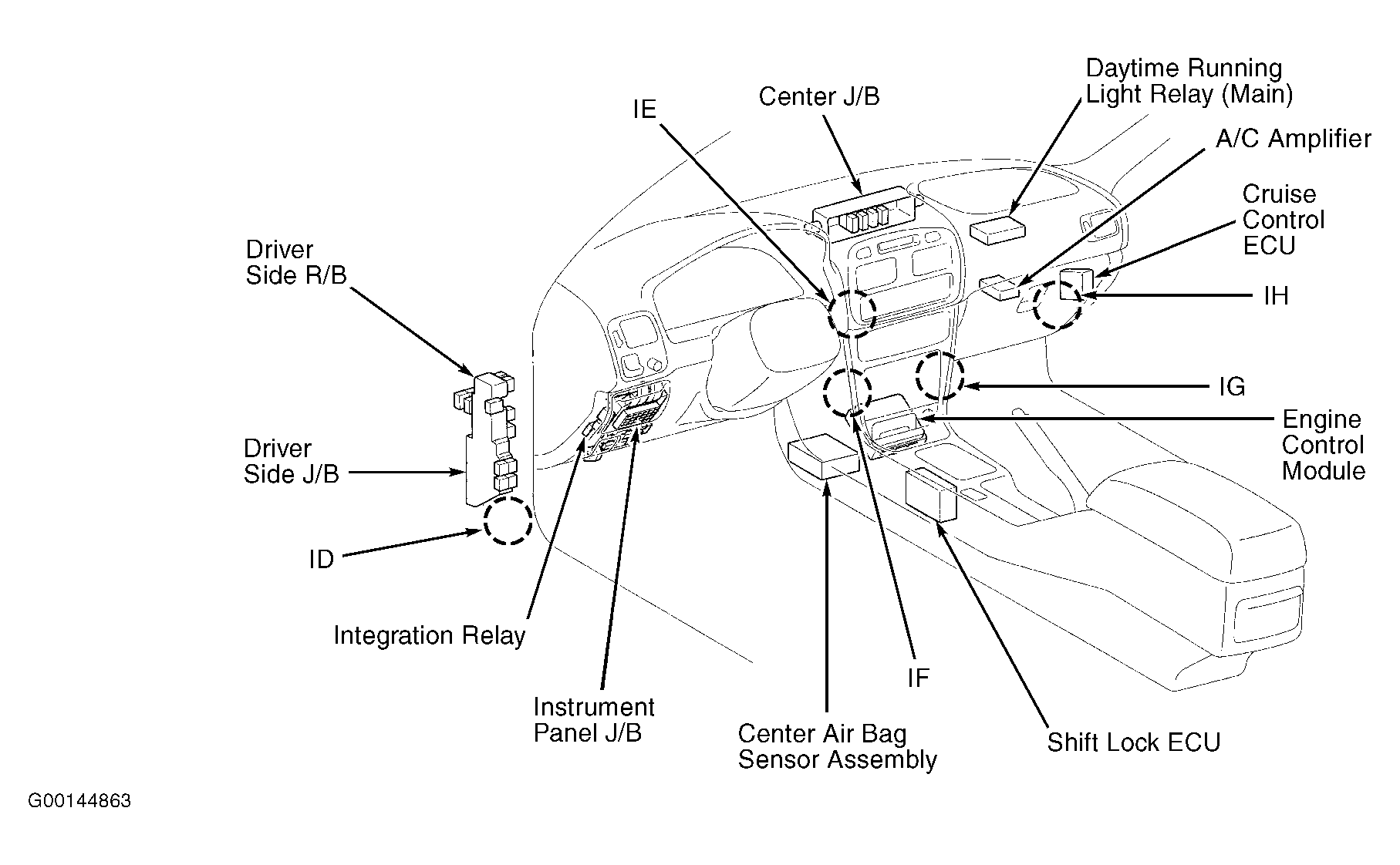

| A/C Amplifier | Behind dash, above glove box. See Figure. |
| Center Air Bag Sensor Assembly | Below front of center console. See Figure. |
| Cruise Control ECU | Behind right kick panel. See Figure. |
| Engine Control Module | Below center of dash. See Figure. |
| Shift Lock ECU | Below center console, forward of park brake lever. See Figure. |
