Exhaust System: Replacement

  1. Combination of center pipe  :

    The combination of the re-using, re-newing parts and joint portion are as follows:

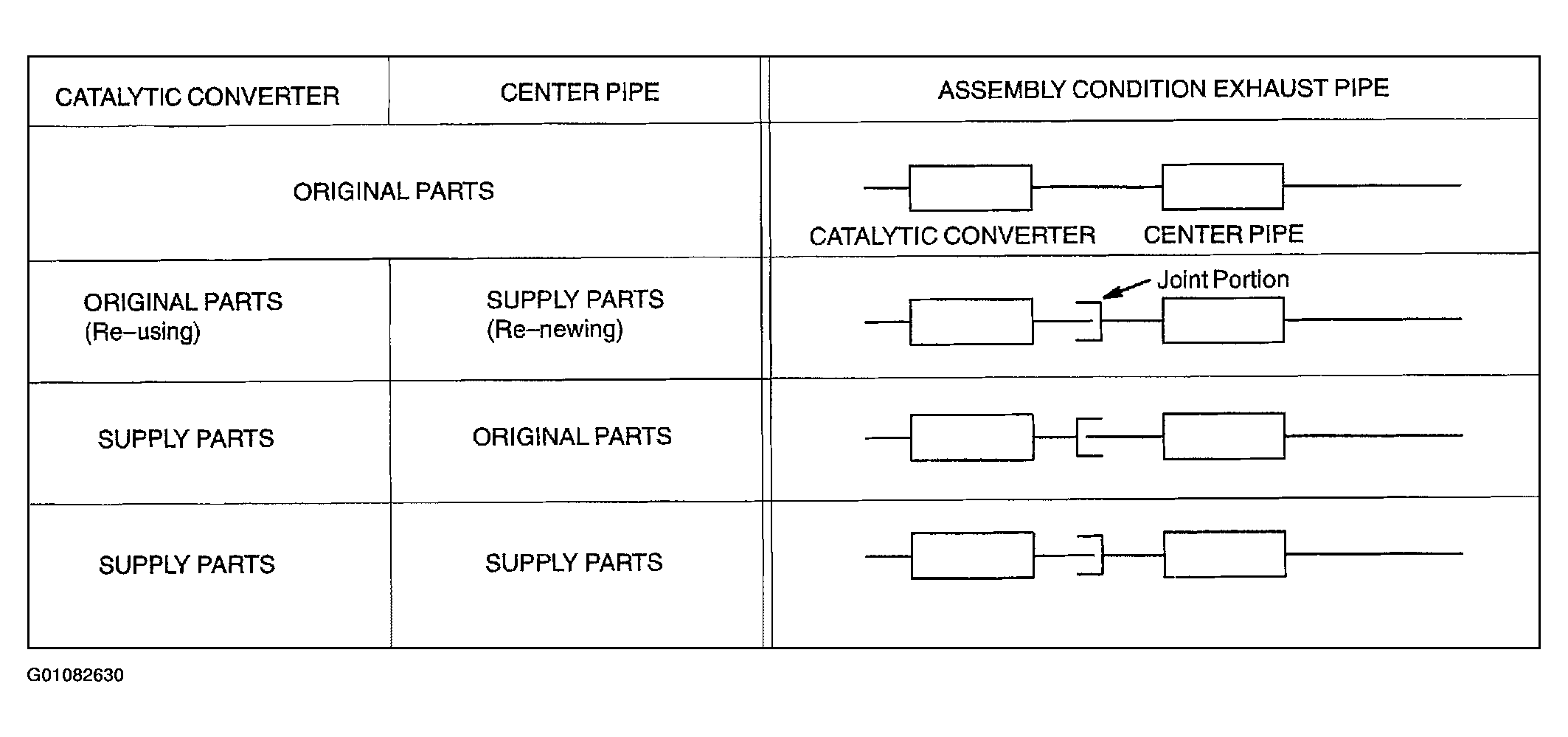

    Fig 1: Exhaust System Component Replacement Chart
    G01082630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. WARNING: Be sure to remove the burr at the cutting portion.

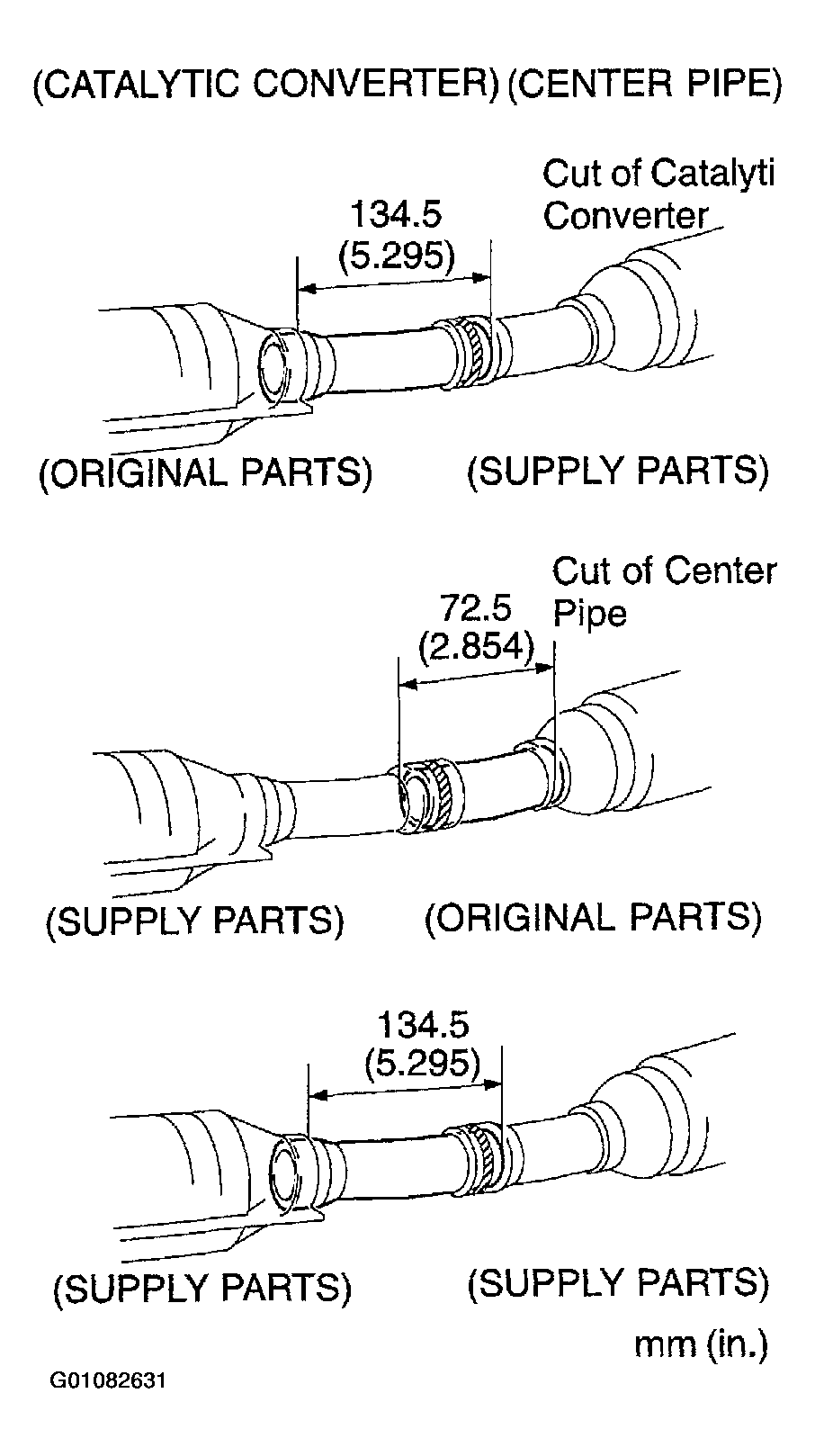

    Fig 2: Measuring Component Lengths
    G01082631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Cut of center pipe  :

    When exchanging with the supply part, remove the exhaust pipe from the vehicle and cut it at the measured position shown in the illustration.

  3. Installation of center pipe and catalytic converter  :
      NOTE: Install exhaust pipe clamp in the middle where the pipes are overlapped.
      Fig 3: Identifying Proper Clamp Installation
      G01082632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. As shown in the illustration, install exhaust pipe clamp and torque it temporary.
    2. Install it under the condition of step 3( a) and confirm that there is no friction between each support bracket and the body. then, torque exhaust pipe clamp. Torque: 68 N.m (700 kgf.cm, 50 ft.lbf)  .
