Home >> Toyota >> 2002 >> ECHO 2D Sedan, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System >> Power Window Control System >> Location

Power Window Control System: Location

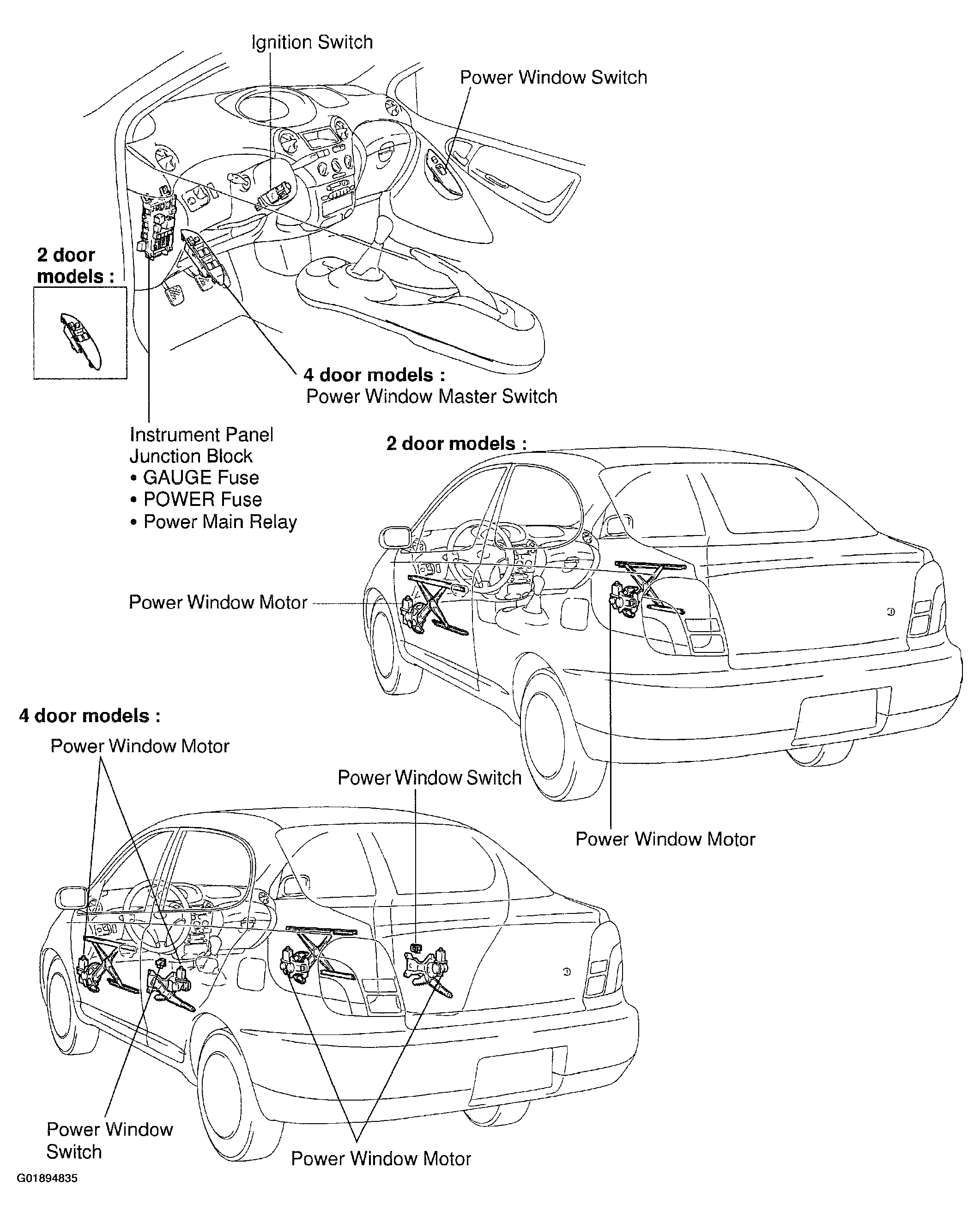

Fig 1: Locating Power Window Control System Components

G01894835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
