Diagnostic Trouble Code Chart

HINT:

• Using SST 09843-18020 or 09843-18040, connect the terminals Tc and E₁ of DLC1 or Tc and CG of DLC3, and remove the short pin.
• If any abnormality is not found when inspecting parts, inspect the ECU.
• If a malfunction code is displayed during the DTC check, check the circuit listed for that code. For details of each code, see appropriate DTC for respective "DTC No." in the DTC chart.

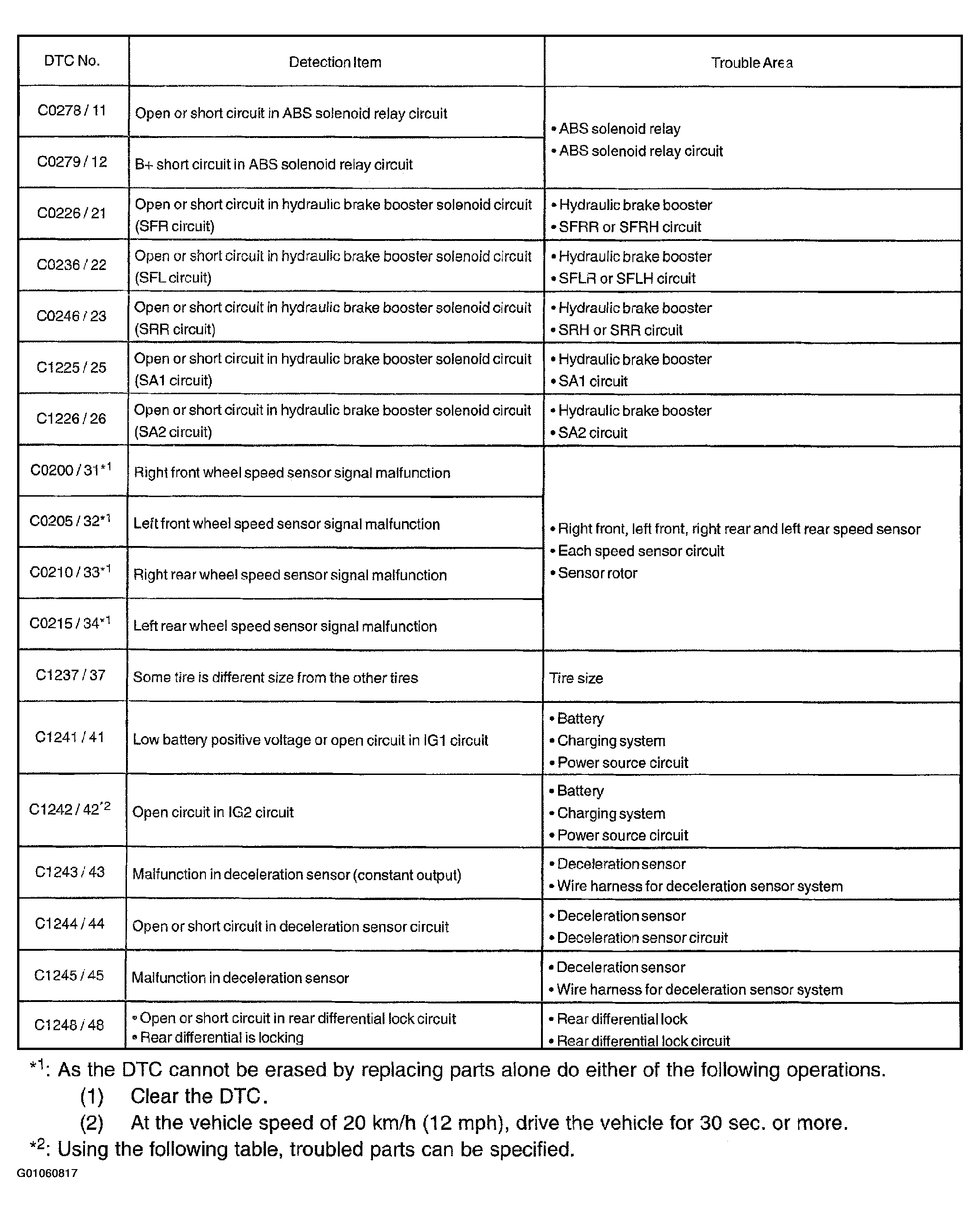

Fig 1: DTC Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

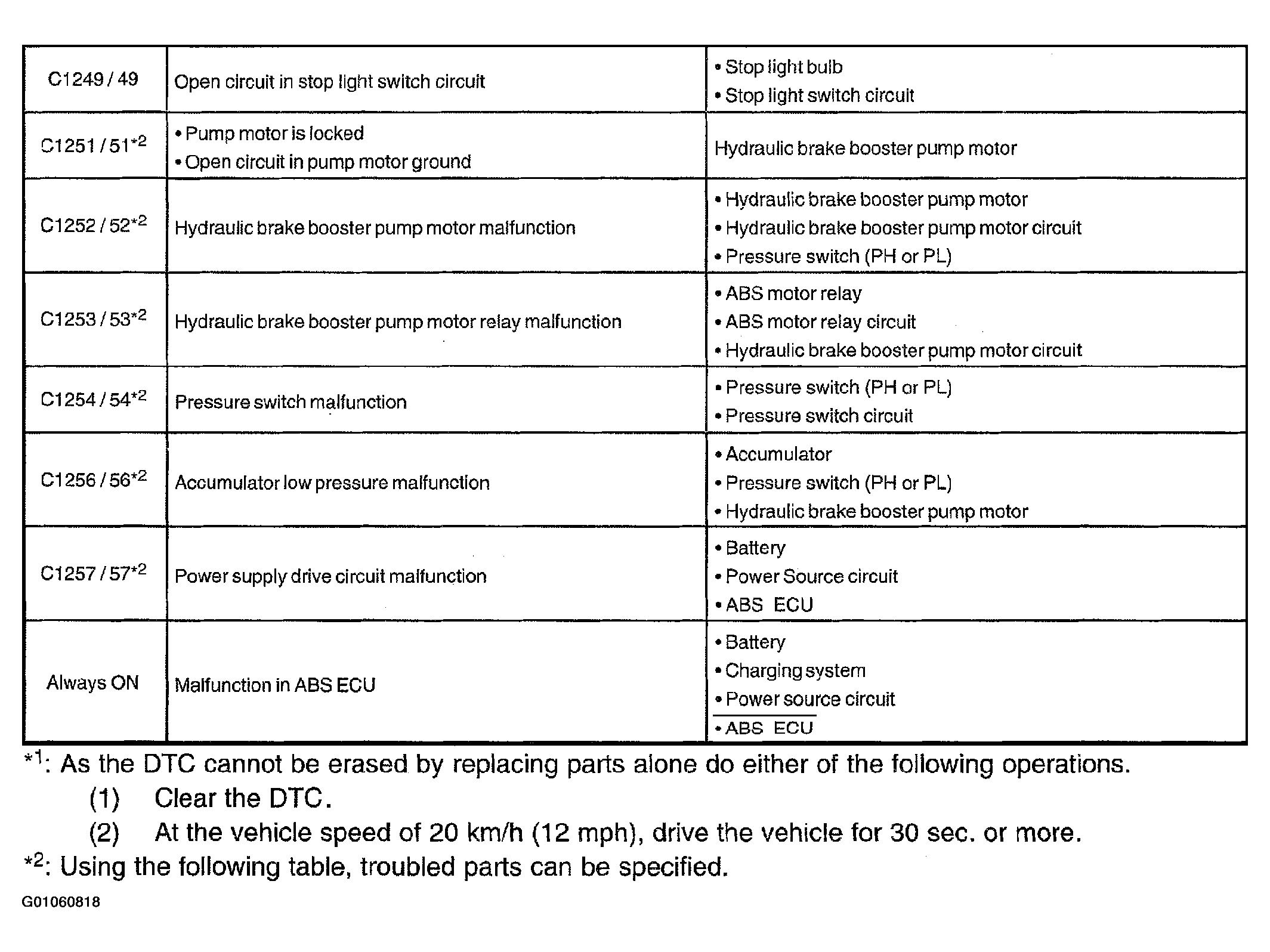

Fig 2: DTC Chart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

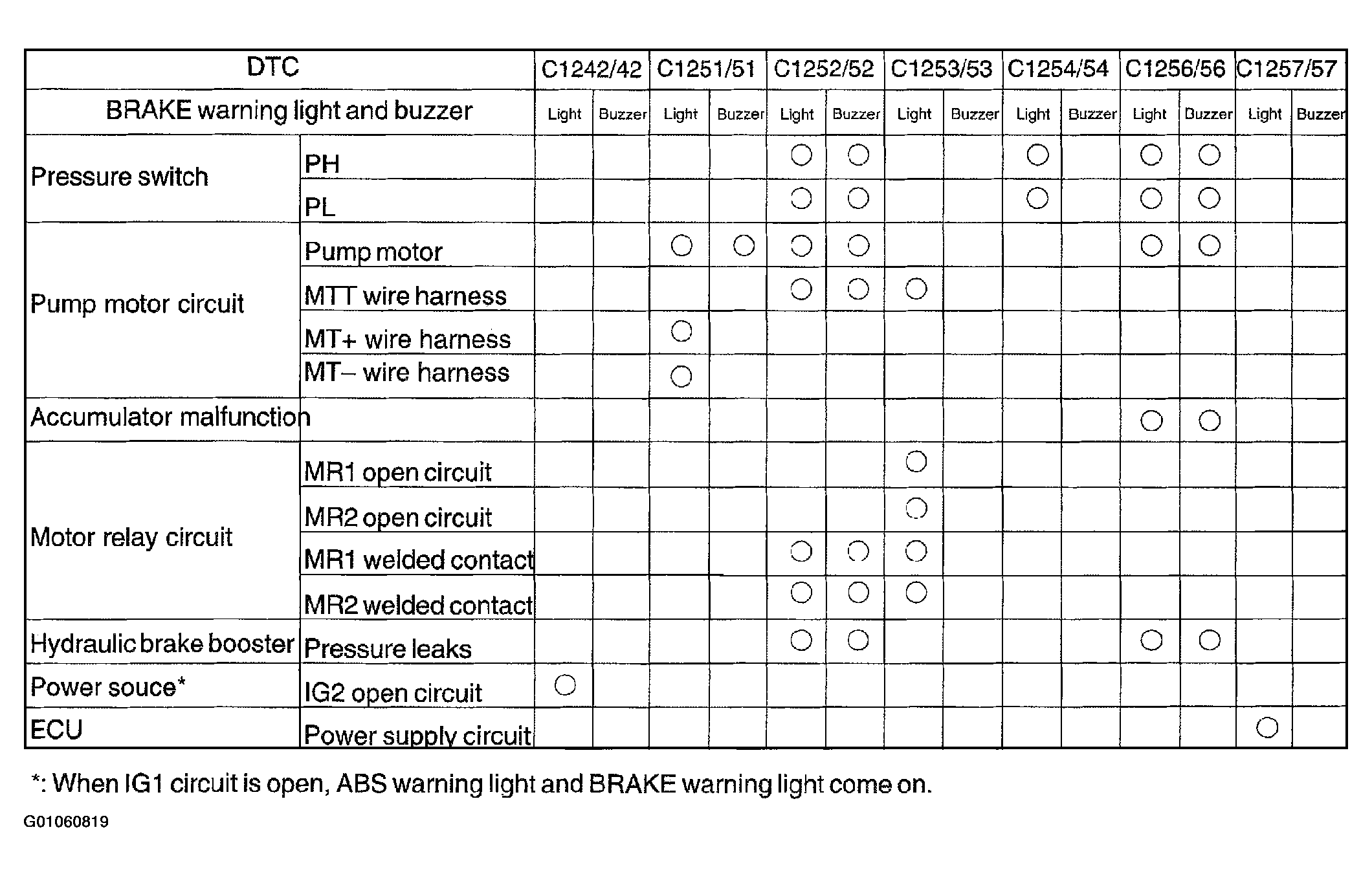

Fig 3: DTC Chart (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
