Charging System - Generators & Regulators: Generator: Components

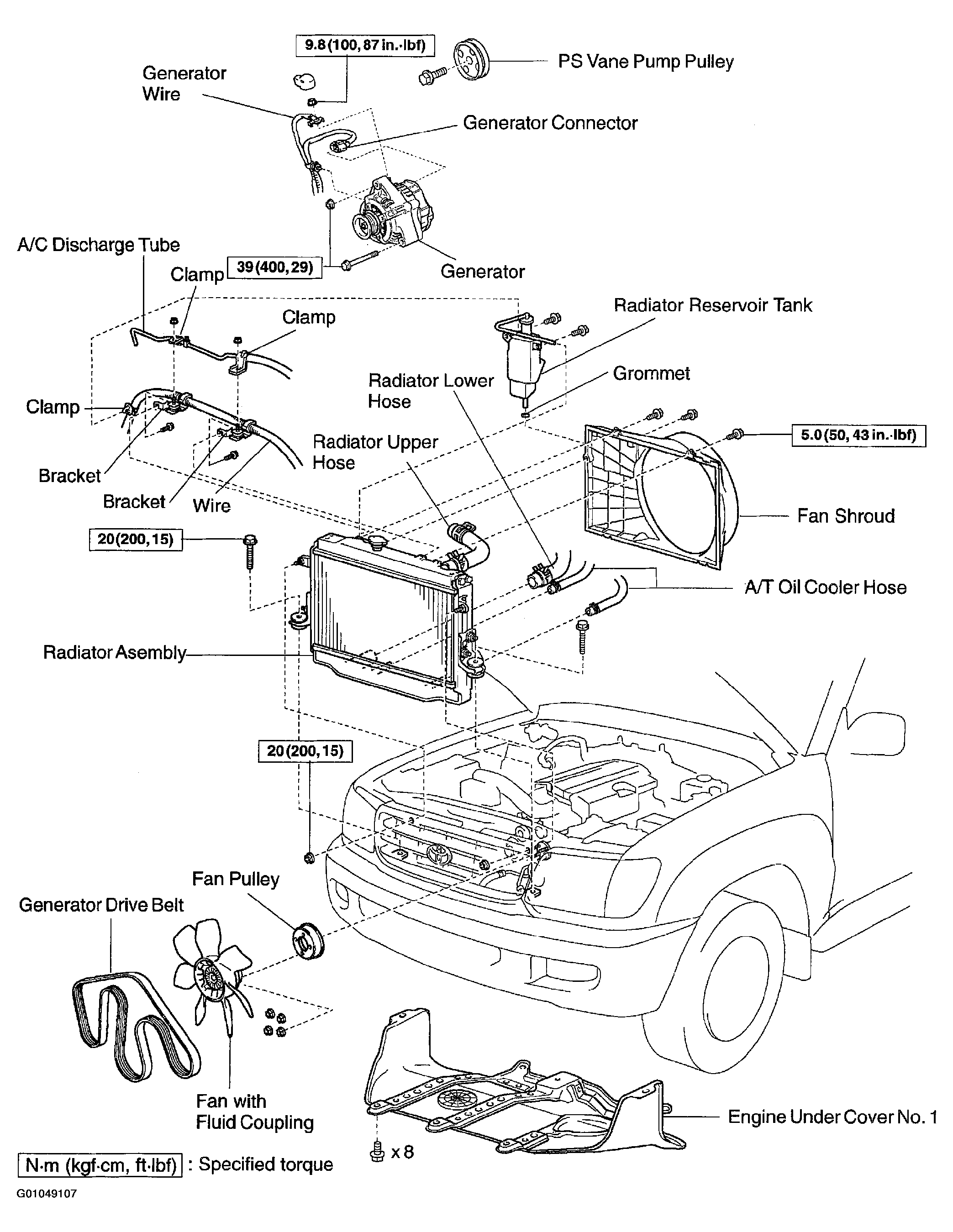

Fig 1: Identifying Components For Generator Removal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

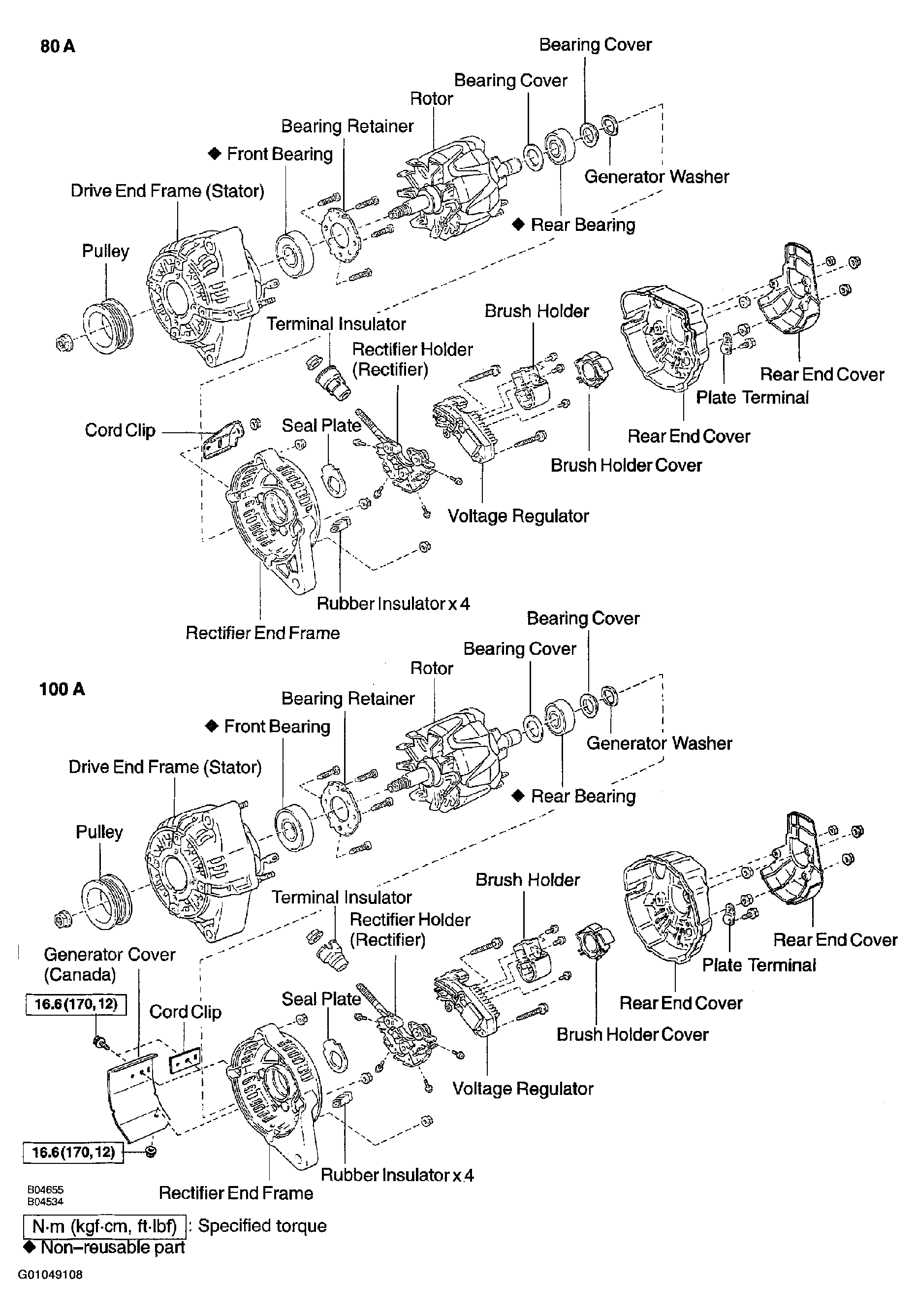

Fig 2: Exploded View Of Alternator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
