Charging System - Generators & Regulators: Generator: Removal

  1. DRAIN ENGINE COOLANT

    (See  DRAIN ENGINE COOLANT  )

  2. REMOVE GENERATOR DRIVE BELT

    Loosen the belt tension by turning the belt tensioner counterclockwise, and remove the drive belt.

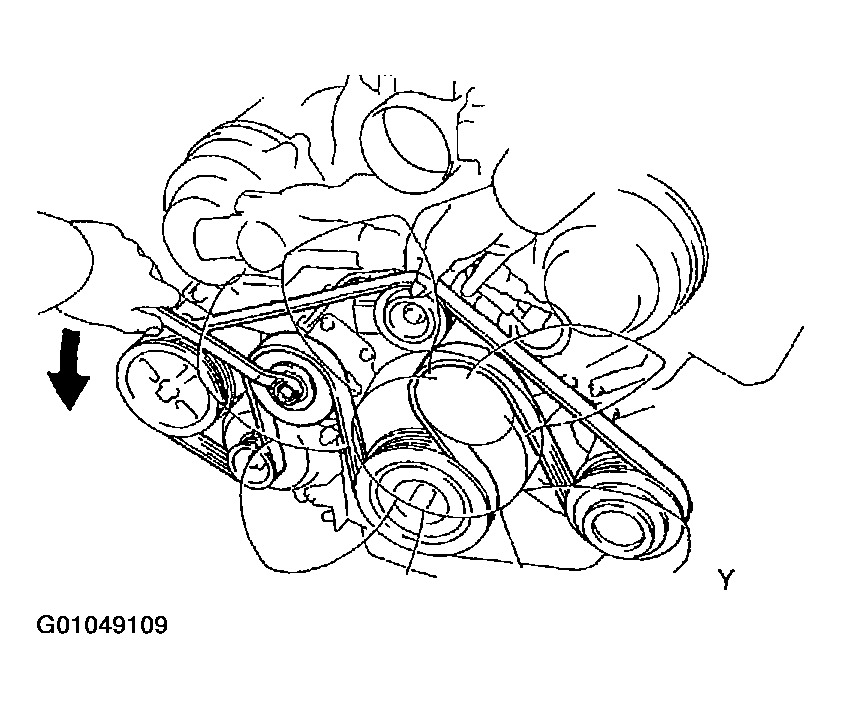

    Fig 1: Removing Generator Drive Belt
    G01049109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: The pulley bolt for the belt tensioner has a left - hand thread.
  3. REMOVE ENGINE UNDER COVER No. 1
  4. REMOVE RADIATOR ASSEMBLY

    (See  REMOVE RADIATOR ASSEMBLY  )

  5. REMOVE PS VANE PUMP PULLEY

    (See  POWER STEERING VANE PUMP  )

  6. REMOVE GENERATOR

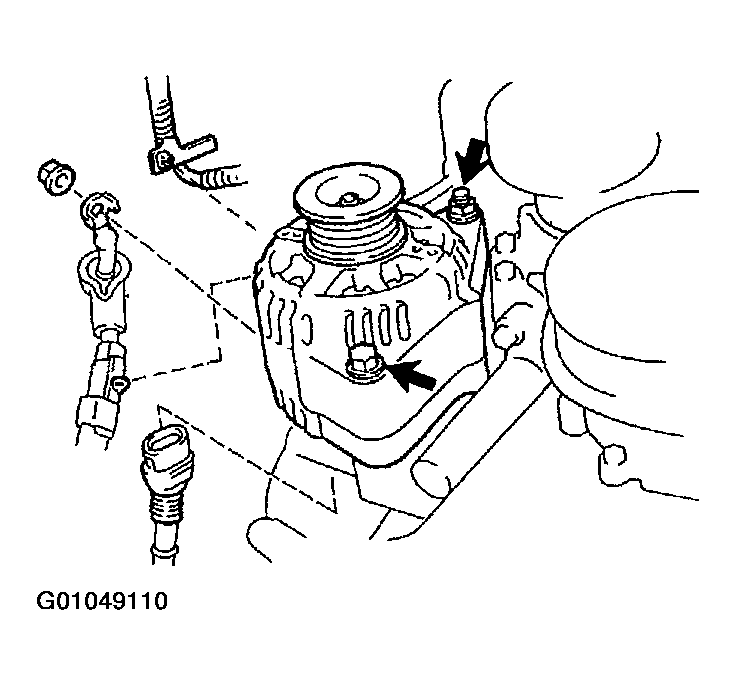

      Fig 2: Removing Generator & Components
      G01049110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the generator connector.
    2. Remove the rubber cap and nut, and disconnect the generator wire.
    3. Disconnect the generator wire clamp from the cord clip on the generator.
    4. Remove the bolt, nut and generator.
