Power Mirror Control System: Inspection

INSPECT LEFT SIDE MIRROR SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

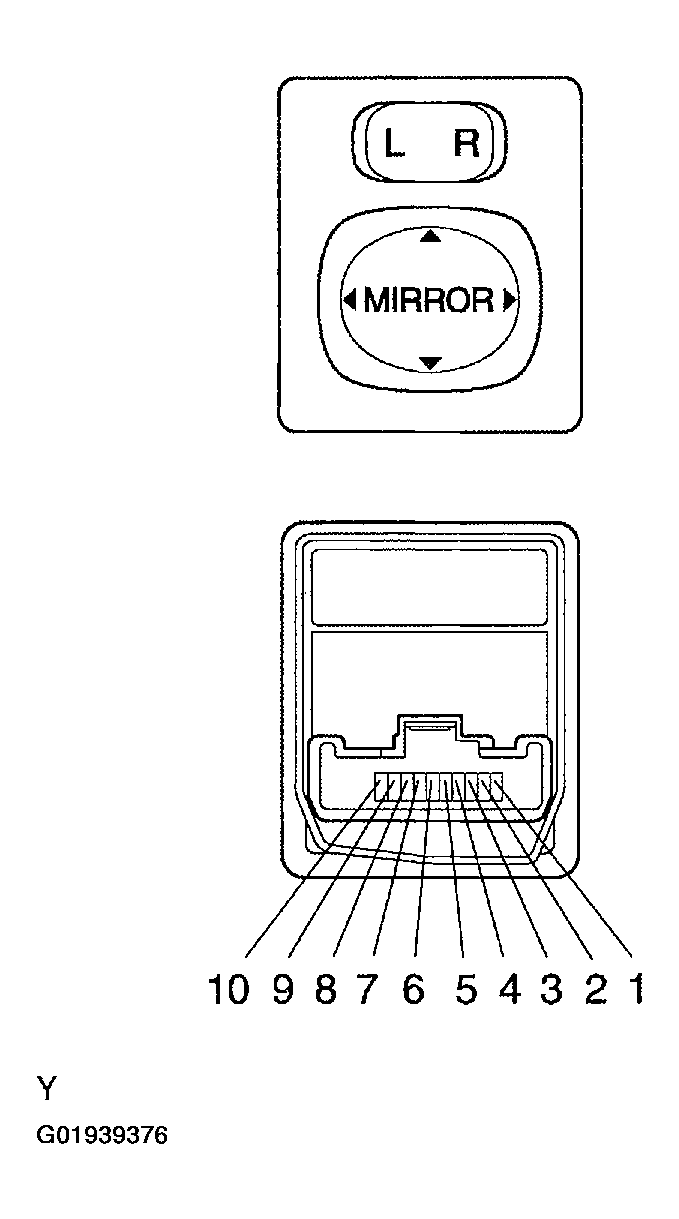

Fig 1: Identifying Mirror Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

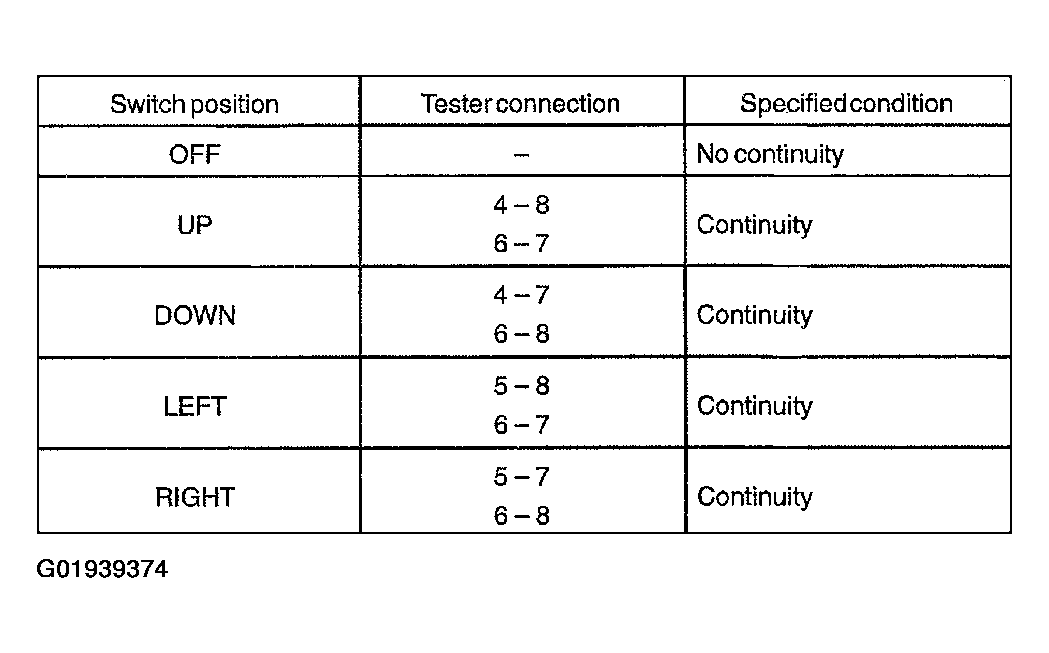

Fig 2: Identifying Left Side Mirror Switch Test Parameters
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT RIGHT SIDE MIRROR SWITCH CONTINUITY

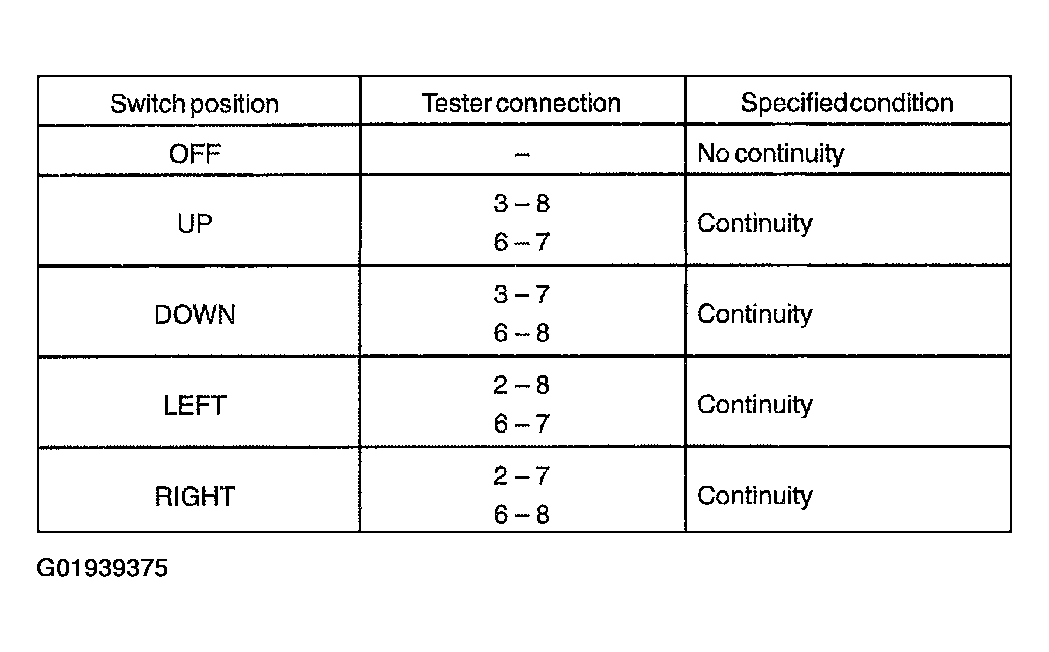

Fig 3: Identifying Right Side Mirror Switch Test Parameters
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
INSPECT MIRROR MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the mirror turns to the right.

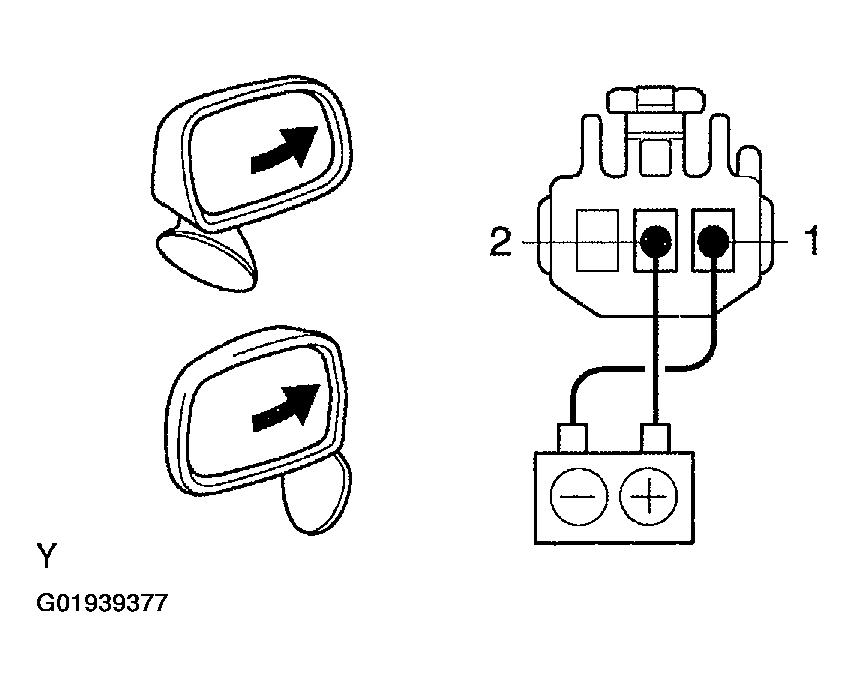

  Fig 4: Testing Power Mirror Right Turn Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, and check that the mirror turns to the left.

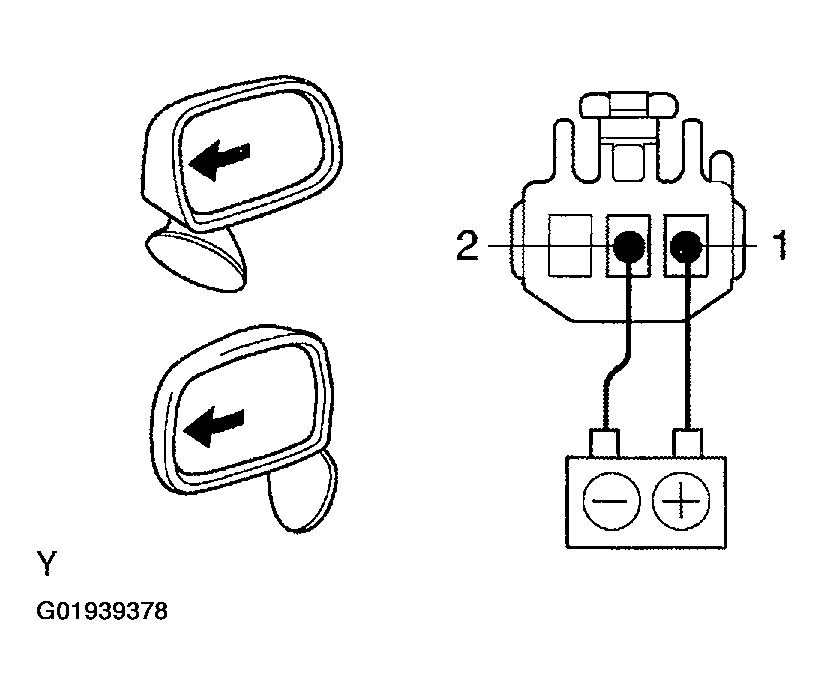

  Fig 5: Testing Power Mirror Left Turn Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 3, and check that the mirror turns downward.

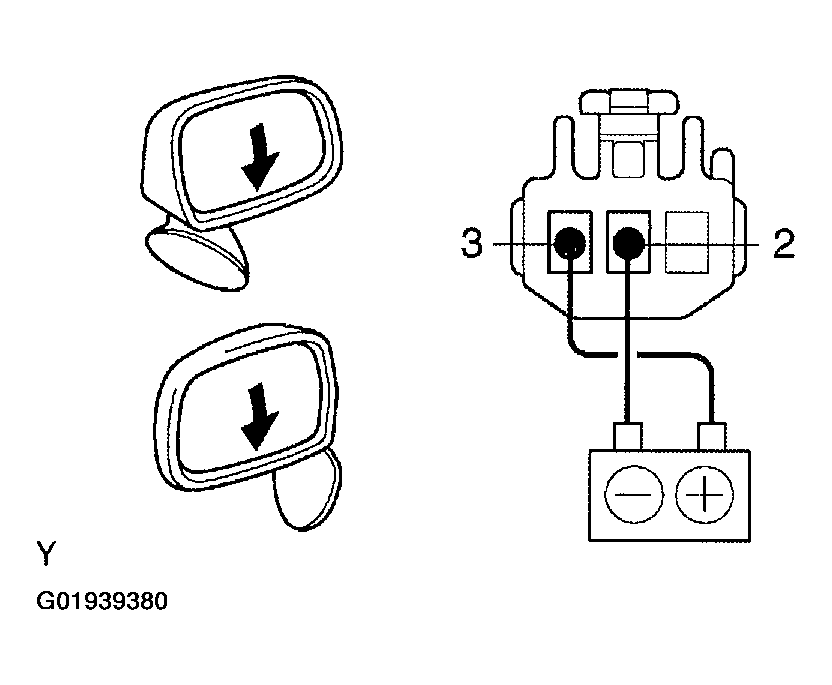

  Fig 6: Testing Power Mirror Movement (Down)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Reverse the polarity, and check that the mirror turns upward.

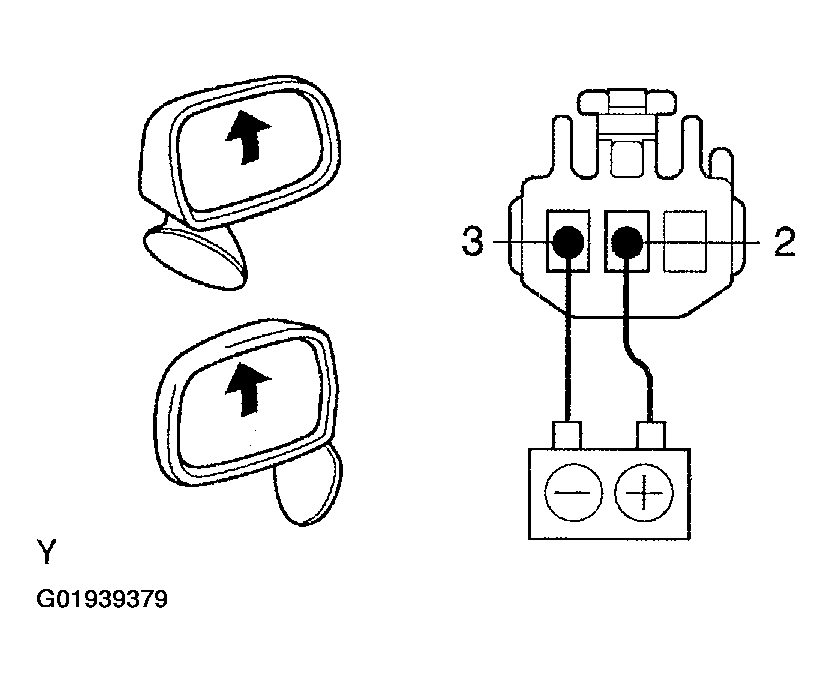

  Fig 7: Testing Power Mirror Movement (Up)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If operation is not as specified, replace the mirror assembly.
