Crankshaft Position Sensor: Components

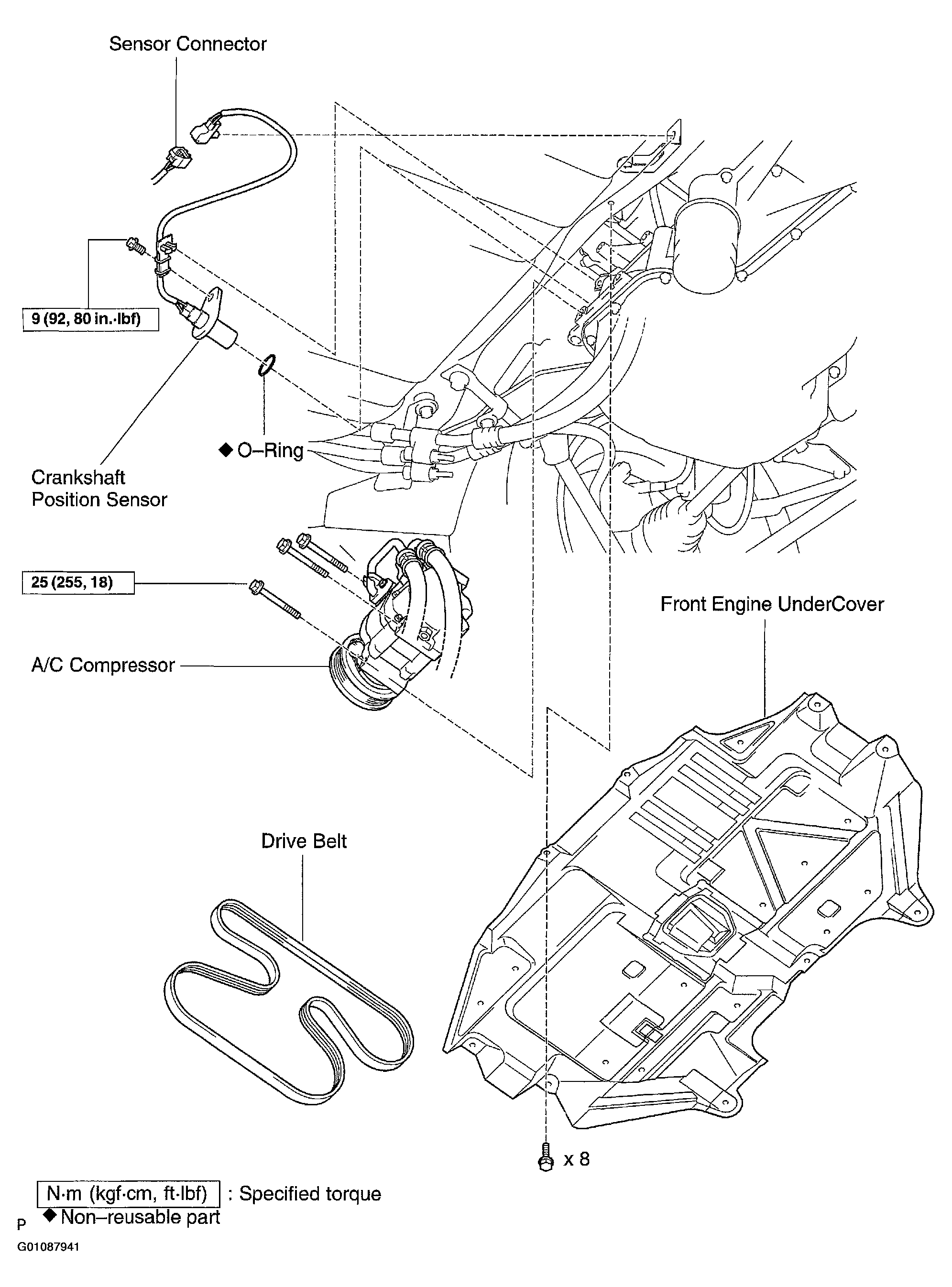

Fig 1: Locating Crankshaft Position Sensor
G01087941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
