Instrument Panel: Components: Notes

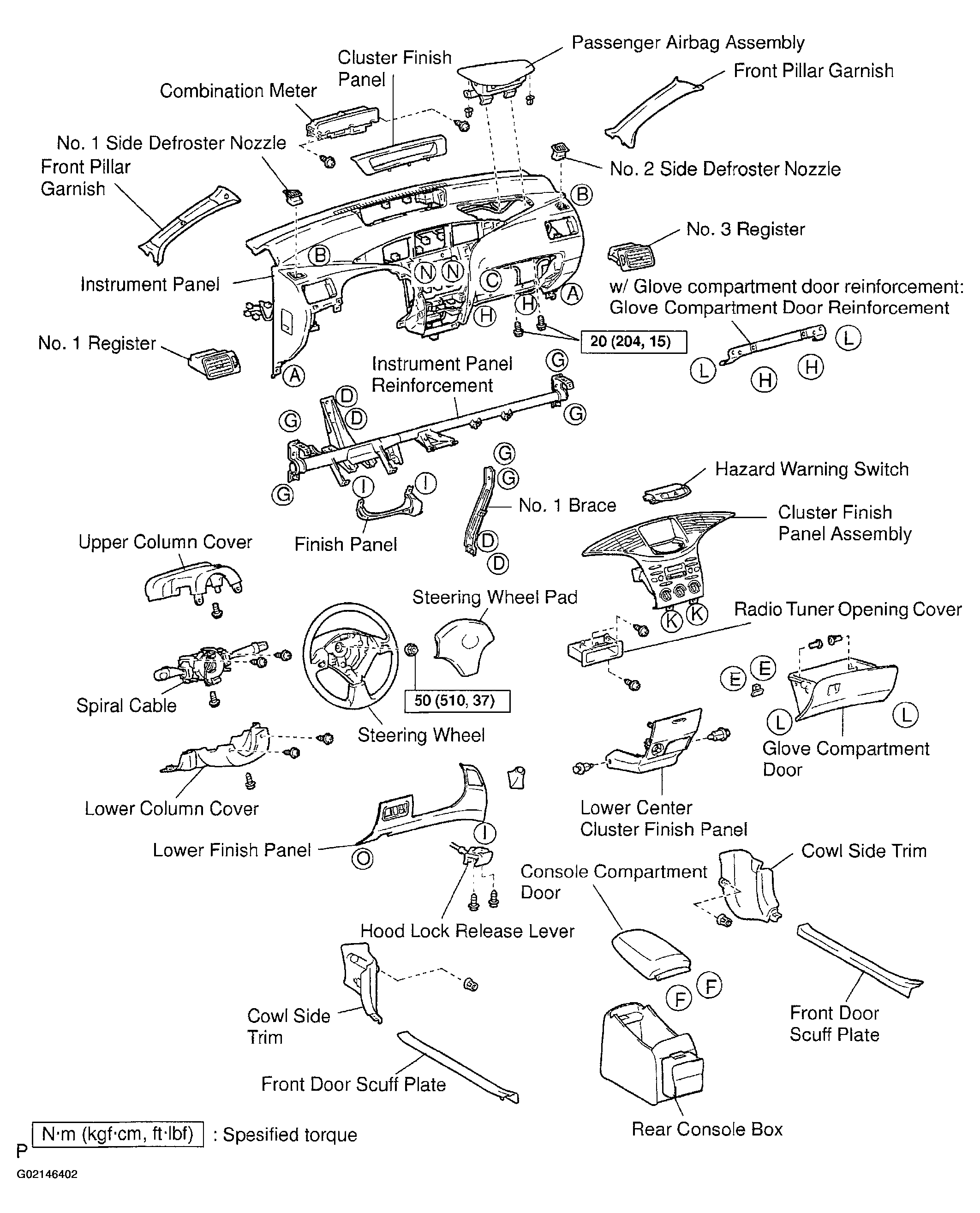

Fig 1: Identifying Instrument Panel Related Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

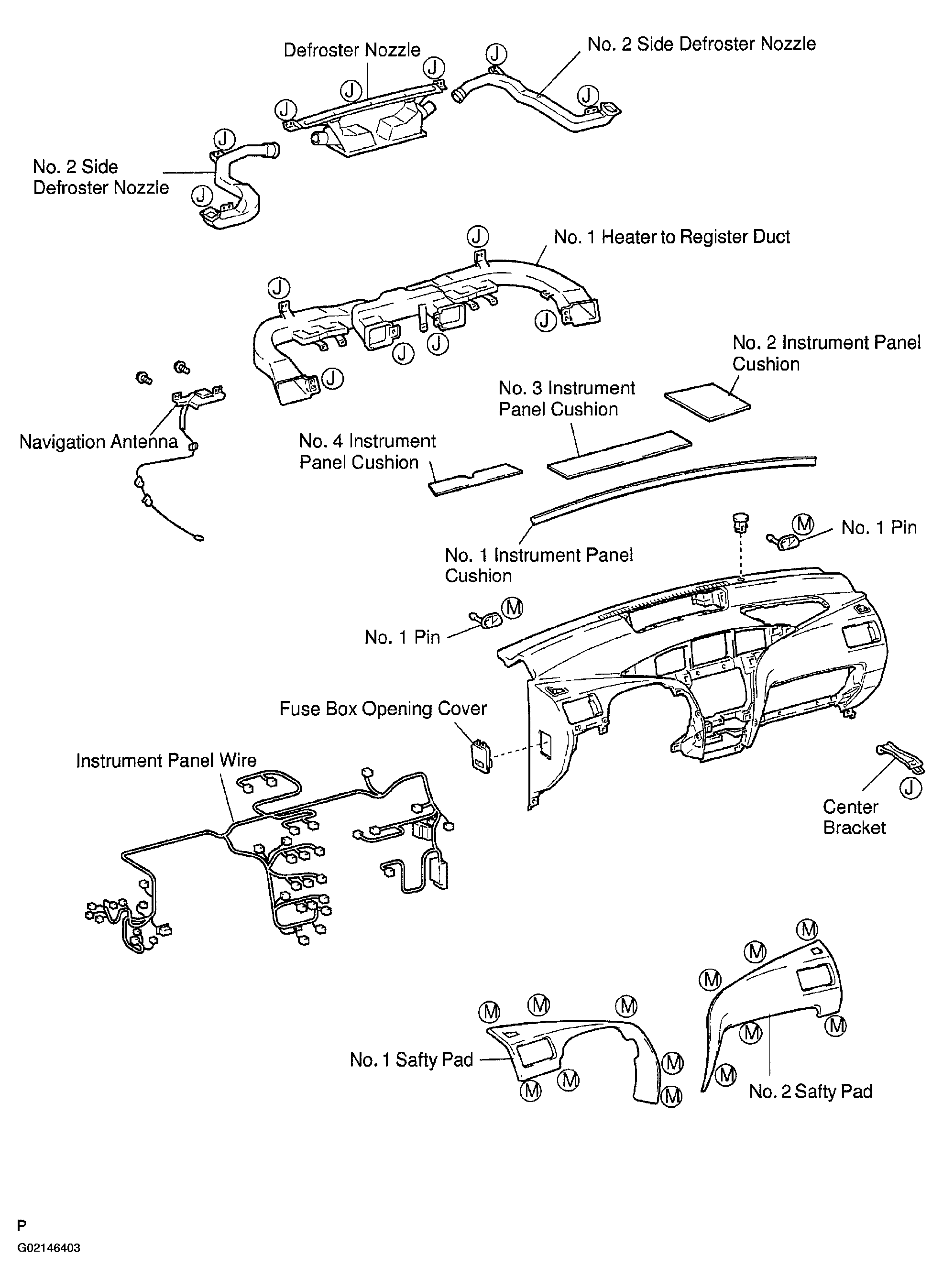

Fig 2: Identifying Instrument Panel Related Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Screw shapes and sizes are indicated in the table below. The codes ("A"-"O") correspond to those indicated on the previous pages.

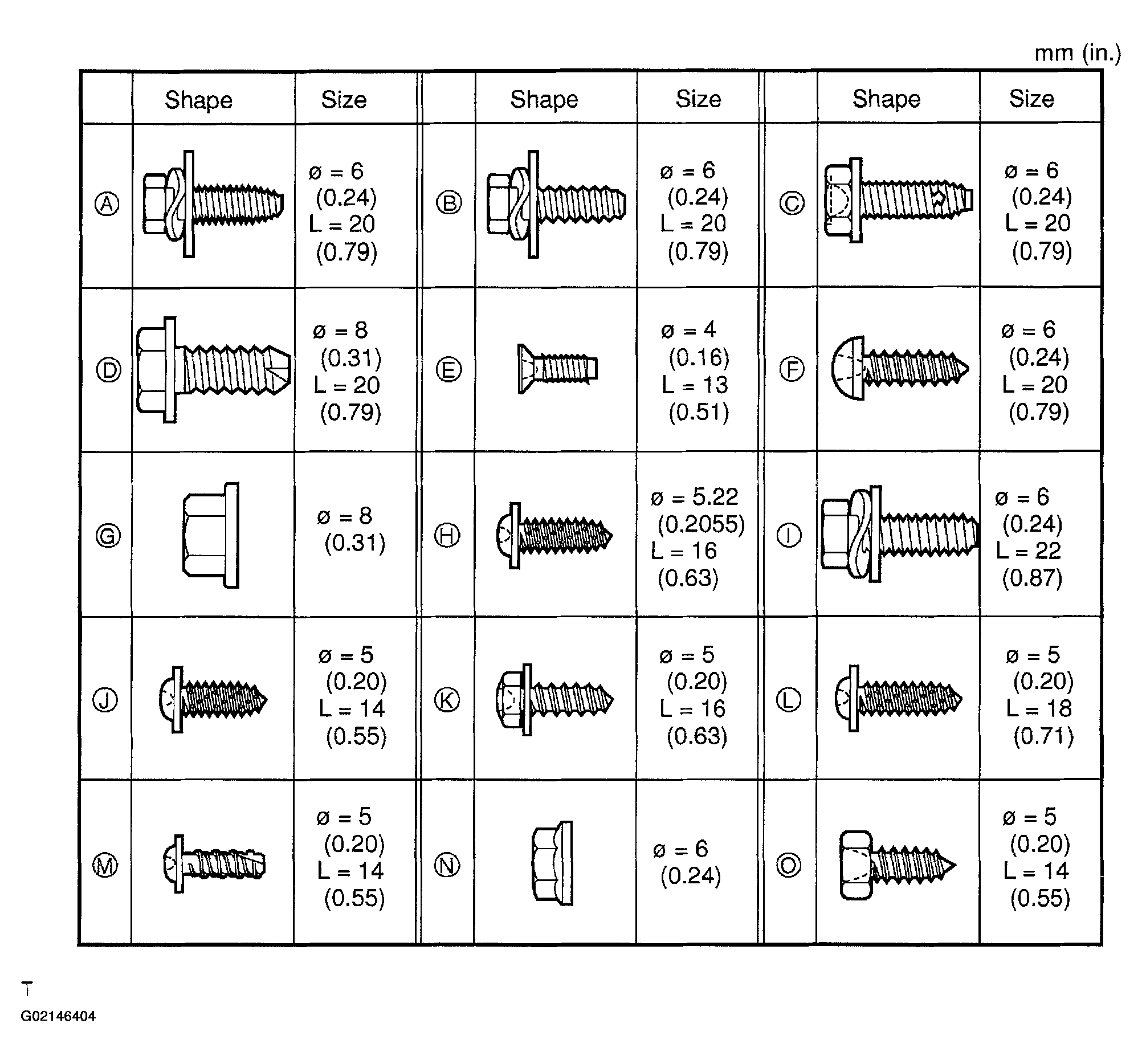

Fig 3: Identifying Fastener Types "A"-"O"
