Home >> Toyota >> 2002 >> Prius >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> System Tests >> TEST F: Ts TERMINAL >> Testing Procedures

Testing Procedures

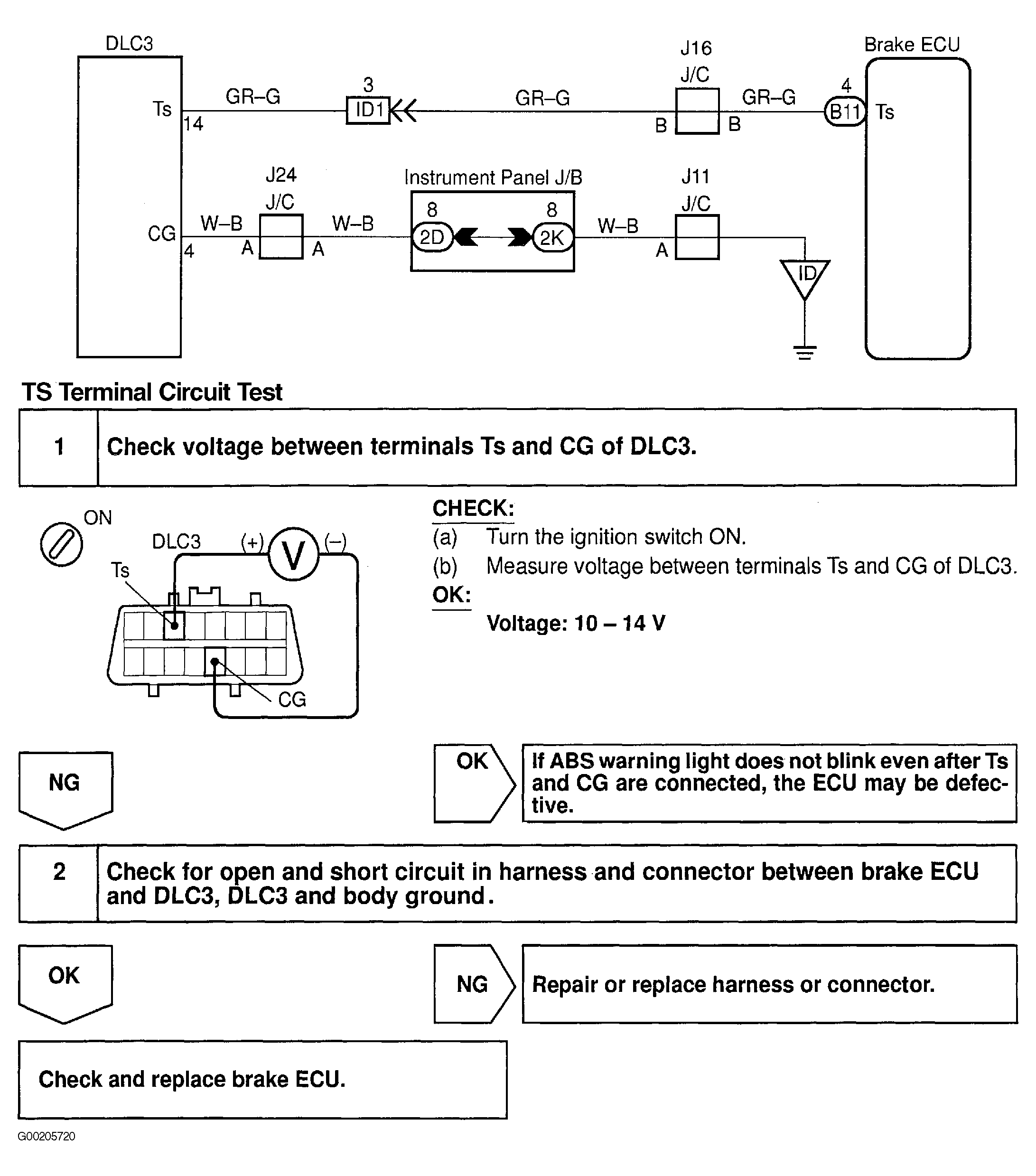

For wiring diagram and testing procedures, see Fig 1

Fig 1: Ts Terminal Circuit Wiring Diagram & Testing Procedures

G00205720

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
