Vehicle Lift And Support Locations
Vehicle Lift And Support Locations
For lifting and support locations, see
Fig 1
and
Fig 2
.

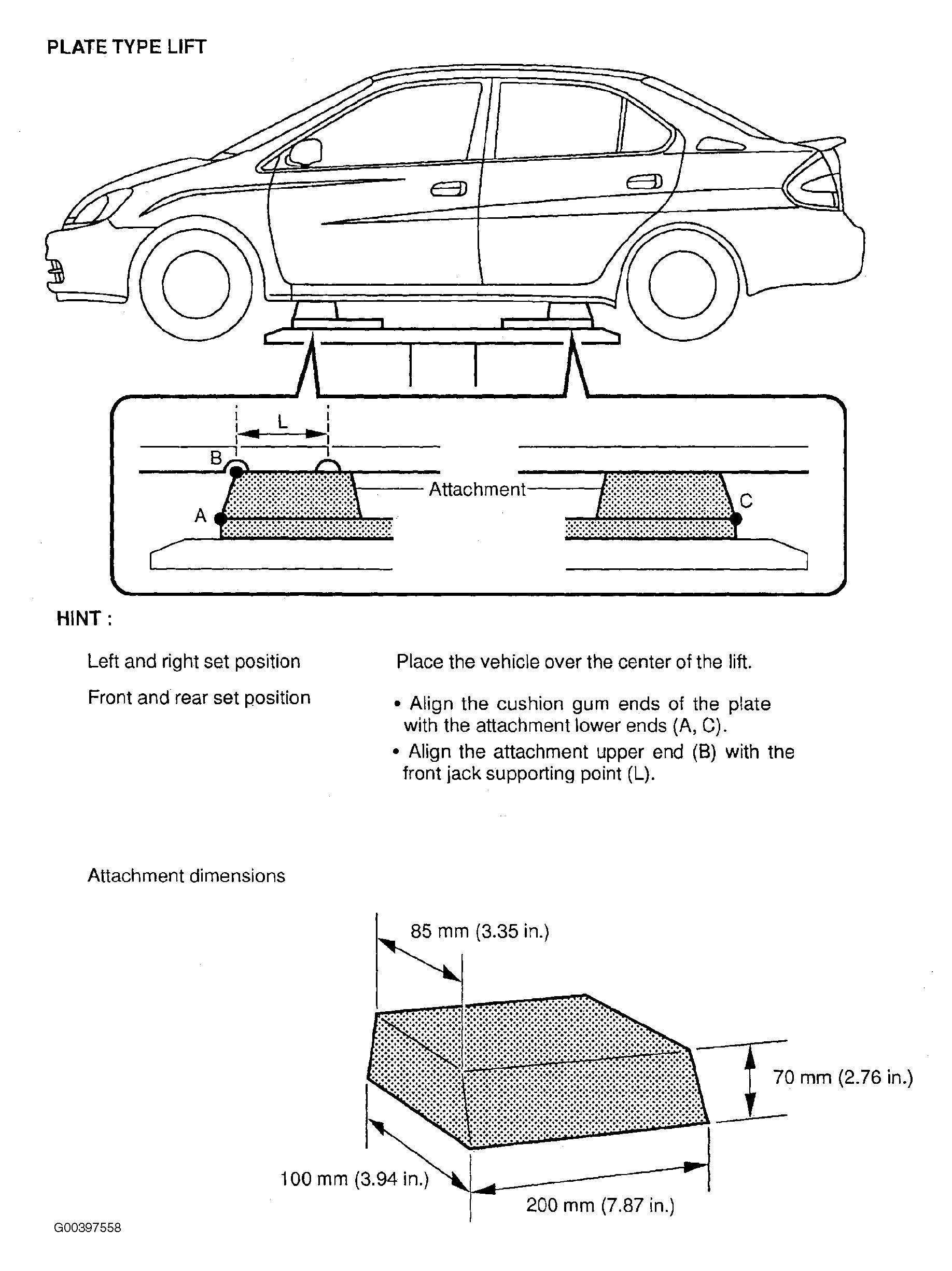

Fig 1: Identifying Vehicle Lifting & Support Points (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

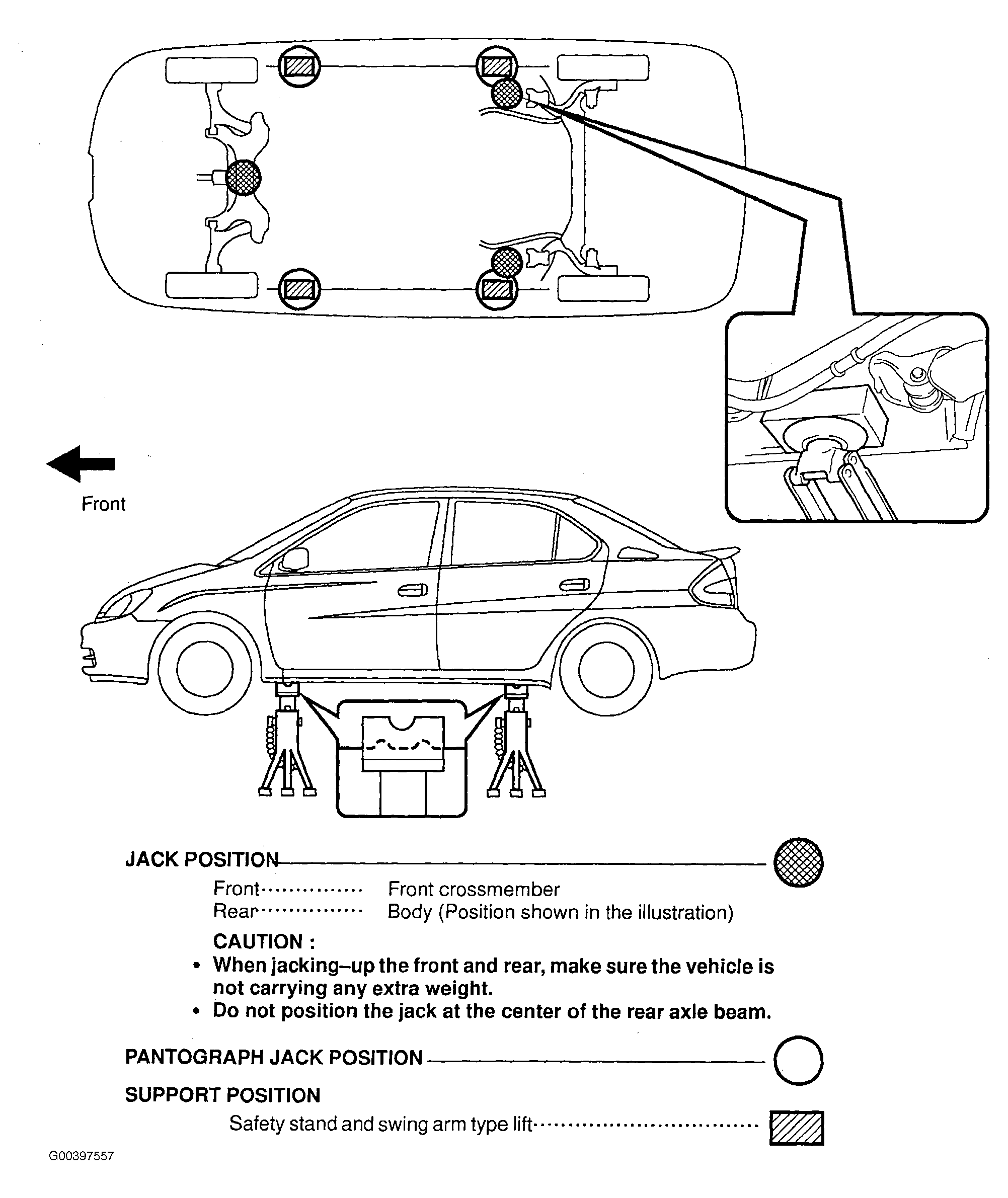

Fig 2: Identifying Vehicle Lifting & Support Points (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
