Wheel Alignment Specifications & Adjustment Procedures: CAMRY: Specifications

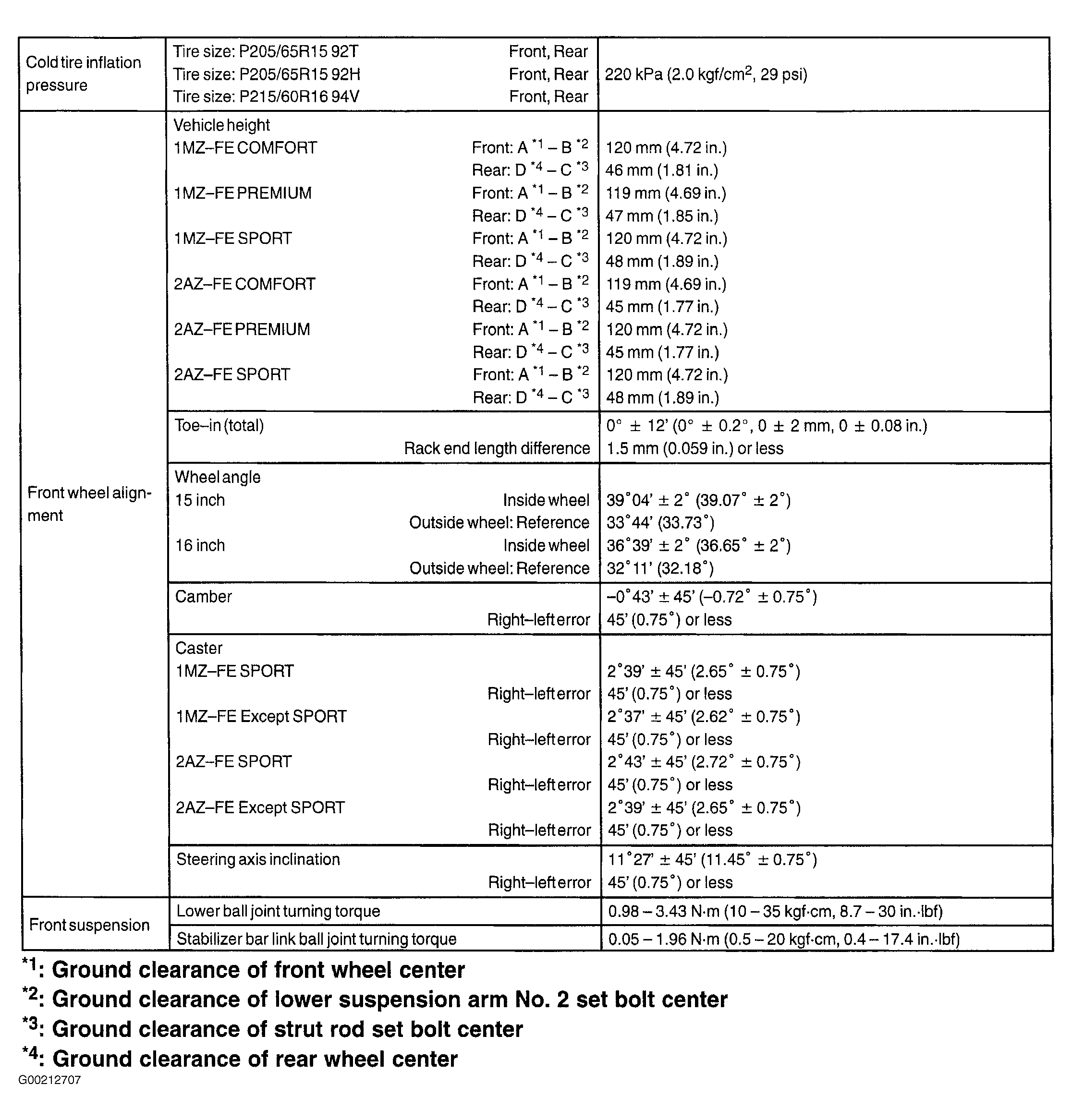

Fig 1: Wheel Alignment Specifications - Front (Camry)
G00212707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

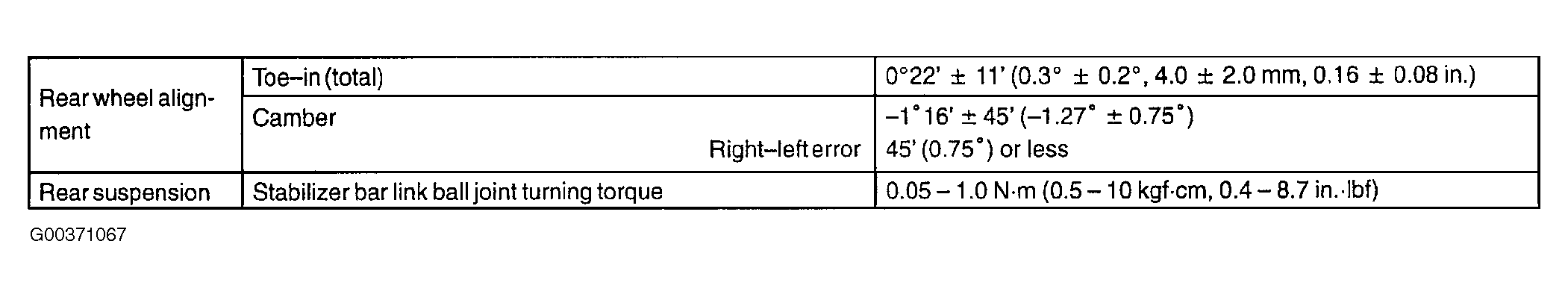

Fig 2: Wheel Alignment Specifications - Rear (Camry)
G00371067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
