Rear Wheel Alignment

Measure vehicle height (see MEASURE VEHICLE HEIGHT ) .
NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specification.
Inspect camber .

Fig 1: Identifying Camber Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Camber is not adjustable. If the measurement is not within the specifications, inspect the suspension parts for damaged and/or worn-out and replace them if necessary.
Inspect toe-in .

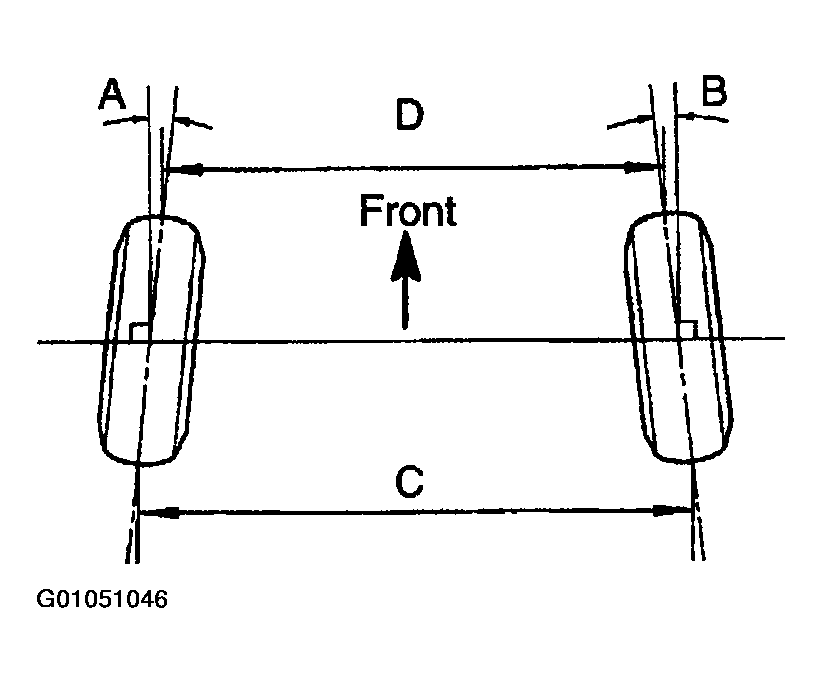

Fig 2: Identifying Toe-In Measurements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

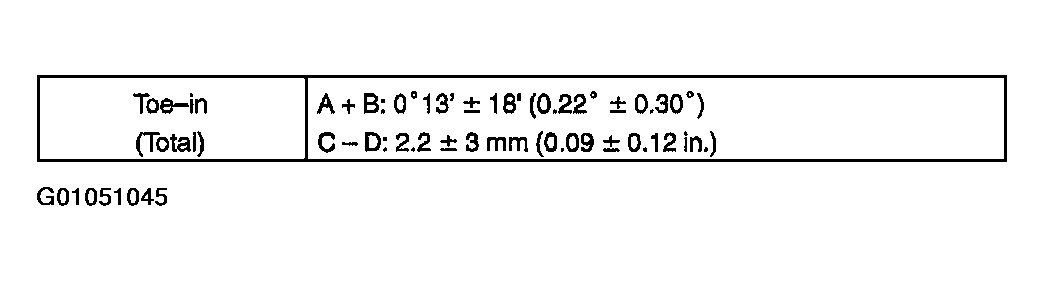

Fig 3: Identifying Toe-In Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. If the toe-in is not within the specification, inspect and replace the suspension parts as necessary.
