Hybrid Transaxle Components

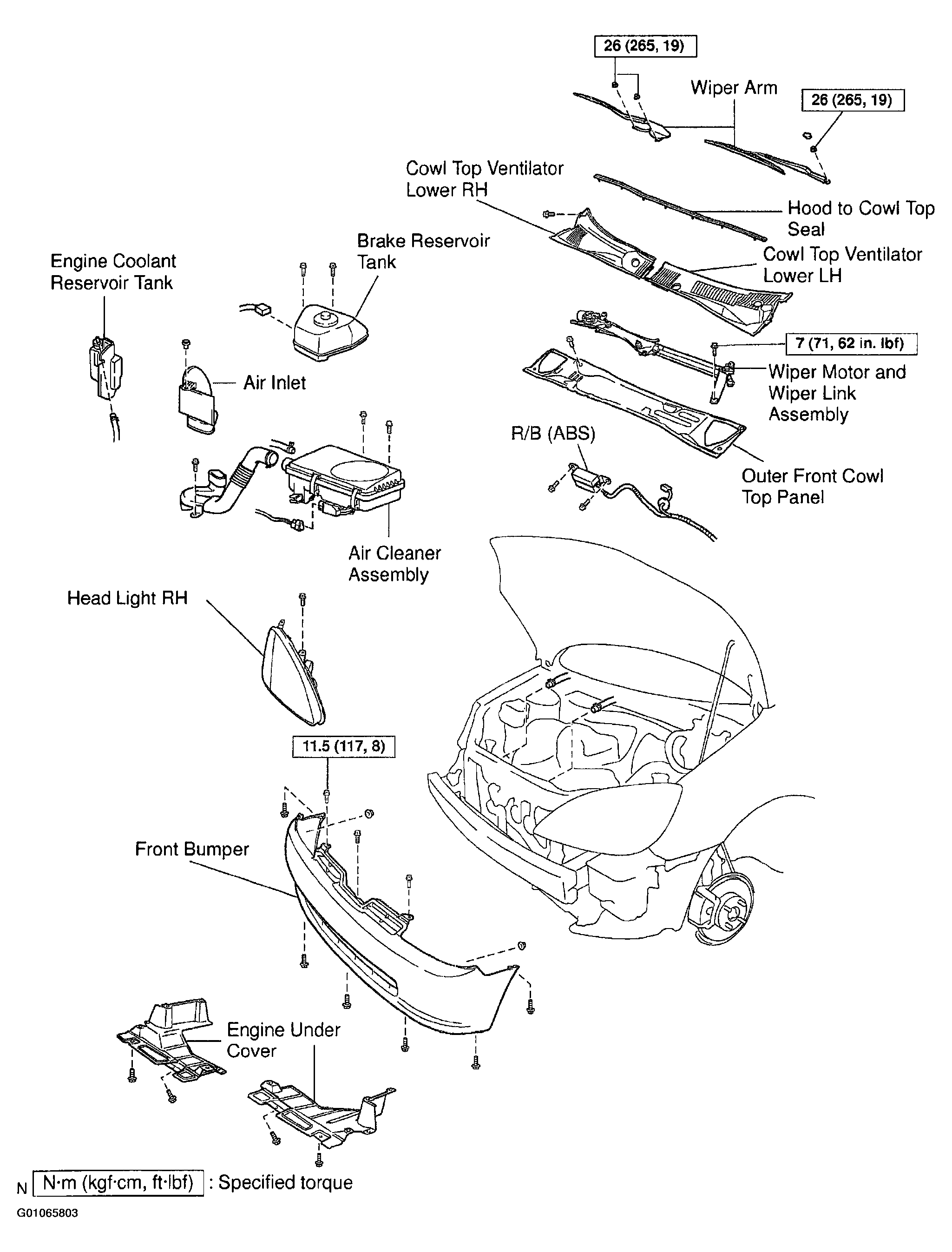

Fig 1: Locating Hybrid Transaxle Related Components (1 Of 2)
G01065803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

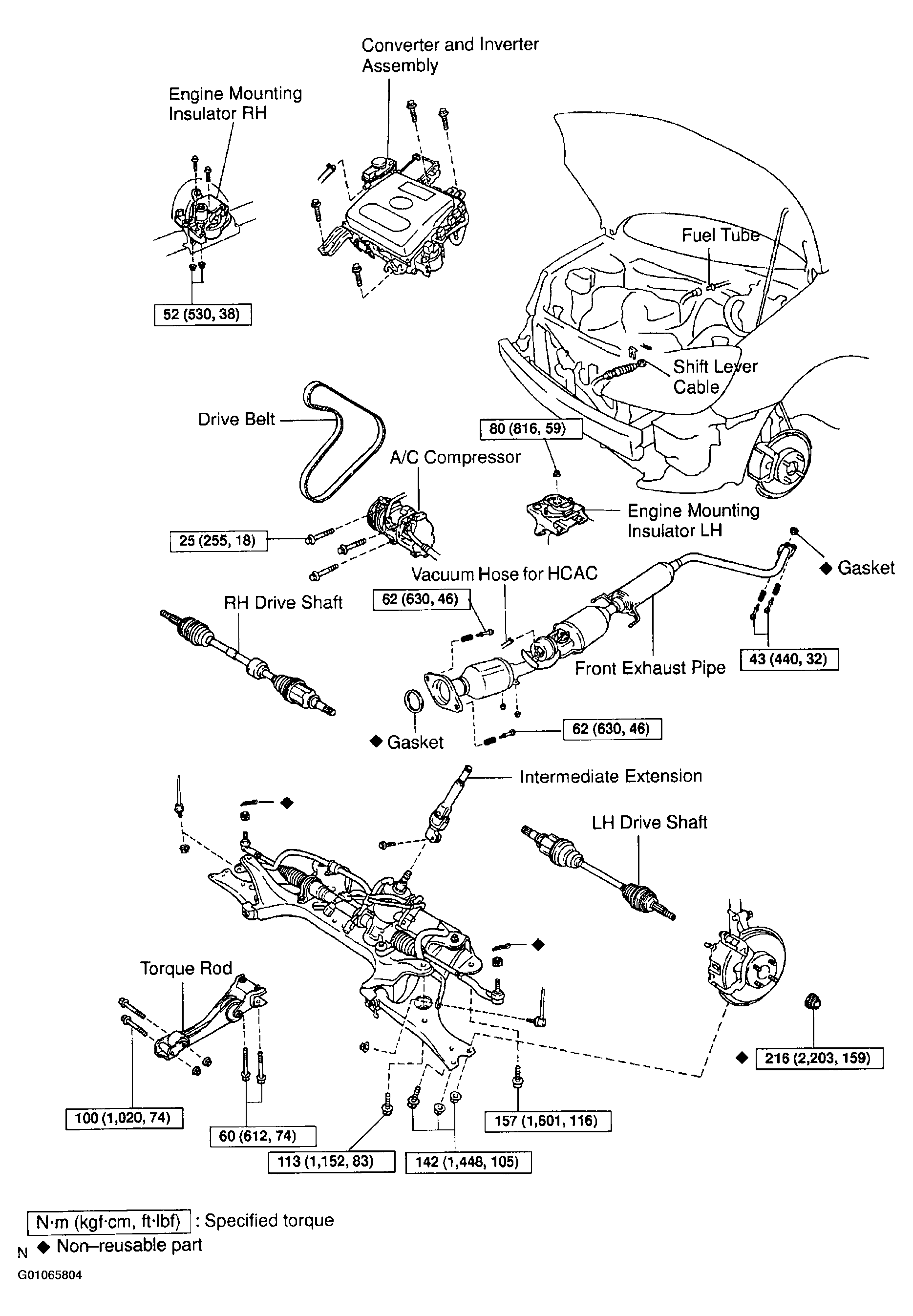

Fig 2: Locating Hybrid Transaxle Related Components (2 Of 2)
G01065804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

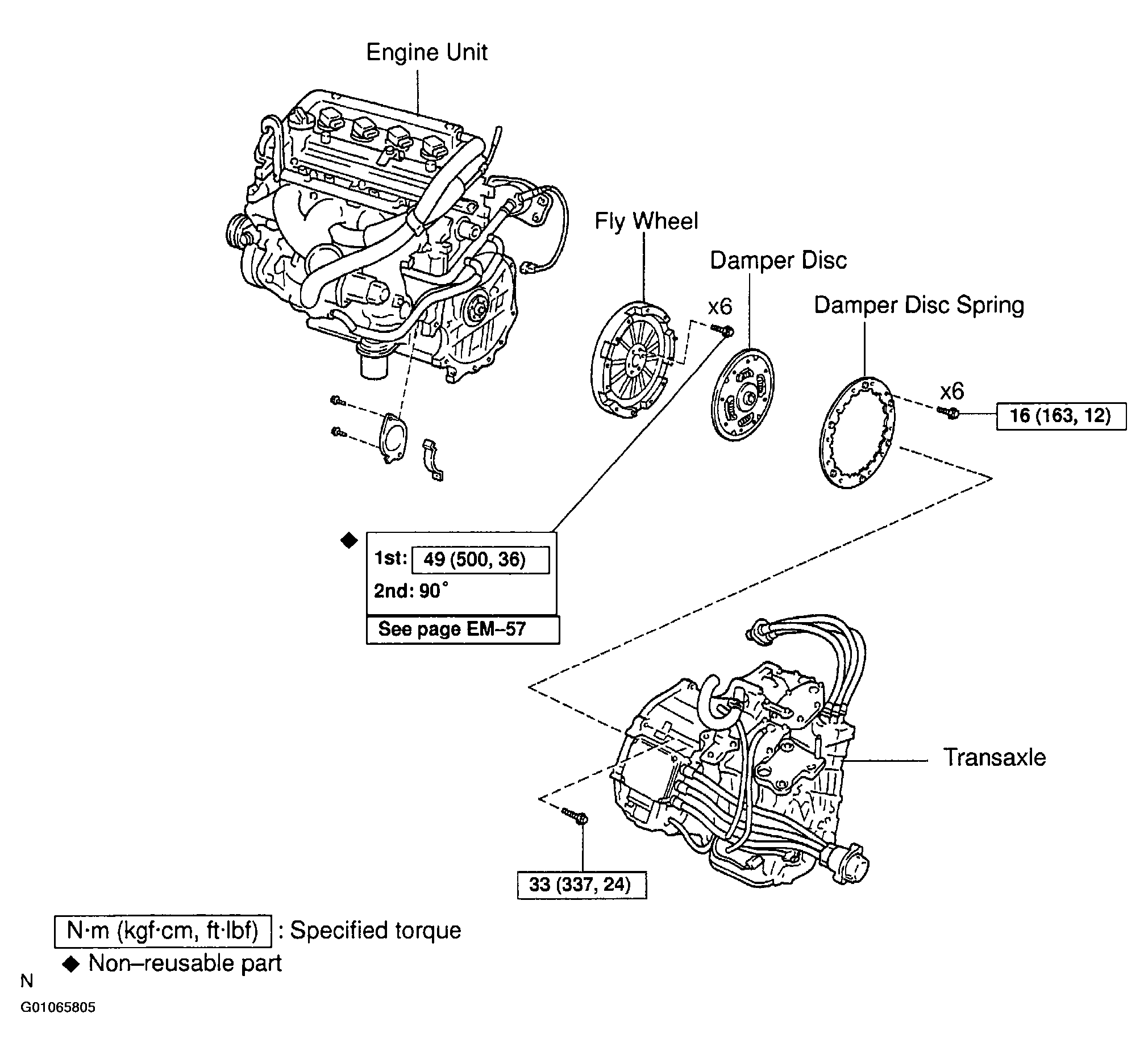

Fig 3: View Of Hybrid Transaxle & Engine Uncoupled
G01065805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
