Input Shaft: Reassembly

  1. Install needle roller bearing and bearing race  . See Figure.
  2. Install planetary sun gear to input shaft  .

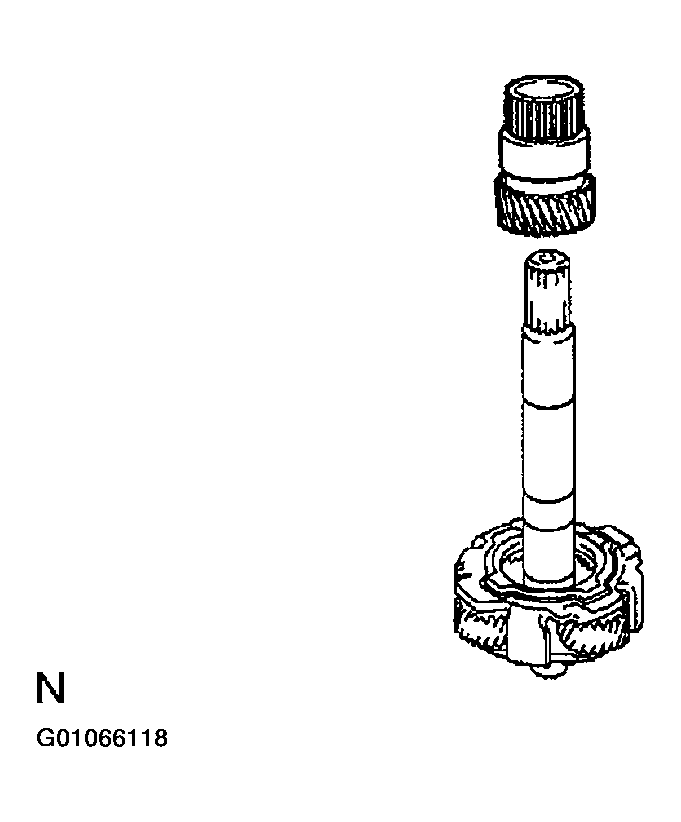

    Fig 1: Identifying Sun Gear & Input Shaft
    G01066118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
