Home >> Toyota >> 2002 >> RAV4 EV >> Repair and Diagnosis >> Body & Frame >> Seats >> Front Seat >> Components

Front Seat: Components

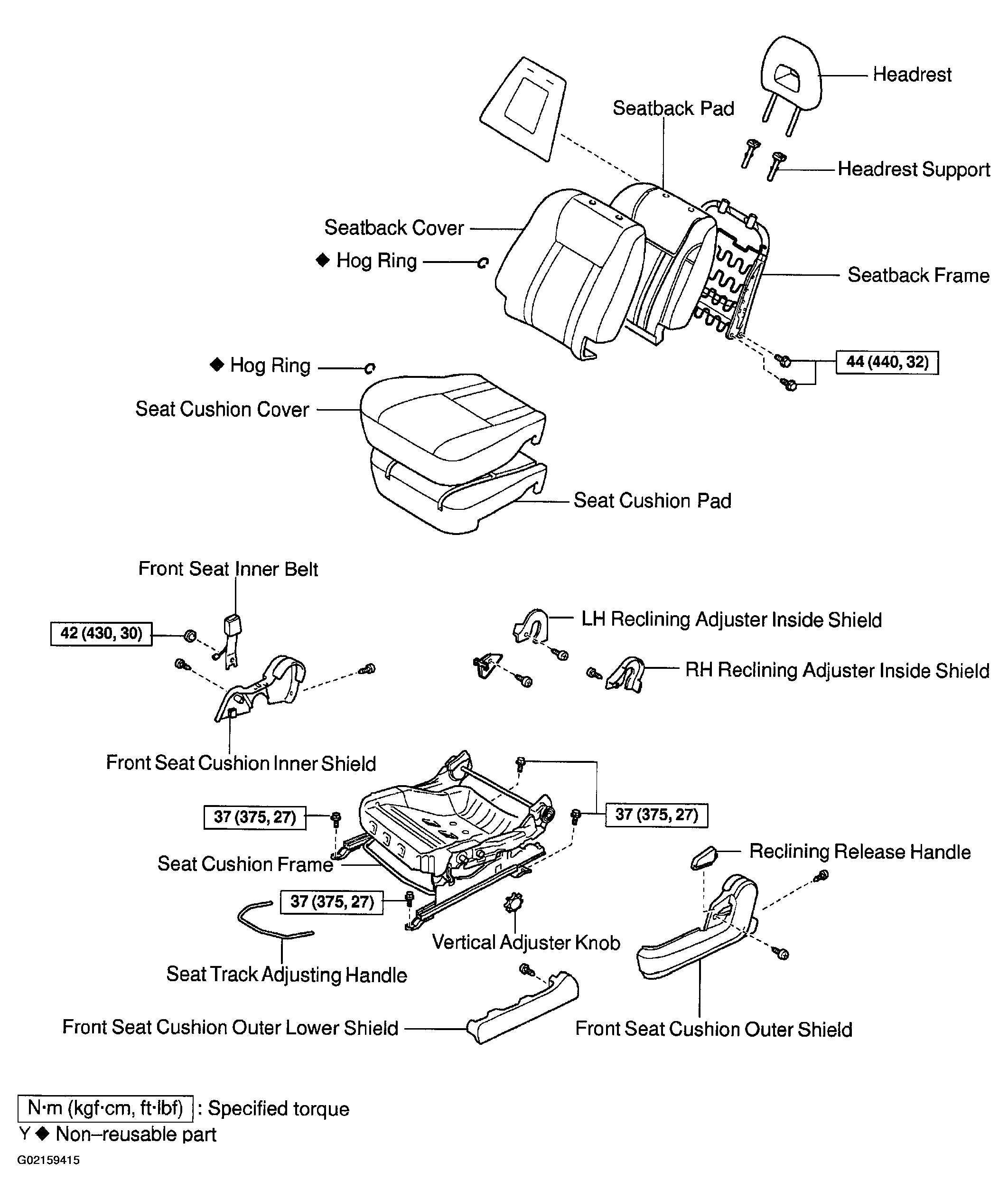

Fig 1: Identifying Front Seat Components
G02159415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
