Oil Pump: Components

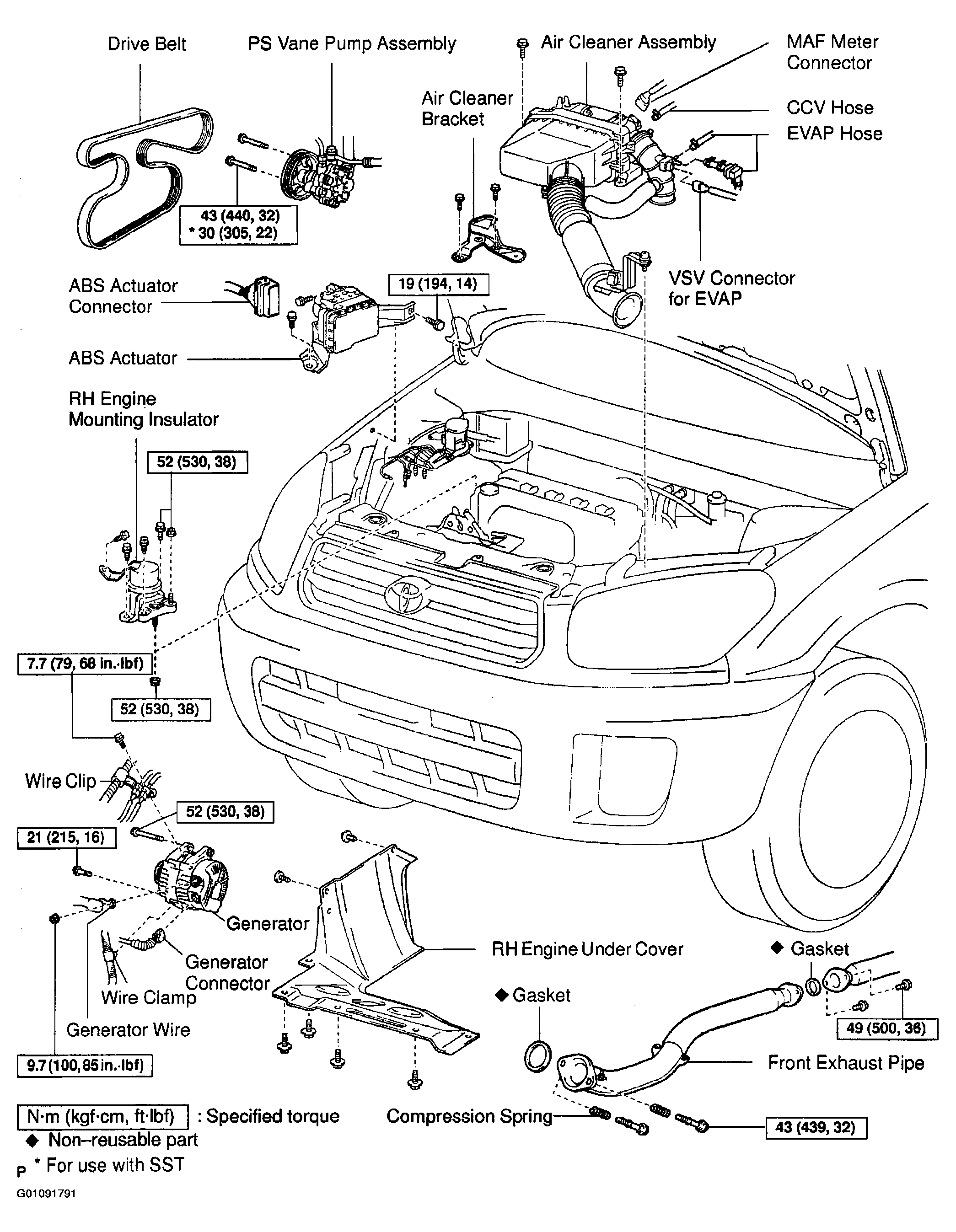

Fig 1: View Of Engine Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

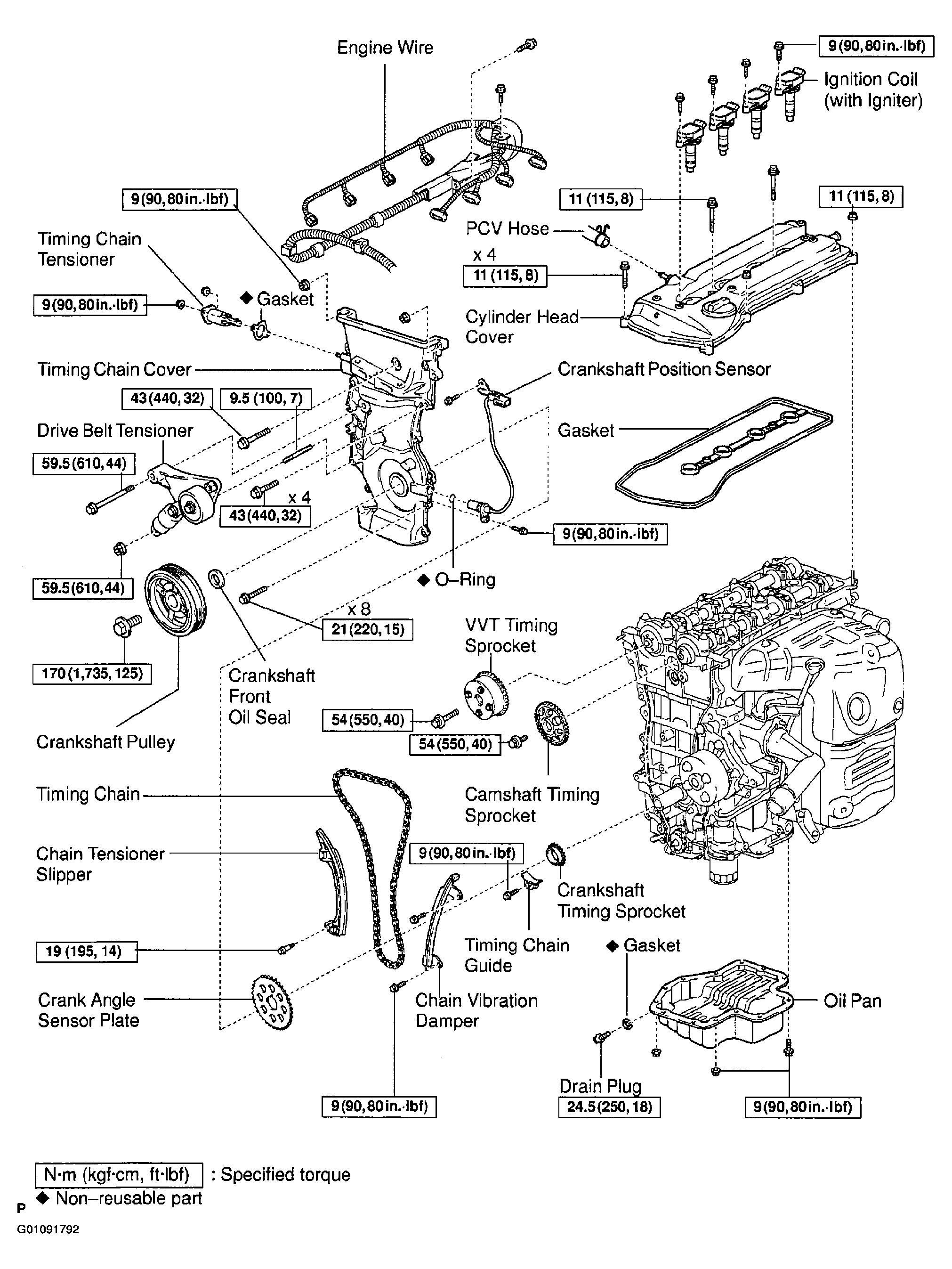

Fig 2: View Of Engine Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

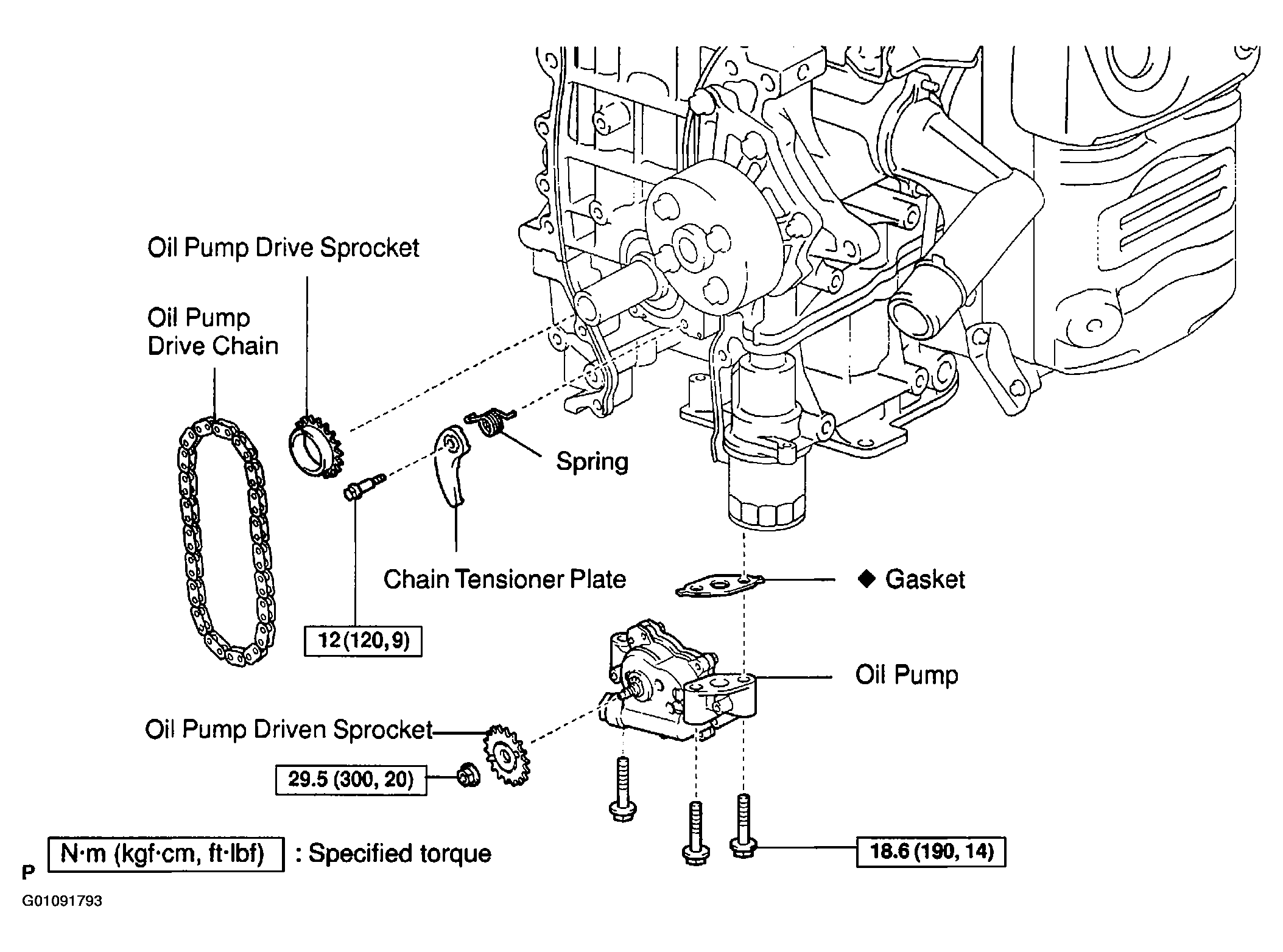

Fig 3: Displaying Oil Pump Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

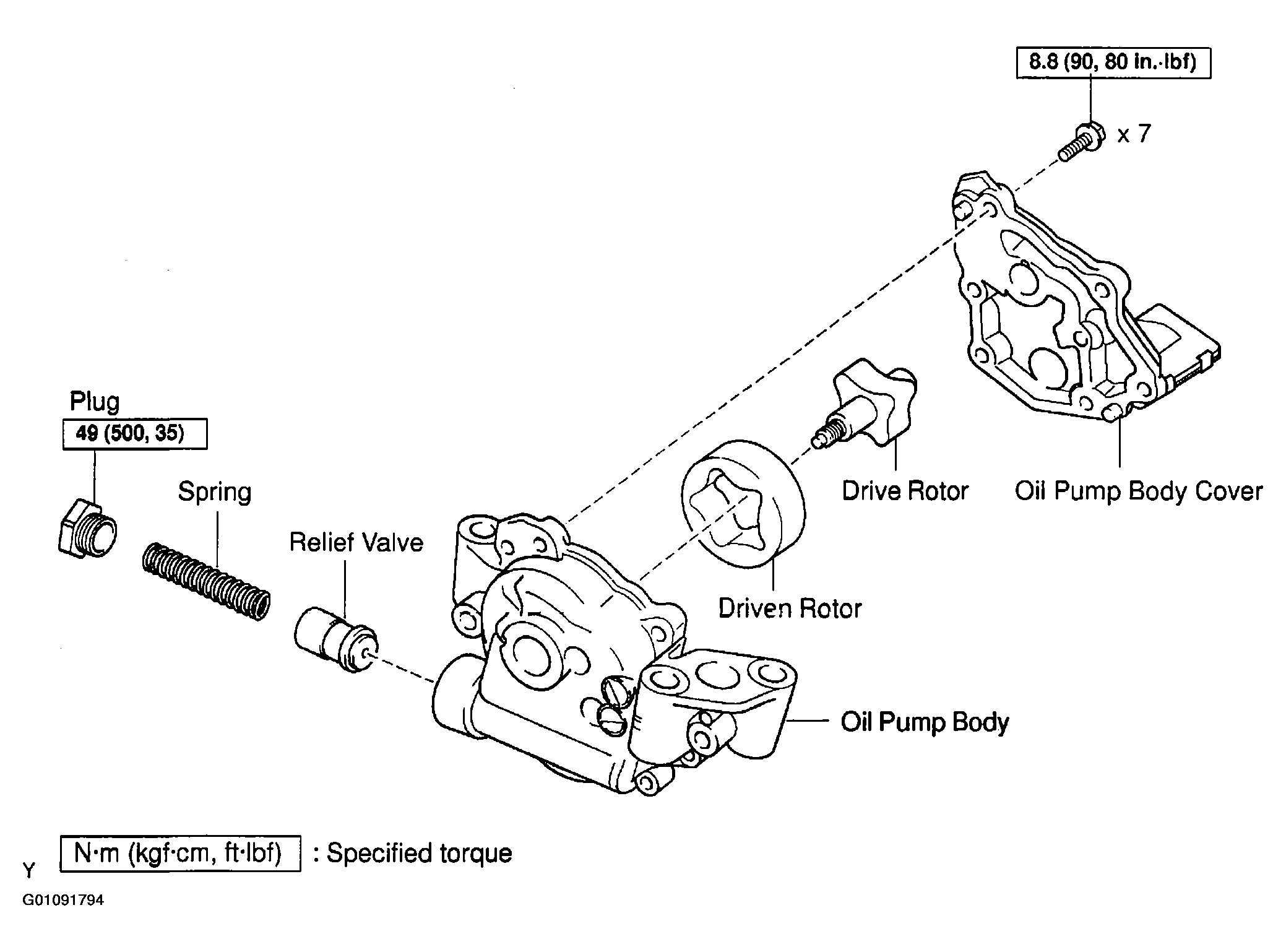

Fig 4: Displaying Oil Pump Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
