Crankshaft Position Sensor: Installation

  1. Install crankshaft position sensor  :
    1. Install the crankshaft position sensor with the bolt.

      Torque: 6.5 N.m (65 kgf.cm, 58 in..lbf)

    2. Connect the crankshaft position sensor connector.
  2. Install engine under cover  .

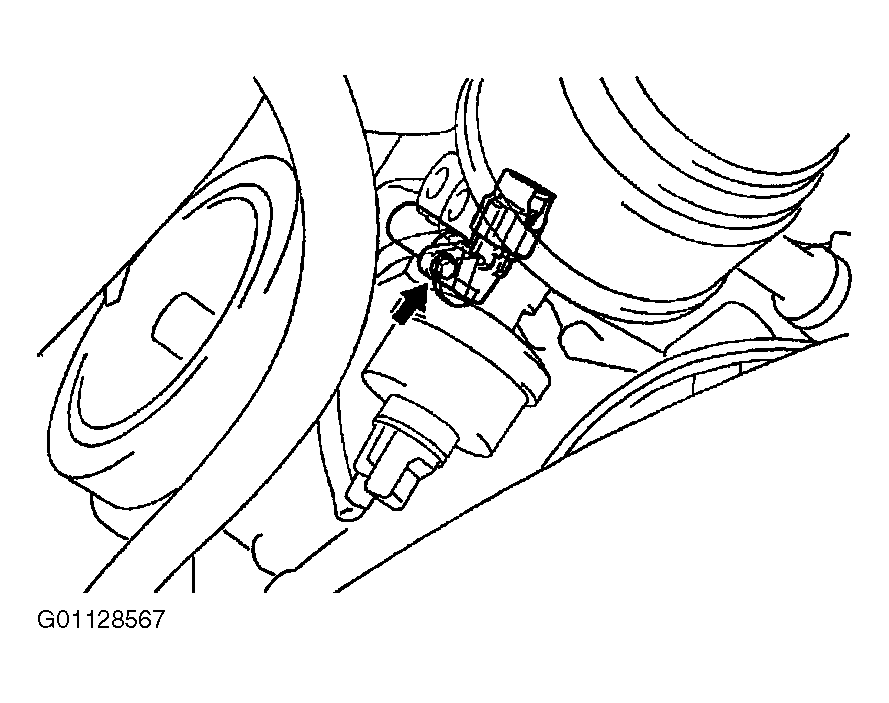

    Fig 1: Locating Crankshaft Position Sensor Bolt
    G01128567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
