Ignition Coil: Removal

  1. Disconnect ignition coil (with igniter) connectors  .
  2. Remove ignition coils (with igniter) from spark plugs  .

    Remove the bolt, and pull out the ignition coil (with igniter). Remove the 8 ignition coils (with igniter).

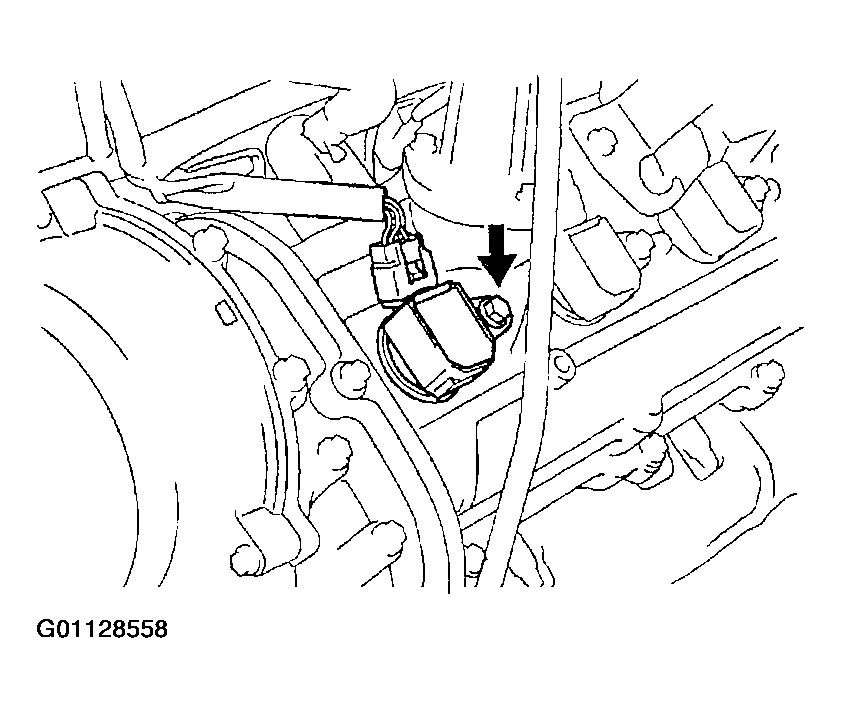

    Fig 1: Locating Ignitor Coil Bolt
    G01128558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
