Power Mirror Control System: Inspection

Inspect mirror control switch continuity .

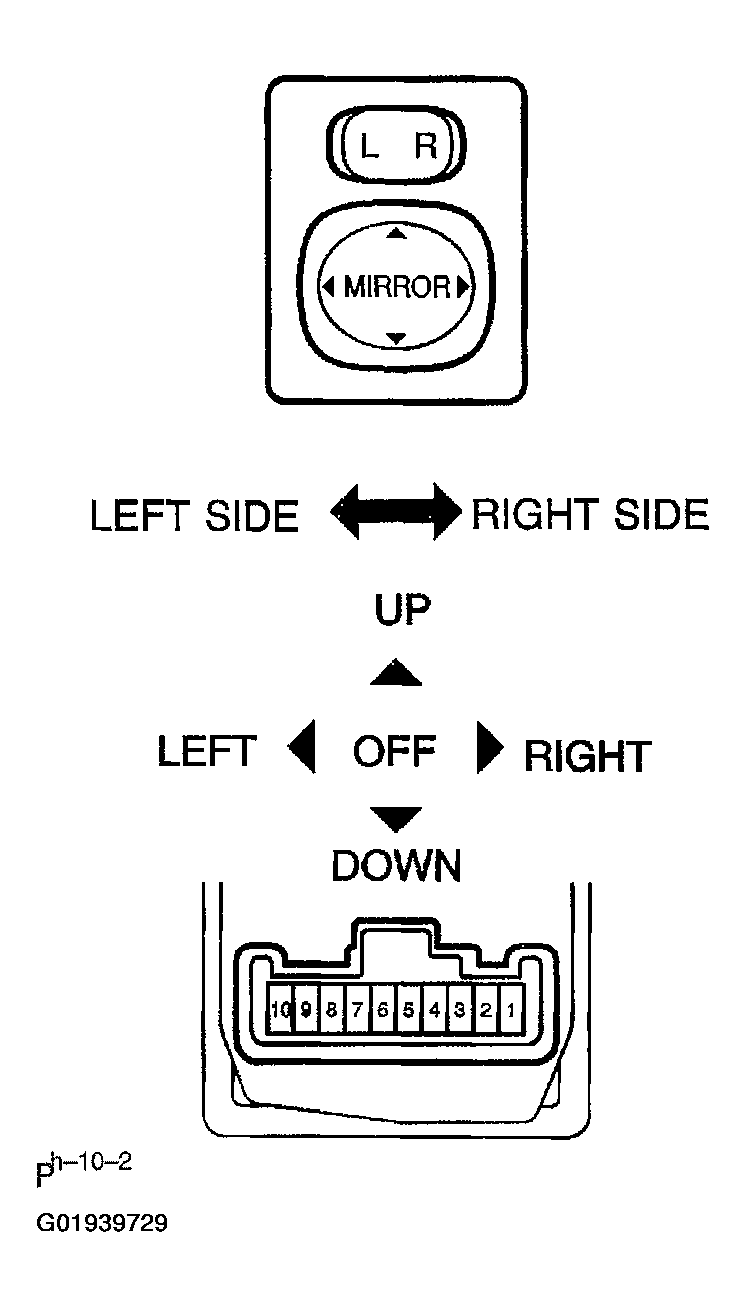

Fig 1: Identifying Mirror Switch, Position Controls & Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

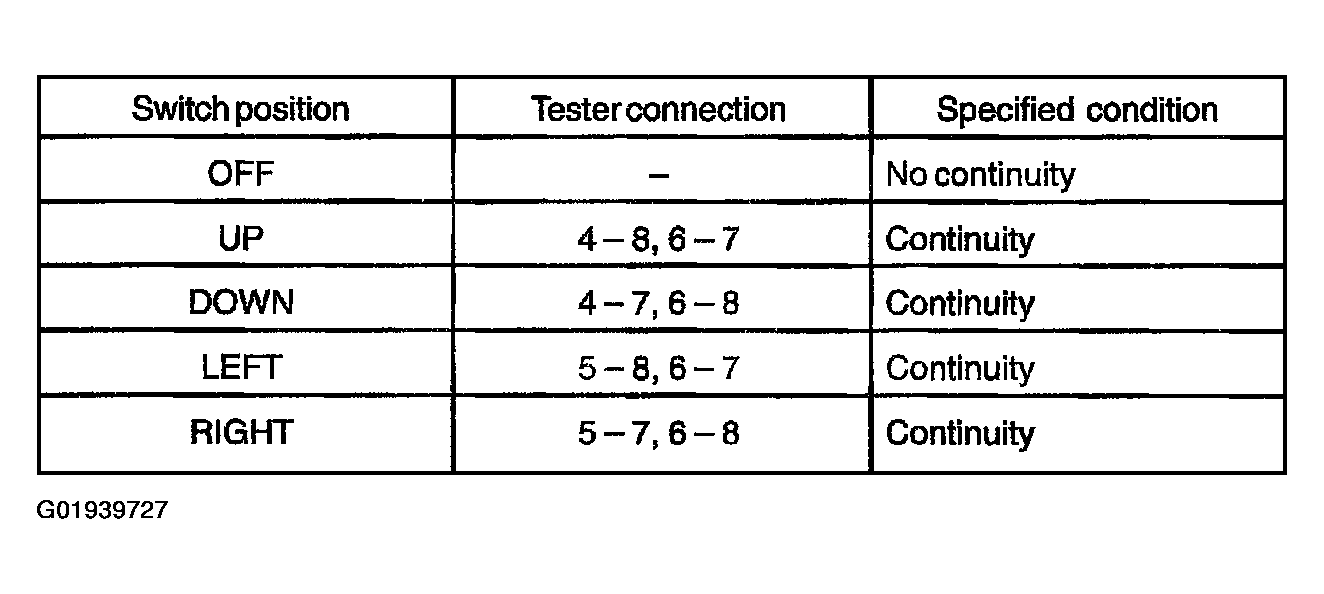

Fig 2: Left Side Mirror Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

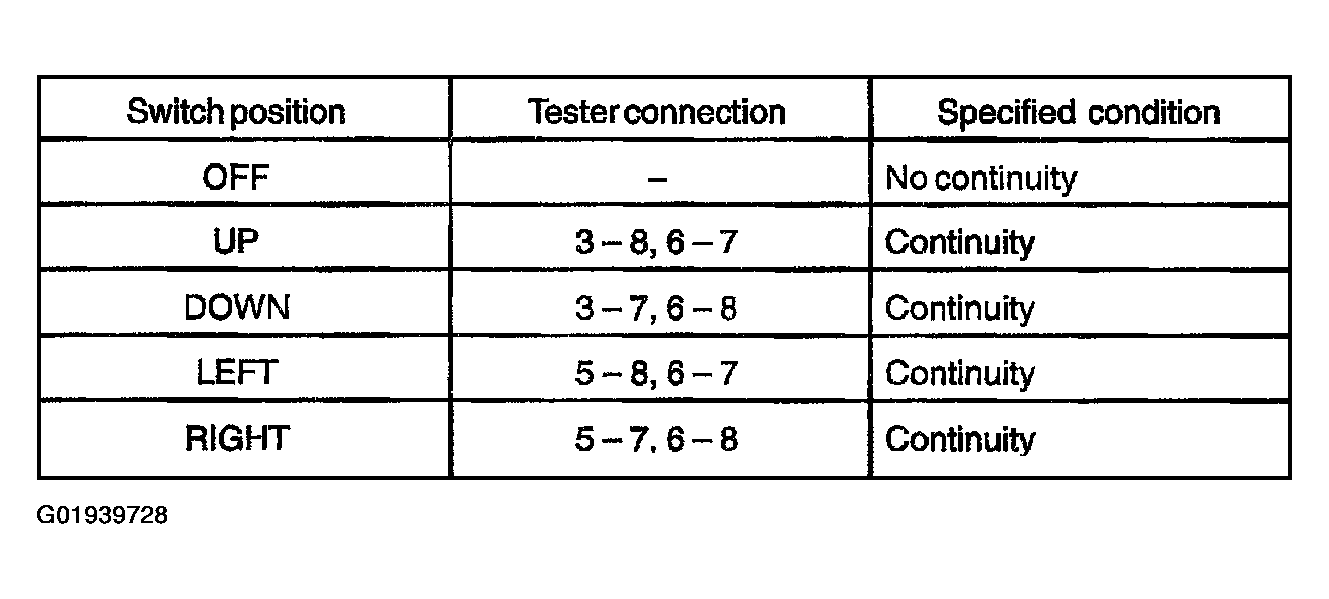

Fig 3: Right Side Mirror Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Inspect mirror motor operation .
1. Connect the positive (+) lead from the battery to terminal 2 and negative (-) lead to terminal 3, check that the mirror turns to left side.

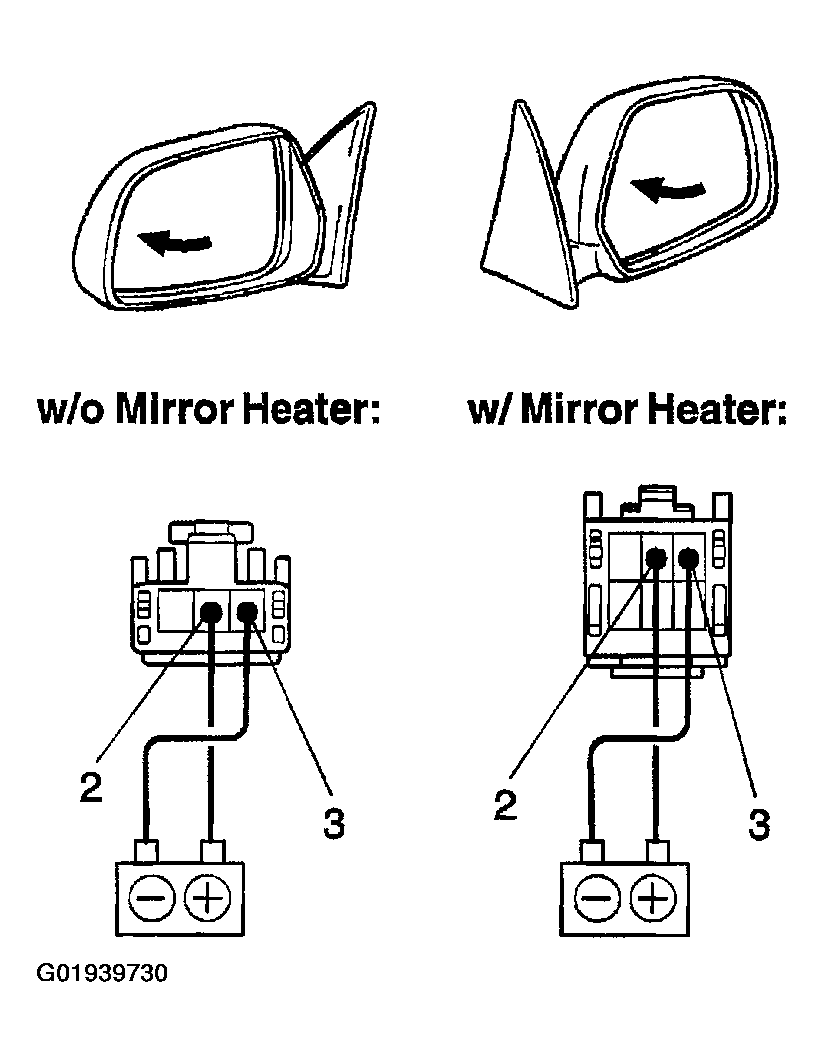

  Fig 4: Testing Mirror Motor (Left)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, check that the mirror turns to right side.

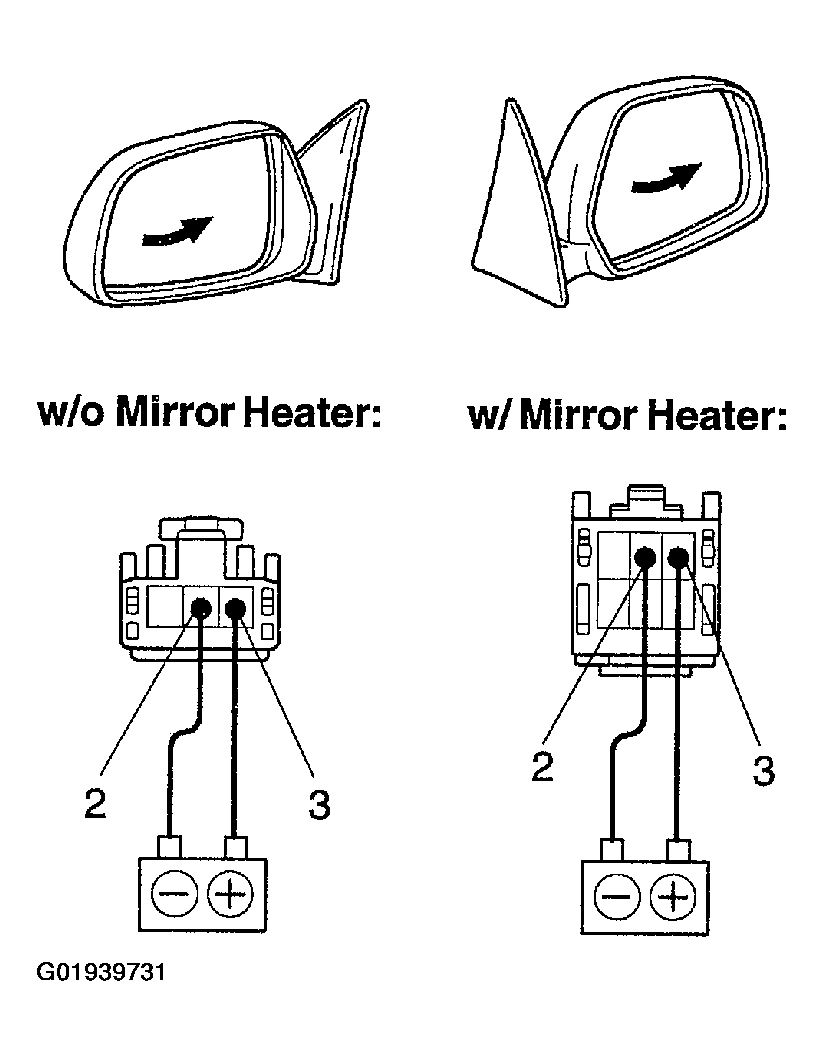

  Fig 5: Testing Mirror Motor (Right)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, check that the mirror turns upward.

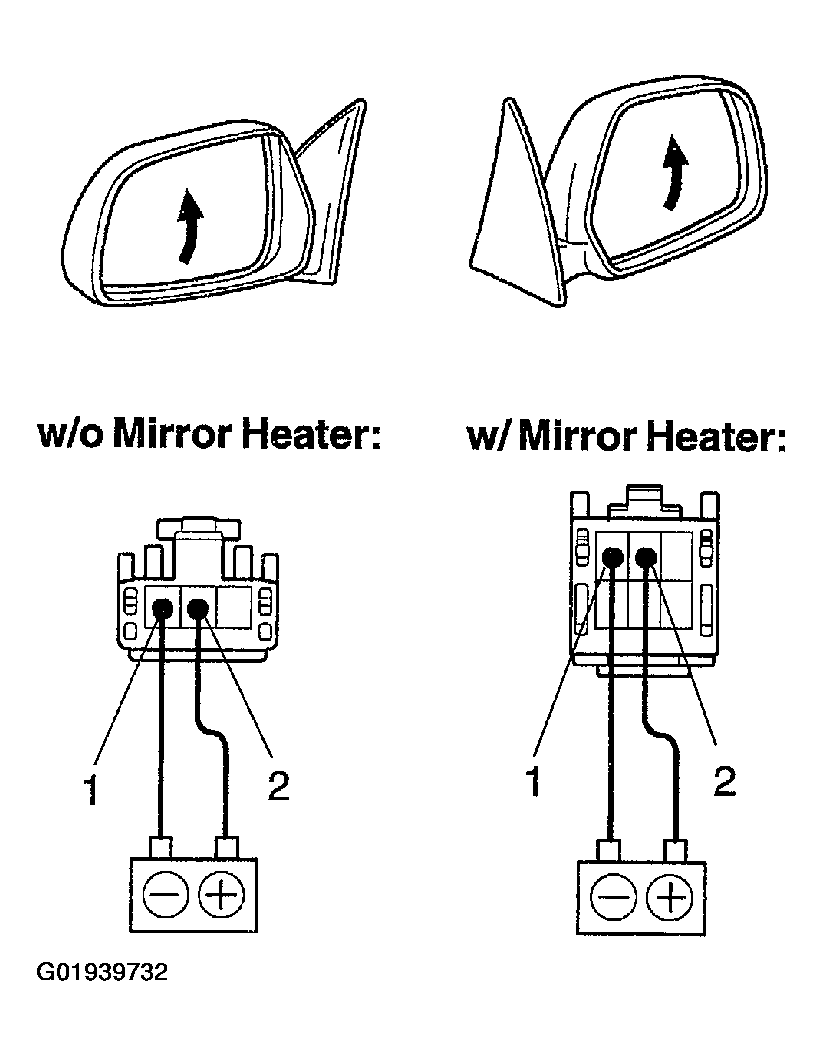

  Fig 6: Testing Mirror Motor (Up)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Reverse the polarity, check that the mirror turns downward.

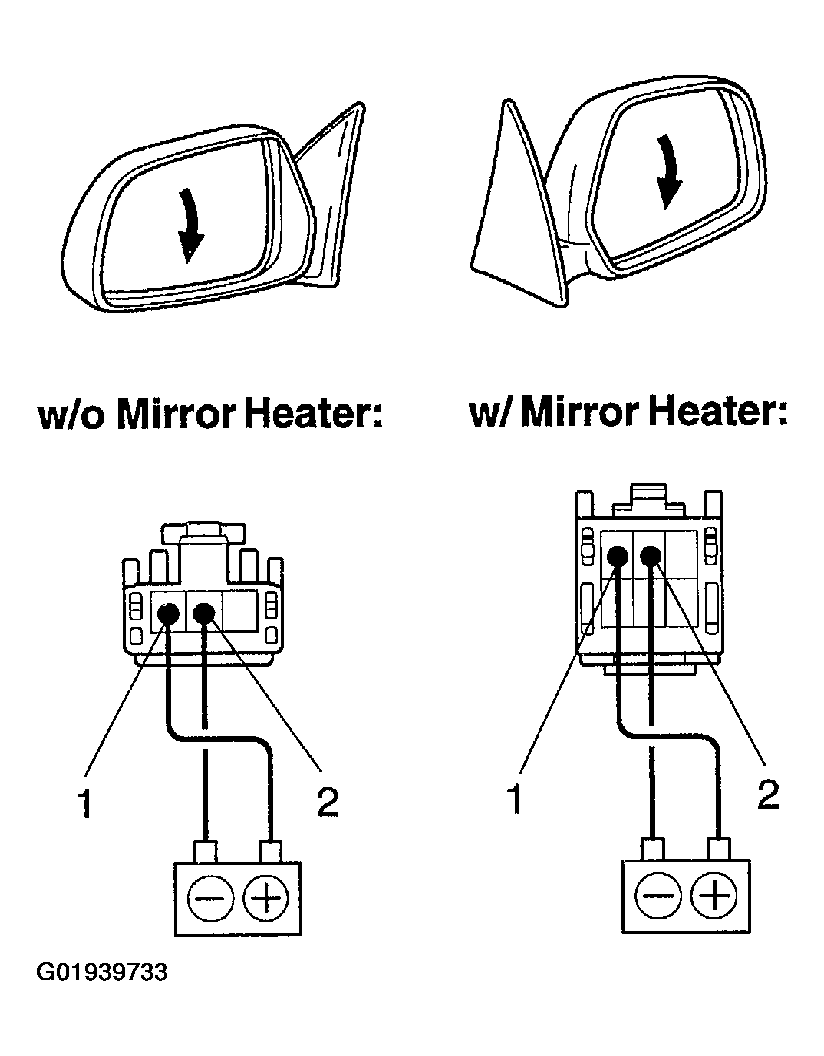

  Fig 7: Testing Mirror Motor (Down)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If operation is not as specified, replace the mirror assembly.
