Power Mirror Control System
>>
Troubleshooting
>>
Problem Symptoms
Problem Symptoms
Power mirror control system

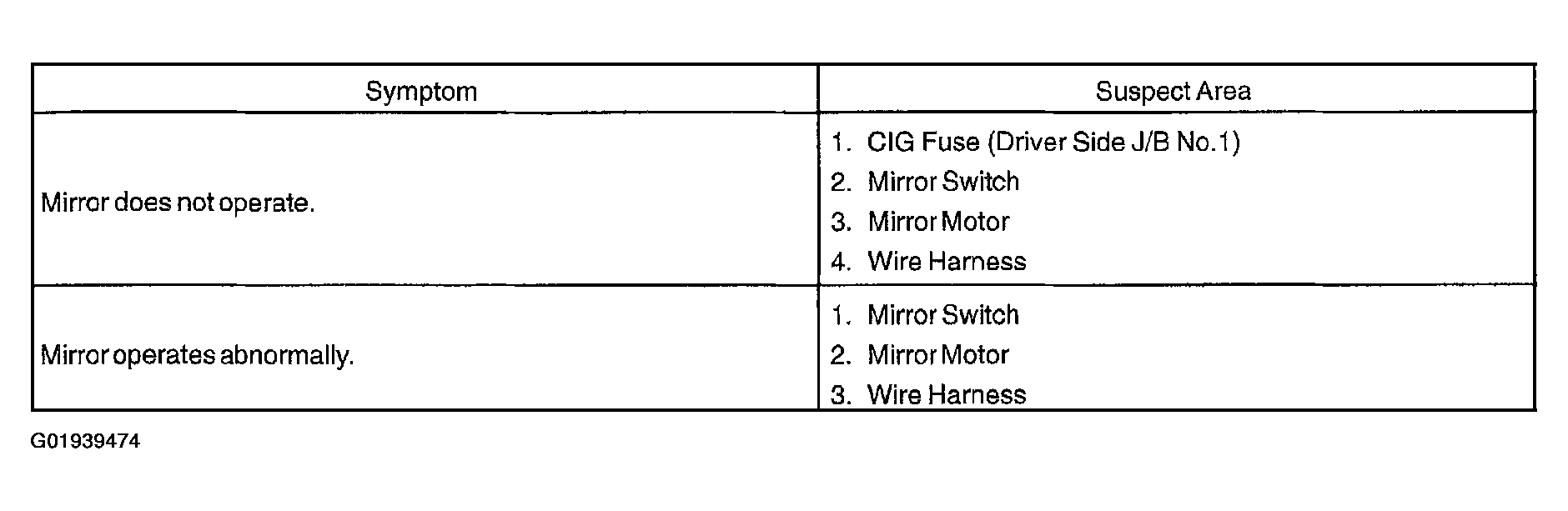

Fig 1: Isolating Power Mirror Control System Symptoms
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
