Charging Systems: Generator: Removal

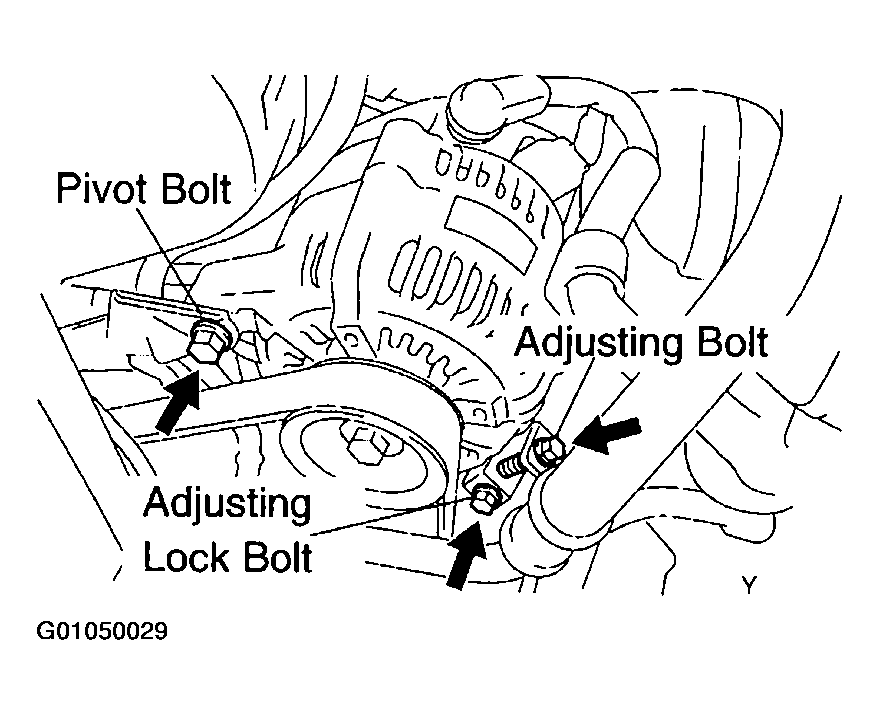

Fig 1: Removing Drive Belt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Loosen the pivot bolt, adjusting lock bolt and adjusting bolt, and remove the drive belt.

1. Torque:
   1. Pivot bolt: 56 N.m (570 kgf.cm, 41 ft.lbf)
   2. Lock bolt: 18 N.m (180 kgf.cm, 13 ft.lbf)

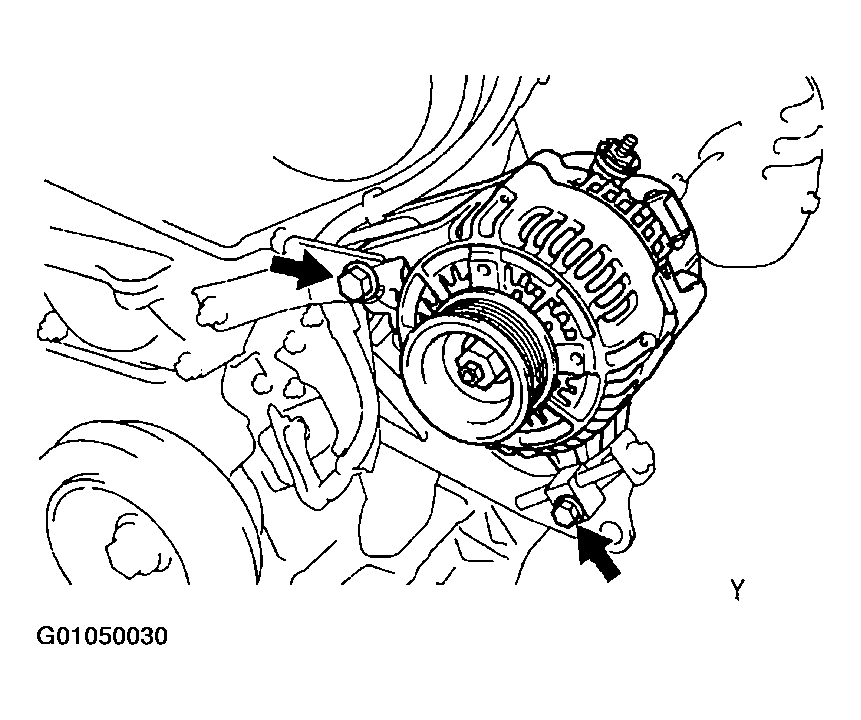

Fig 2: Removing Generator & Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the generator connector.
2. Remove the nut, and disconnect the generator wire.
3. Disconnect the wire harness from the clip.
