Problem Symptoms Table

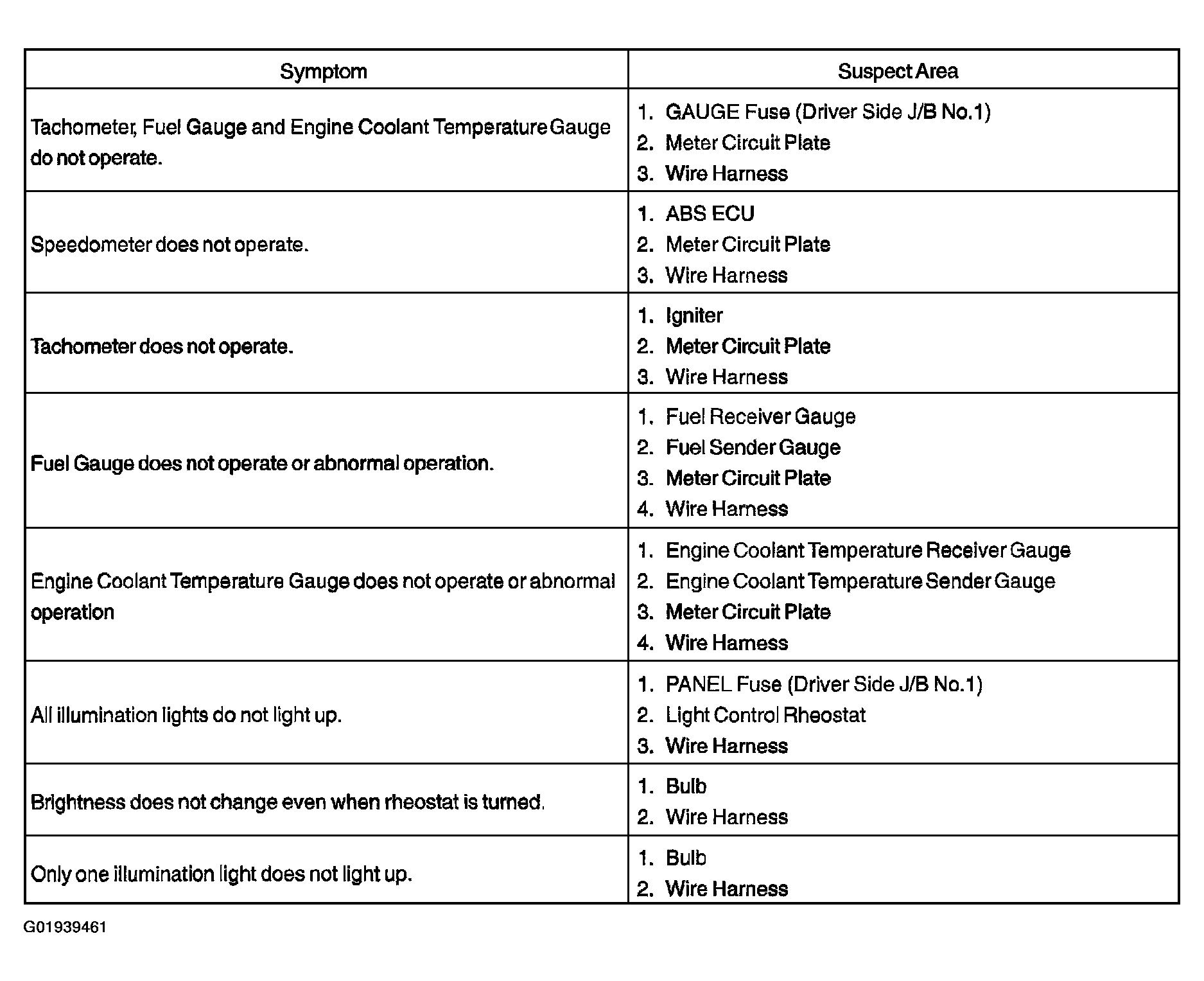

Fig 1: Combination Meter (Gauges And Illumination)
G01939461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

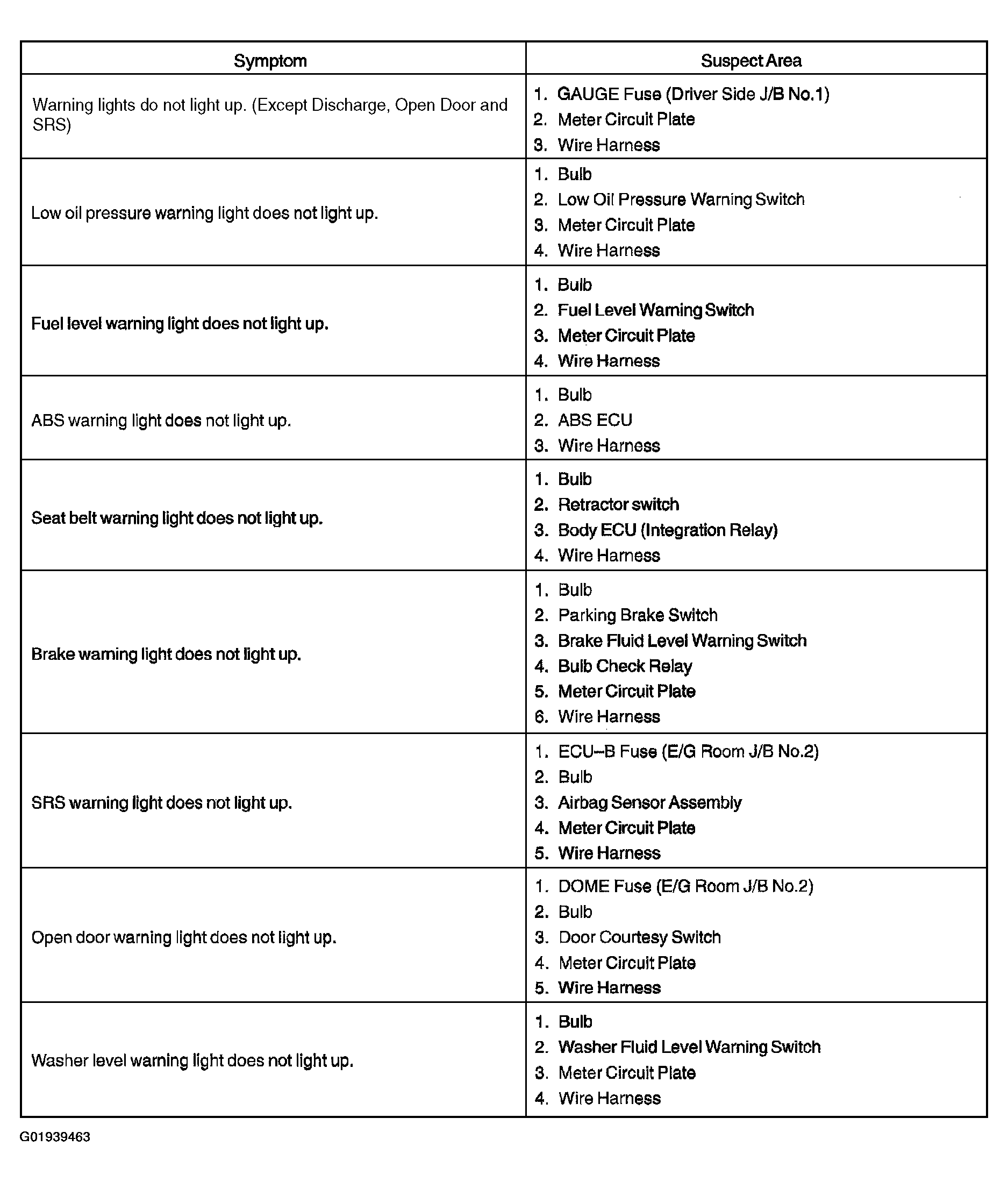

Fig 2: Combination Meter (Warning Light)
G01939463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Combination Meter (Indicator Light)
G01939464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
